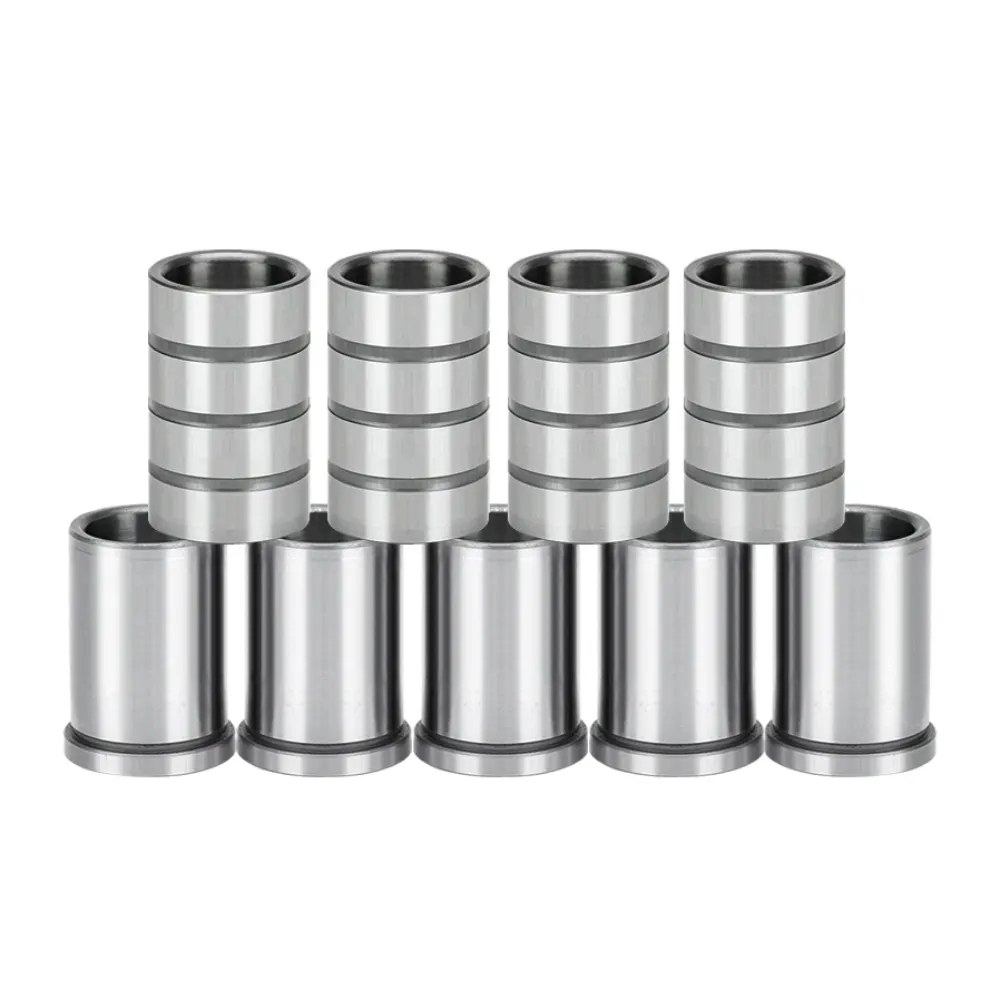

Locating Pin Guide Bushing
Locating Pin Guide Bushing is designed to support precise alignment control in mold assemblies where accurate positioning is essential. It ensures correct engagement between locating pins and mold components, helping achieve stable assembly configuration and reliable setup results. With consistent structural performance and dependable guiding characteristics, it is suitable for industrial environments that require repeatable positioning, efficient assembly processes, and long-term operational stability under continuous manufacturing conditions.
Product Description
Introduction
Locating Pin Guide Bushing is a precision positioning component used in mold systems to ensure accurate alignment between locating pins and mold base structures. It helps maintain correct assembly orientation during installation and repeated production cycles, reducing positioning errors and improving overall mold assembly accuracy. This makes it an essential element for ensuring reliable mold setup and consistent operational performance.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel, and processed through heat treatment and precision machining. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under repeated use conditions. The inner surface is finely ground to ensure smooth engagement with locating pins, supporting precise and repeatable positioning performance in industrial environments.
Locating Pin Guide Bushing is widely used in injection mold bases, stamping die alignment systems, plastic mold fixtures, die casting molds, automotive tooling, electronic assembly molds, and precision industrial equipment. It is particularly suitable for applications requiring exact positioning and high repeatability during assembly. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a reliable solution for improving alignment accuracy, reducing assembly deviation, and ensuring long-term stability in mold manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Locating Pin Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Positioning / Alignment Support |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
