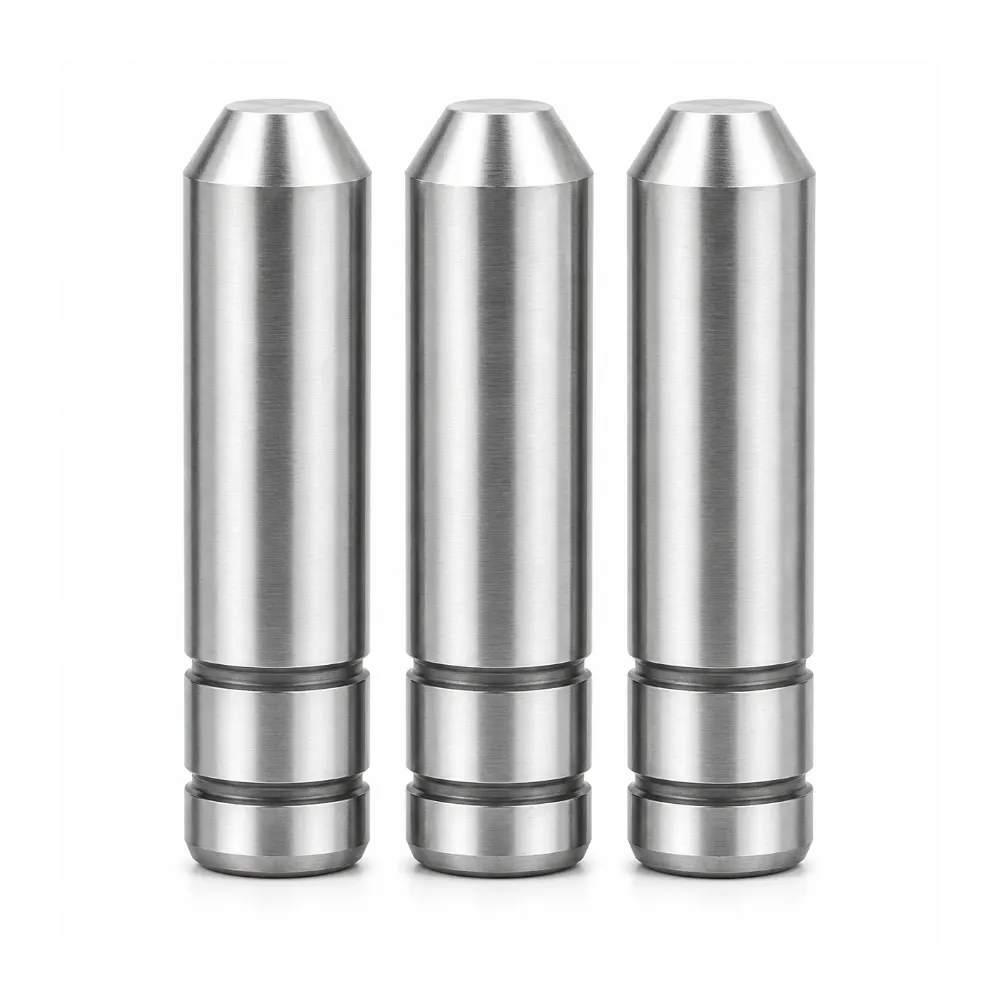

Mold Angular Guide Pin
Mold Angular Guide Pin is designed to drive and guide side-action mechanisms in injection molds requiring angled movement. It helps convert mold opening motion into controlled lateral travel, supporting accurate slide operation and dependable core positioning. Manufactured from hardened bearing steel with precision-machined surfaces, it offers excellent strength, wear resistance, and dimensional stability. This component is widely used in plastic molding applications involving undercuts, side features, and complex product structures that require precise slide-core movement.
- Handles Complex Side Core Actions: Supports molds with advanced slide mechanisms.
- Improves Slide Motion Synchronization: Helps coordinate moving mold components accurately.
- Reduces Mechanical Shock During Travel: Promotes smoother operation and durability.
- Performs Well In Mass Production: Maintains stability during continuous molding cycles.
Product Description
Introduction
Mold Angular Guide Pin is a precision mold component designed to control and guide sliding mechanisms in injection molds, side-action molds, and complex tooling systems. It converts the opening and closing motion of the mold into controlled lateral movement, allowing slide cores and side-action assemblies to operate smoothly. Accurate angular guidance helps improve molding precision, reduce component wear, and support the production of parts with undercuts, side holes, and complex geometries.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Mold Angular Guide Pin undergoes precision machining, heat treatment, grinding, and polishing processes. These manufacturing methods provide excellent hardness, dimensional stability, wear resistance, and mechanical strength. The precision-finished surface helps minimize friction between moving components while ensuring smooth and consistent operation under continuous production conditions.
Mold Angular Guide Pins are widely used in automotive molds, consumer electronics molds, medical device molds, packaging molds, household appliance molds, and industrial plastic injection tooling. Available in multiple diameters, lengths, and angle configurations, they can meet the requirements of both standard and customized mold designs. OEM and ODM manufacturing services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Mold Angular Guide Pin |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø60 mm |
| Length Range | 80 mm – 800 mm |
| Working Angle | 10°–30° Standard |
| Surface Treatment | Hard Chrome Optional |
| Straightness | ≤0.005 mm/100 mm |
| Installation Type | Mold Mounted |
| Precision Grade | High Precision |
| Operating Condition | Continuous Mold Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Supports Complex Part Geometry
Enables reliable side-core movement for molding undercuts, side openings, and intricate product features that cannot be formed by straight actions.
Optimized Sliding Mechanism Performance
Helps coordinate slide movement accurately, improving synchronization between mold components and enhancing overall molding efficiency during operation.
Reduces Impact On Moving Components
Controlled angular motion helps minimize sudden mechanical stress, supporting smoother operation and extending the service life of related parts.
Suitable For High-Volume Production
Designed to maintain consistent guiding performance during continuous molding cycles, making it suitable for demanding mass-production environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Mold Angular Guide Pin?
A Mold Angular Guide Pin is a precision mold component used to guide and drive slide cores or side-action mechanisms in injection molds.
What is the function of a Mold Angular Guide Pin?
Its main function is to convert mold opening and closing movement into controlled lateral motion, allowing slide components to move accurately.
What materials are commonly used for Mold Angular Guide Pins?
Mold Angular Guide Pins are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, wear resistance, and long service life.
Can Mold Angular Guide Pins be customized?
Yes. Custom diameters, lengths, angles, tolerances, surface treatments, and special specifications can be produced according to customer drawings and mold requirements.
Where are Mold Angular Guide Pins commonly used?
They are widely used in injection molds, automotive plastic molds, medical device molds, consumer electronics molds, packaging molds, and side-action mold systems requiring slide-core movement.
