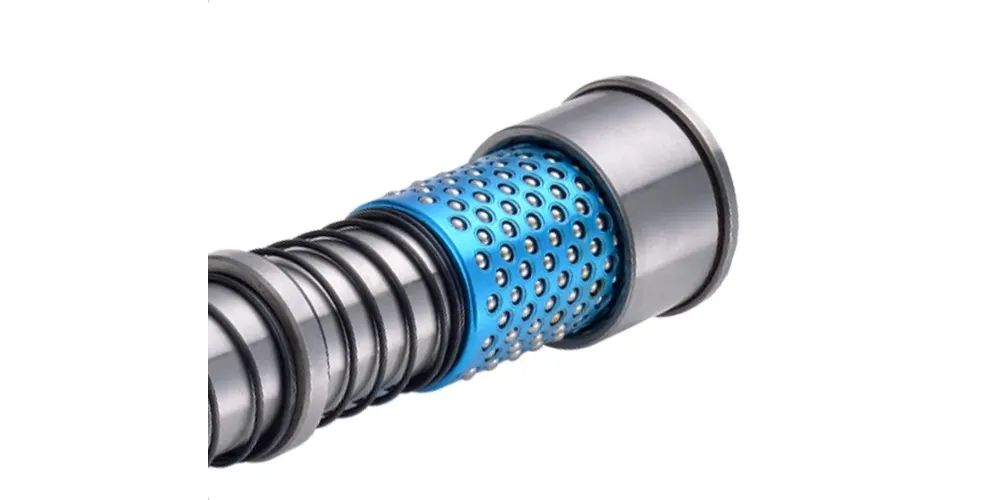

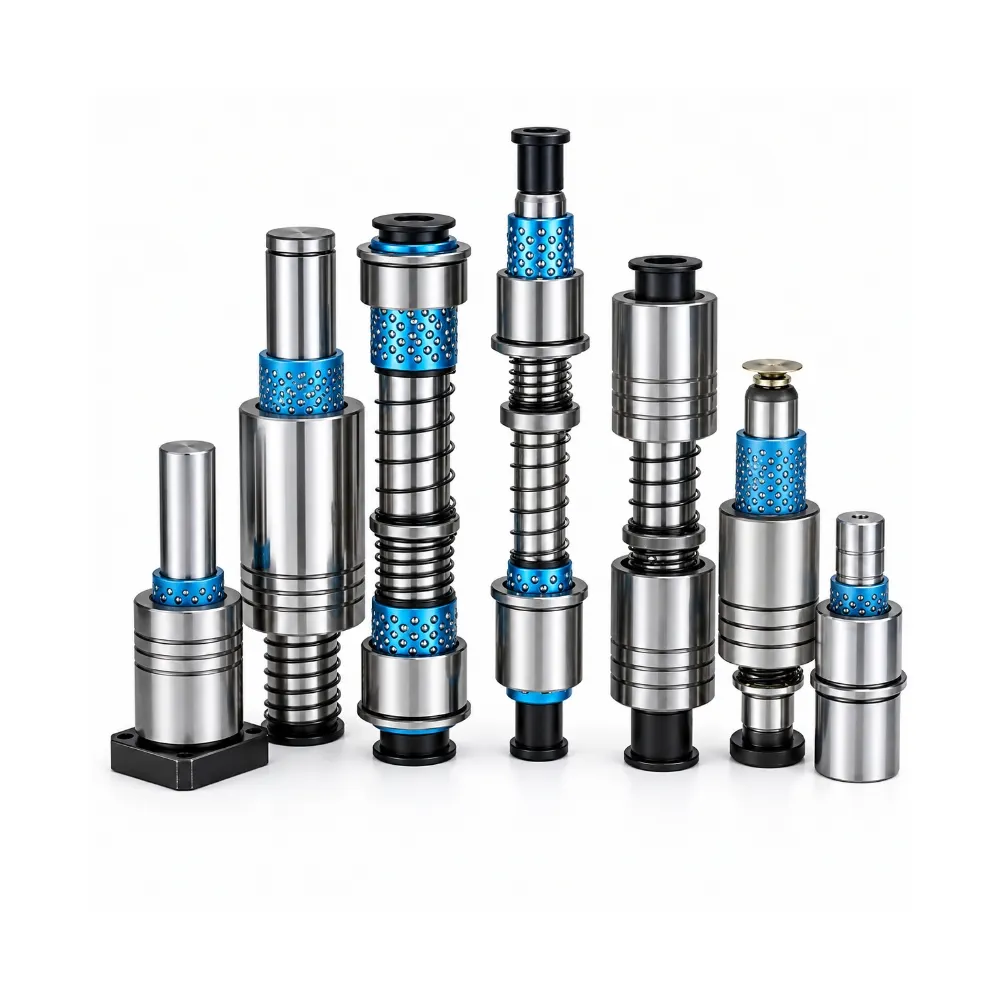

Mold Base Guide Pillar
Mold Base Guide Pillar is designed to provide dependable guidance and positioning within mold base assemblies used in industrial manufacturing. Its precision-machined structure helps ensure accurate plate alignment while supporting smooth and controlled mold movement. Produced from high-strength bearing steel and treated for enhanced durability, it offers excellent resistance to wear and deformation. This guide pillar is widely used in injection molds, tooling systems, and precision mold bases where stable operation and long-lasting performance are essential.
- Supports Large Mold Base Assemblies: Provides reliable guidance for bigger structures.
- Maintains Accurate Plate Matching: Helps improve assembly precision and consistency.
- Resists Long Term Industrial Wear: Enhances durability during continuous production.
- Improves Overall Mold Running Stability: Supports smooth and dependable mold operation.
Product Description
Introduction
Mold Base Guide Pillar is a precision guiding component designed for mold bases, injection molds, stamping dies, and industrial tooling systems. As a critical element of the mold alignment system, it ensures accurate positioning between mold plates during opening and closing operations. Stable guidance helps improve molding precision, reduce component wear, and maintain consistent product quality throughout long production cycles.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Mold Base Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes to achieve excellent hardness, dimensional stability, and wear resistance. The precision-ground surface ensures smooth interaction with guide bushings, minimizing friction and supporting reliable mold movement. Its hardened construction is engineered to withstand continuous industrial operation while maintaining long-term guiding accuracy.
Mold Base Guide Pillars are widely used in plastic injection molds, automotive molds, consumer electronics molds, medical device molds, packaging molds, and industrial mold base systems. Available in a wide range of diameters, lengths, and tolerance grades, they can accommodate both standard mold bases and customized tooling projects. OEM and ODM manufacturing services are available to meet specific technical requirements and design specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Mold Base Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø16 mm – Ø120 mm |
| Length Range | 80 mm – 1200 mm |
| Guiding Type | Mold Base Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Strengthens Mold Base Stability
Provides dependable structural support between mold plates, helping maintain assembly stability and improving overall performance in demanding manufacturing environments.
Optimized For Large Mold Systems
Suitable for medium and large mold bases requiring reliable guidance, accurate positioning, and consistent operation throughout extended production schedules.
Improves Assembly Accuracy
Supports precise matching of mold components, helping reduce installation deviations and contributing to smoother mold setup and maintenance procedures.
Reliable Performance Under Continuous Use
Engineered for long-term industrial applications, maintaining guiding effectiveness and dimensional consistency during repeated production and tooling operations.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Mold Base Guide Pillar?
A Mold Base Guide Pillar is a precision guiding component used in mold bases to ensure accurate alignment and smooth movement between mold plates during operation.
What is the function of a Mold Base Guide Pillar?
Its main function is to maintain mold alignment, support stable plate movement, reduce wear between components, and improve overall mold performance.
What materials are commonly used for Mold Base Guide Pillars?
Mold Base Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, excellent wear resistance, and long service life.
Can Mold Base Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and special specifications can be manufactured according to customer drawings and technical requirements.
Where are Mold Base Guide Pillars commonly used?
They are widely used in injection molds, mold bases, automotive molds, medical device molds, packaging molds, consumer electronics molds, and industrial tooling systems.
