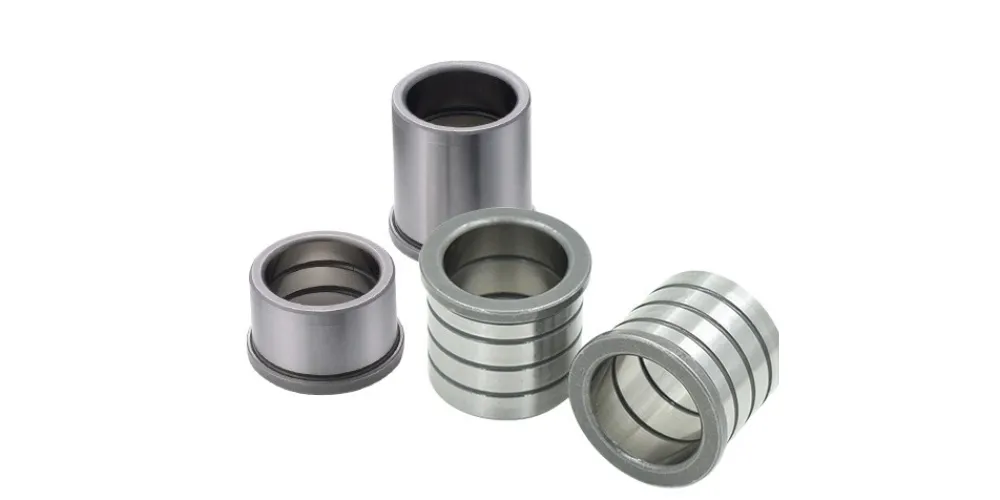

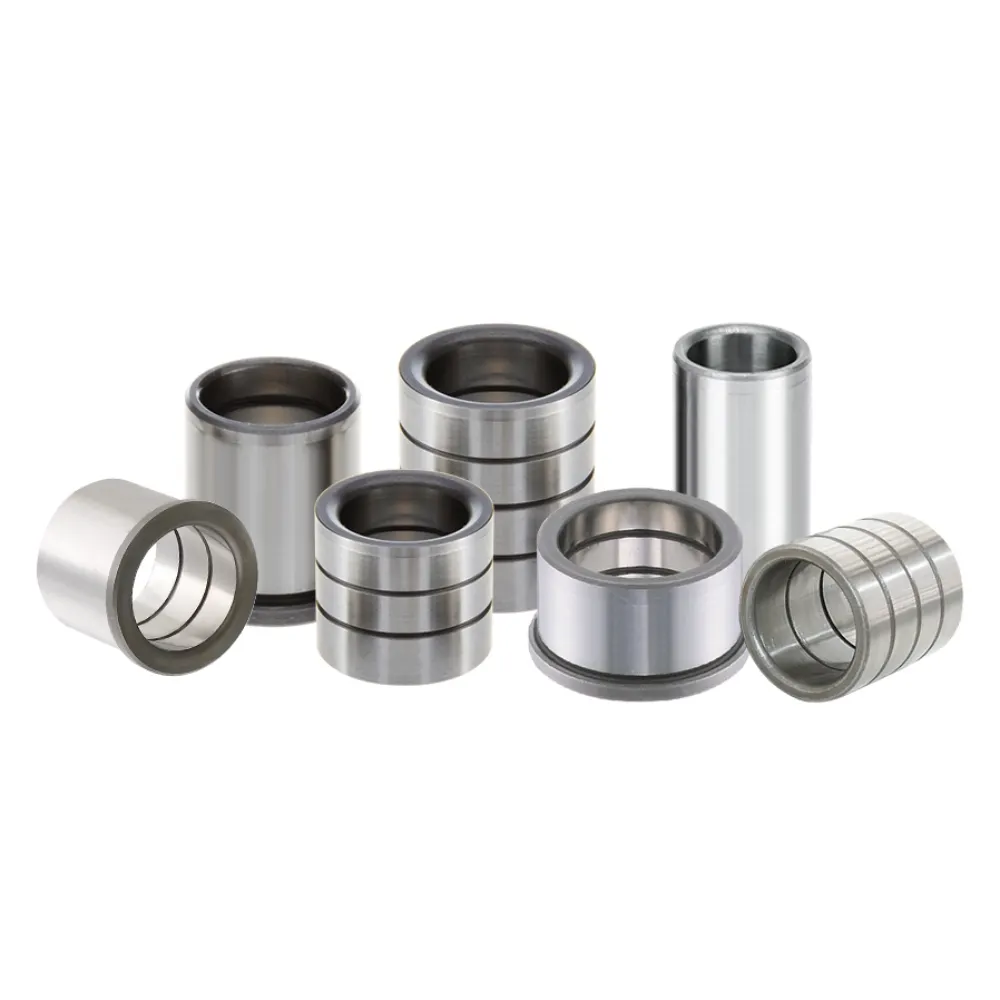

Mold Ejector Guide Bushing
Mold Ejector Guide Bushing is developed to support precise guiding performance in ejector plate systems within mold assemblies. It ensures controlled and stable movement during mold opening and closing, helping maintain accurate ejector positioning under repetitive operation conditions. With reliable structural design and consistent functional behavior, it improves system efficiency and reduces mechanical instability. This component is suitable for industrial mold applications requiring smooth operation, stable alignment, and dependable long-term performance in continuous production environments.
- Smooth Ejector Plate Guidance: ensures stable movement control
- Lower Component Wear Rate: extends service lifespan
- Enhanced System Coordination Accuracy: improves alignment consistency
- Reliable High Cycle Performance: supports continuous production use
Product Description
Introduction
Mold Ejector Guide Bushing is a precision component designed to support accurate and stable movement of the ejector system in mold structures. It ensures proper alignment between ejector plates and guide pillars during mold opening and closing cycles, helping maintain smooth and controlled ejection performance. This improves overall mold reliability and reduces operational deviation in high-frequency production environments.
The product is manufactured from high-quality bearing steel or alloy steel and undergoes heat treatment and precision grinding processes. These manufacturing techniques provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous working conditions. The finely finished inner surface ensures smooth movement of ejector components, reducing friction and mechanical resistance during repetitive operation cycles.
Mold Ejector Guide Bushing is widely used in injection mold ejector systems, plastic mold bases, stamping dies, die casting molds, automotive component molds, electronic product molds, and industrial tooling equipment. It is particularly suitable for applications requiring stable ejector guidance and long-term operational durability. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a reliable solution for improving ejector accuracy, reducing maintenance needs, and ensuring consistent performance in modern mold manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Mold Ejector Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Ejector System Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Stable Ejector Movement Control
Ensures smooth guiding of ejector plates during mold operation, maintaining consistent motion accuracy throughout repeated production cycles.
Reduced System Friction Wear
Precision finished surfaces minimize contact resistance, decreasing wear on ejector components and improving operational efficiency in long-term use.
Improved Alignment Synchronization
Maintains precise coordination between ejector plate and guide pillar systems, reducing deviation during high-speed mold opening and closing.
Extended Operational Durability
Heat-treated material structure enhances resistance to fatigue and deformation, ensuring reliable performance under continuous industrial working conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Mold Ejector Guide Bushing used for?
It is used to guide and support the ejector plate system in molds, ensuring smooth and accurate movement during operation.
2. What is the main function of this component?
Its main function is to maintain alignment between ejector plates and guide pillars, reducing friction and misalignment.
3. Where is it commonly applied?
It is widely used in injection molds, stamping dies, die casting molds, and other precision tooling systems.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for durability and accuracy.
5. Can it be customized?
Yes, OEM customization is available, including size, structure, tolerance, and material based on customer requirements.
