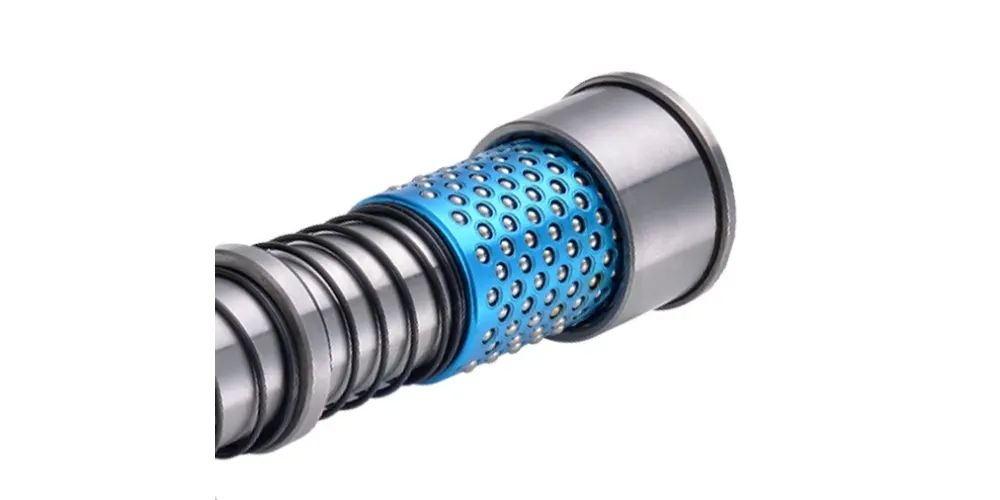

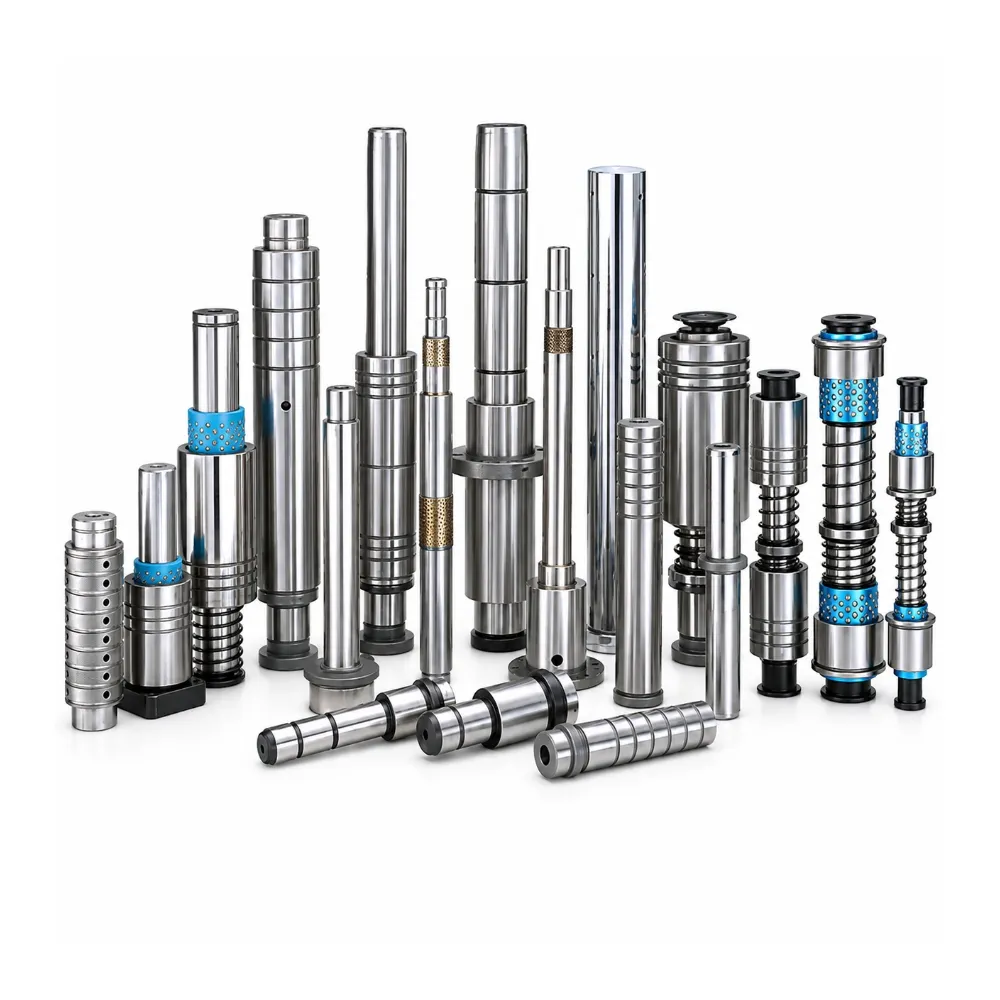

Mold Guide Pillar
Mold Guide Pillar is a key alignment component used to ensure accurate movement within mold and die assemblies. It helps guide moving sections along a controlled path, improving operational stability and reducing positioning errors during production. Manufactured from high-quality hardened steel and finished with precision grinding technology, it offers excellent strength, durability, and resistance to wear. Suitable for a wide range of molding and tooling applications, it provides dependable guiding performance and supports long-term manufacturing efficiency.
- Works Across Diverse Mold Applications: Suitable for multiple tooling and die systems.
- Preserves Accuracy Through Extended Usage: Maintains alignment over long operating periods.
- Handles Continuous Industrial Contact Reliably: Resists wear in demanding production environments.
- Simplifies Routine Mold Service Tasks: Enables easier replacement and maintenance procedures.
Product Description
Introduction
Mold Guide Pillar is a fundamental precision component used in mold bases, injection molds, stamping dies, and industrial tooling systems. It provides accurate guidance and alignment between moving mold plates, ensuring smooth opening and closing actions throughout the production process. By maintaining precise positioning, the guide pillar helps reduce component wear, improve mold stability, and enhance overall manufacturing quality.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Mold Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes. These manufacturing techniques ensure excellent hardness, dimensional accuracy, wear resistance, and long-term durability. The precision-ground surface allows smooth interaction with guide bushings, minimizing friction while maintaining reliable guiding performance under continuous industrial operation.
Mold Guide Pillars are widely used in plastic injection molds, stamping dies, automotive molds, medical device molds, electronic product molds, packaging molds, and precision tooling assemblies. Available in multiple diameters, lengths, and tolerance grades, they are suitable for both standard mold structures and customized engineering projects. OEM and ODM services are available to meet specific technical requirements and application needs.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Mold Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 50 mm – 1500 mm |
| Guiding Type | Mold Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Universal Compatibility Across Mold Types
Designed for various mold and die systems, providing dependable guidance for injection molding, stamping operations, and precision tooling applications.
Maintains Long-Term Dimensional Accuracy
Precision manufacturing helps preserve alignment performance over extended service periods, supporting consistent production quality and reliable tooling operation.
Strong Resistance To Industrial Wear
Hardened steel construction withstands continuous mechanical contact, helping maintain guiding effectiveness in demanding manufacturing environments.
Supports Efficient Mold Maintenance
Standardized design allows easier replacement and servicing, helping reduce maintenance complexity and improve production uptime in industrial facilities.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Mold Guide Pillar?
A Mold Guide Pillar is a precision guiding component used in molds and dies to ensure accurate alignment and smooth movement between mold plates.
What is the function of a Mold Guide Pillar?
Its primary function is to maintain positioning accuracy, reduce movement deviation, support stable mold operation, and improve product consistency.
What materials are commonly used for Mold Guide Pillars?
Mold Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, wear resistance, and long service life.
Can Mold Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, mounting styles, and special specifications can be produced according to customer drawings.
Where are Mold Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, automotive molds, medical device molds, electronic product molds, packaging molds, and industrial tooling systems.
