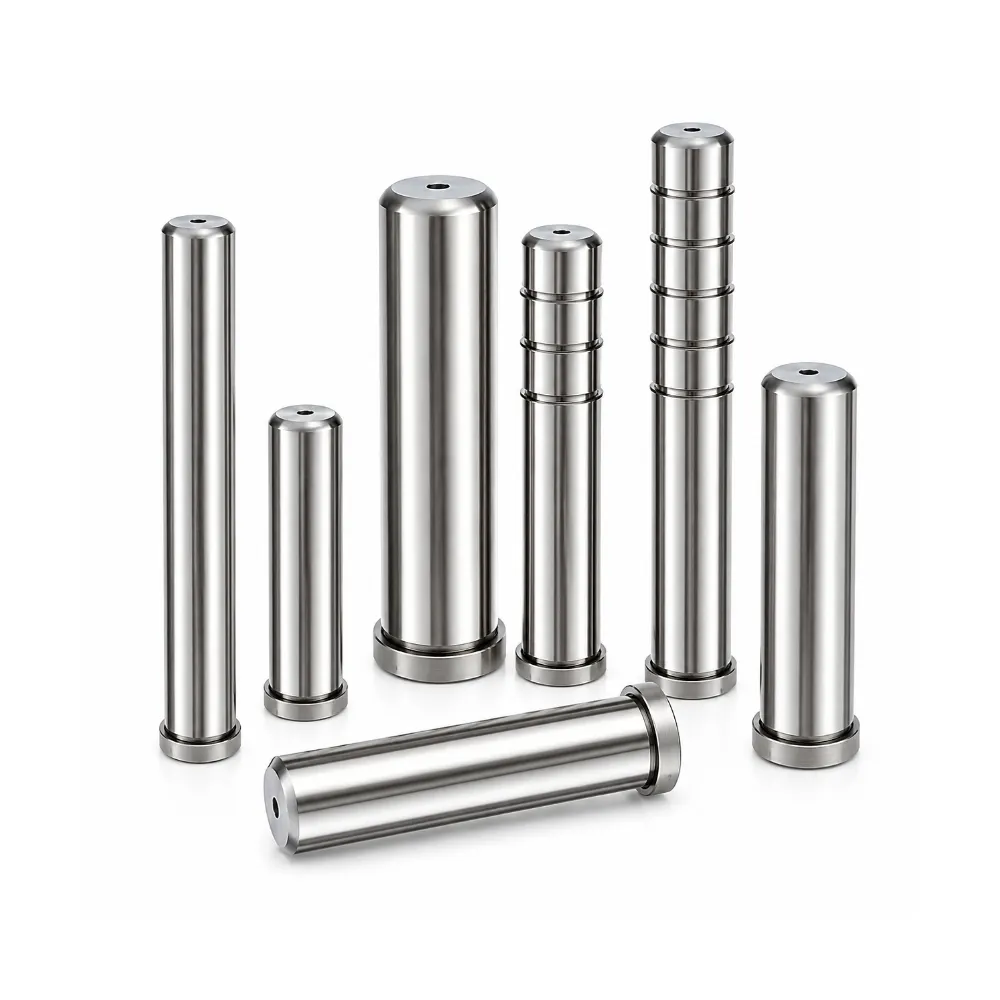

Rear Guide Pillar
Rear Guide Pillar is specially designed for rear-position guidance applications in molds and tooling systems requiring dependable alignment control. Installed at strategic support locations, it helps maintain accurate plate coordination and smooth mechanical movement during operation. Manufactured from hardened bearing steel and finished with precision grinding technology, it provides outstanding durability, rigidity, and resistance to wear. This guide pillar is widely used in mold bases, precision tooling assemblies, and industrial equipment where stable rear-end guidance is critical to performance.
- Boosts Rear Assembly Stability: Improves support and structural balance.
- Improves Plate Alignment Accuracy: Reduces positioning variation during operation.
- Handles Repetitive Operating Cycles: Maintains performance through frequent movement.
- Supports Precision Tooling Systems: Suitable for high-accuracy applications.
Product Description
Introduction
Rear Guide Pillar is a precision mold guiding component designed for rear-position alignment systems in injection molds, mold bases, stamping dies, and industrial tooling assemblies. Installed at the rear section of the mold structure, it helps maintain accurate positioning between moving plates and supporting components. Its reliable guiding function improves assembly stability, reduces misalignment, and contributes to smooth mold operation throughout repeated production cycles.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Rear Guide Pillar is processed through precision turning, heat treatment, cylindrical grinding, and polishing procedures. These manufacturing processes provide excellent hardness, dimensional accuracy, wear resistance, and long-term durability. The precision-finished surface ensures smooth interaction with matching guide bushings while minimizing friction and mechanical wear.
Rear Guide Pillars are widely used in automotive molds, plastic injection molds, stamping dies, mold bases, consumer electronics molds, medical device molds, and industrial automation tooling. Available in various diameters, lengths, and precision grades, they can satisfy both standard mold requirements and customized engineering projects. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Rear Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø12 mm – Ø120 mm |
| Length Range | 80 mm – 1500 mm |
| Guiding Type | Rear Position Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhances Rear Section Stability
Provides dependable support at the rear guiding position, helping maintain structural balance and improve overall mold assembly performance.
Improves Plate Matching Accuracy
Helps ensure accurate engagement between mold plates, reducing positioning variation and supporting consistent manufacturing results.
Suitable For Repeated Production Cycles
Engineered to maintain reliable guiding performance under frequent opening and closing operations in industrial environments.
Supports Precision Tooling Assemblies
Designed for high-accuracy mold and tooling systems where controlled movement and dependable alignment are essential for productivity.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Rear Guide Pillar?
A Rear Guide Pillar is a precision guiding component installed at the rear section of a mold or tooling assembly to provide accurate alignment and stable movement.
What is the function of a Rear Guide Pillar?
Its primary function is to maintain rear-position guidance, improve assembly stability, reduce alignment errors, and support smooth mold operation.
What materials are commonly used for Rear Guide Pillars?
Rear Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, excellent wear resistance, and long service life.
Can Rear Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting methods, surface treatments, and special specifications can be manufactured according to customer drawings.
Where are Rear Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, mold bases, automotive molds, electronic product molds, medical device molds, and industrial tooling systems.
