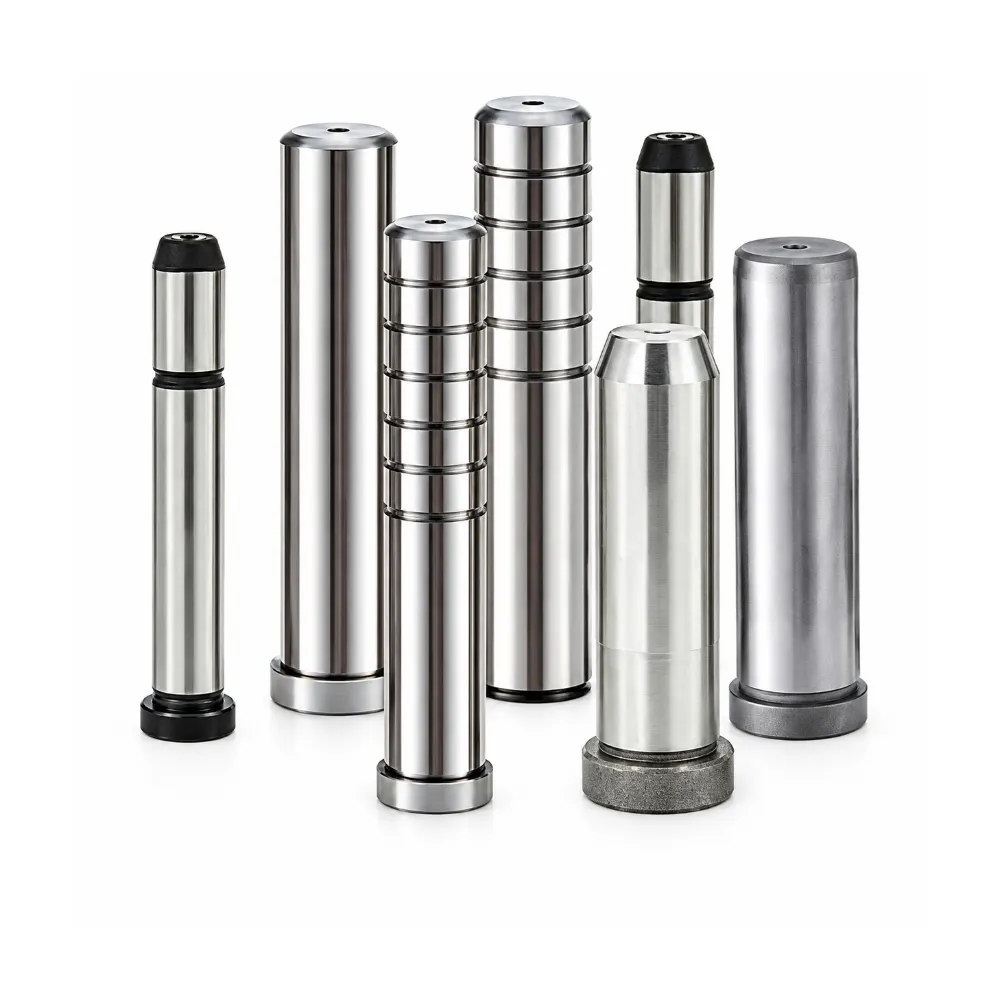

Shoulder Guide Pillar
Shoulder Guide Pillar is a specialized mold guiding component designed to provide accurate support and controlled movement within tooling assemblies. The shoulder section acts as a reliable positioning reference, enhancing installation precision and operational consistency. Manufactured through precision machining and hardening processes, it offers excellent strength, durability, and resistance to mechanical wear. Widely used in stamping dies, injection molds, and automated production equipment, this component helps improve mold stability, extend tooling lifespan, and maintain consistent manufacturing quality.
- Precise Location: Provides accurate reference for mold assembly
- Lower Upkeep: Helps reduce servicing and replacement needs
- Impact Durable: Handles repeated shock and forming forces
- Universal Fit: Integrates with various mold base systems
Product Description
Introduction
Shoulder Guide Pillar is a precision mold guiding component designed with an integrated shoulder structure that provides accurate positioning and reliable support in mold assemblies. The shoulder section serves as a locating feature, helping maintain precise installation and improving alignment performance between moving mold components. It is widely used in stamping dies, injection molds, and precision tooling systems.
Manufactured from premium-grade alloy steel such as SUJ2, SKD11, or equivalent materials, the shoulder guide pillar undergoes precision grinding and heat treatment processes to achieve excellent hardness and dimensional stability. The hardened surface enhances wear resistance and minimizes friction during operation, ensuring smooth movement and extended service life in demanding production environments.
Designed for high-precision industrial applications, the shoulder guide pillar delivers stable guiding performance under repeated cycles and heavy loads. Its robust construction helps improve mold accuracy, reduce maintenance requirements, and increase manufacturing efficiency. Custom dimensions, materials, and surface treatments are available to meet specific tooling and mold system requirements.
Specifications
| Item | Specification |
|---|---|
| Product Name | Shoulder Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 |
| Hardness | HRC 58–62 |
| Surface Treatment | Polishing / Hard Chrome Plating |
| Precision Grade | Precision Ground |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 60mm |
| Length Range | 20mm – 600mm |
| Straightness | ≤0.01mm/100mm |
| Tolerance | Custom Available |
| Custom Service | OEM & ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Accurate Shoulder Positioning
The integrated shoulder structure provides precise locating functionality, helping maintain correct installation dimensions and improving assembly consistency across various mold and tooling applications.
Reduced Maintenance Costs
Its durable construction minimizes component wear and operational issues, reducing maintenance frequency and lowering long-term tooling costs in continuous production environments.
Excellent Impact Resistance
Engineered to withstand repeated mechanical impact, the guide pillar maintains structural integrity and dependable performance during demanding stamping and forming operations.
Broad System Compatibility
Designed to fit a wide range of mold base configurations, it supports easy integration into standard tooling systems while maintaining reliable guiding performance.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a shoulder guide pillar used for?
A shoulder guide pillar is used to provide accurate guidance and positioning in mold assemblies, ensuring stable alignment during stamping, molding, and forming operations.
Q2: What is the advantage of the shoulder design?
The shoulder acts as a positioning reference point, improving installation accuracy, load distribution, and overall mold assembly stability.
Q3: Which materials are commonly used for shoulder guide pillars?
They are typically manufactured from SUJ2, SKD11, SCM440, or other hardened alloy steels to achieve high strength and wear resistance.
Q4: Can shoulder guide pillars be customized?
Yes. Diameter, length, hardness, surface treatment, and tolerance specifications can be customized according to customer drawings and application requirements.
Q5: What industries commonly use shoulder guide pillars?
They are widely used in metal stamping, plastic injection molding, automotive tooling, precision die manufacturing, and industrial automation equipment.
