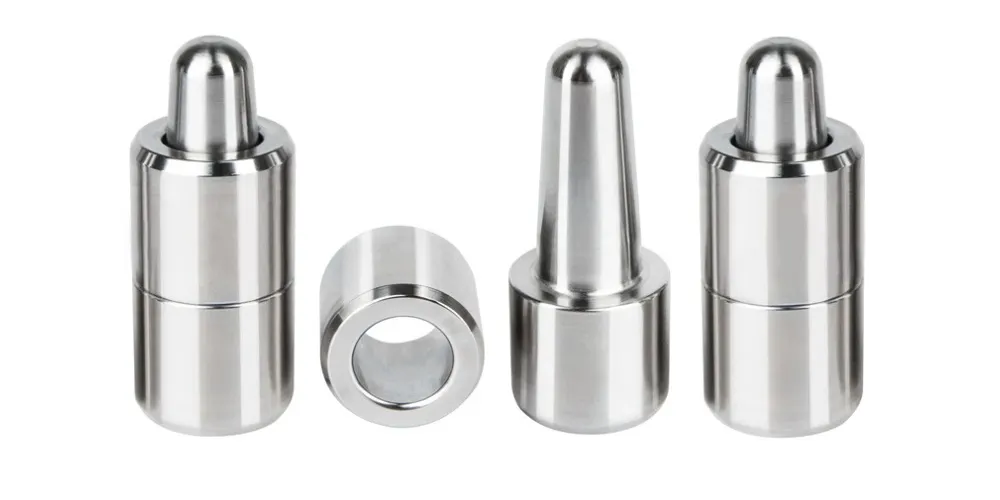

Silicone Mold Guide Post
Silicone Mold Guide Post is designed to provide accurate guidance and dependable mold positioning in rubber and elastomer molding applications. Manufactured from hardened bearing steel with precision grinding technology, it offers excellent resistance to wear, deformation, and long-term operational stress. The high-precision guiding surface supports smooth mold movement and consistent cavity alignment during production.
- Optimized For Rubber Molding Processes: Designed for demanding elastomer production environments.
- Improves Dimensional Product Consistency: Supports accurate cavity matching and alignment.
- Handles Heavy Duty Mold Operations: Performs reliably under continuous production loads.
- Reduces Long Term Maintenance Costs: Minimizes wear and service requirements.
Product Description
Introduction
Silicone Mold Guide Post is a precision alignment component specifically designed for rubber molds, compression molds, transfer molds, and industrial elastomer molding systems. It plays a critical role in ensuring accurate mold positioning during opening and closing operations, helping maintain product consistency and reducing wear on mold assemblies. Precise guidance contributes to improved molding efficiency and stable production performance.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Rubber Mold Guide Pillar undergoes precision machining, heat treatment, cylindrical grinding, and polishing processes. These advanced manufacturing techniques provide excellent hardness, dimensional stability, wear resistance, and fatigue strength. The precision-ground surface ensures smooth interaction with guide bushings while maintaining reliable alignment accuracy throughout extended production cycles.
Silicone Mold Guide Post are widely used in automotive rubber component molds, industrial sealing molds, gasket molds, O-ring molds, vibration isolation product molds, and custom rubber tooling systems. Available in various diameters, lengths, and precision grades, they can meet both standard mold requirements and customized engineering specifications. OEM and ODM services are available according to customer drawings and technical requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Silicone Mold Guide Post |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1500 mm |
| Guiding Type | Mold Alignment Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Molding Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Rubber Processing Applications
Engineered specifically for rubber molding environments, providing dependable alignment performance under the pressure and temperature conditions of production.
Improves Product Dimensional Consistency
Accurate mold guidance helps maintain cavity alignment, supporting uniform product dimensions and reducing manufacturing variation between production batches.
Suitable For Heavy-Duty Mold Operations
Robust construction enables reliable performance in demanding molding systems requiring continuous operation and long-term durability.
Helps Reduce Tooling Maintenance Costs
Stable guiding performance minimizes abnormal component wear, helping lower maintenance frequency and improve overall tooling efficiency over time.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Silicone Mold Guide Post?
A Silicone Mold Guide Post is a precision guiding component used in rubber molds to ensure accurate mold alignment and stable movement during molding operations.
What is the function of a Silicone Mold Guide Post?
Its primary function is to maintain precise mold positioning, reduce alignment errors, improve product consistency, and support reliable production performance.
What materials are commonly used for Silicone Mold Guide Post?
Silicone Mold Guide Postare typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, excellent wear resistance, and long service life.
Can Silicone Mold Guide Post be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, mounting configurations, and special specifications can be produced according to customer requirements.
Where are Silicone Mold Guide Post commonly used?
They are widely used in rubber compression molds, transfer molds, automotive rubber part molds, gasket molds, O-ring molds, industrial sealing molds, and elastomer tooling systems.
