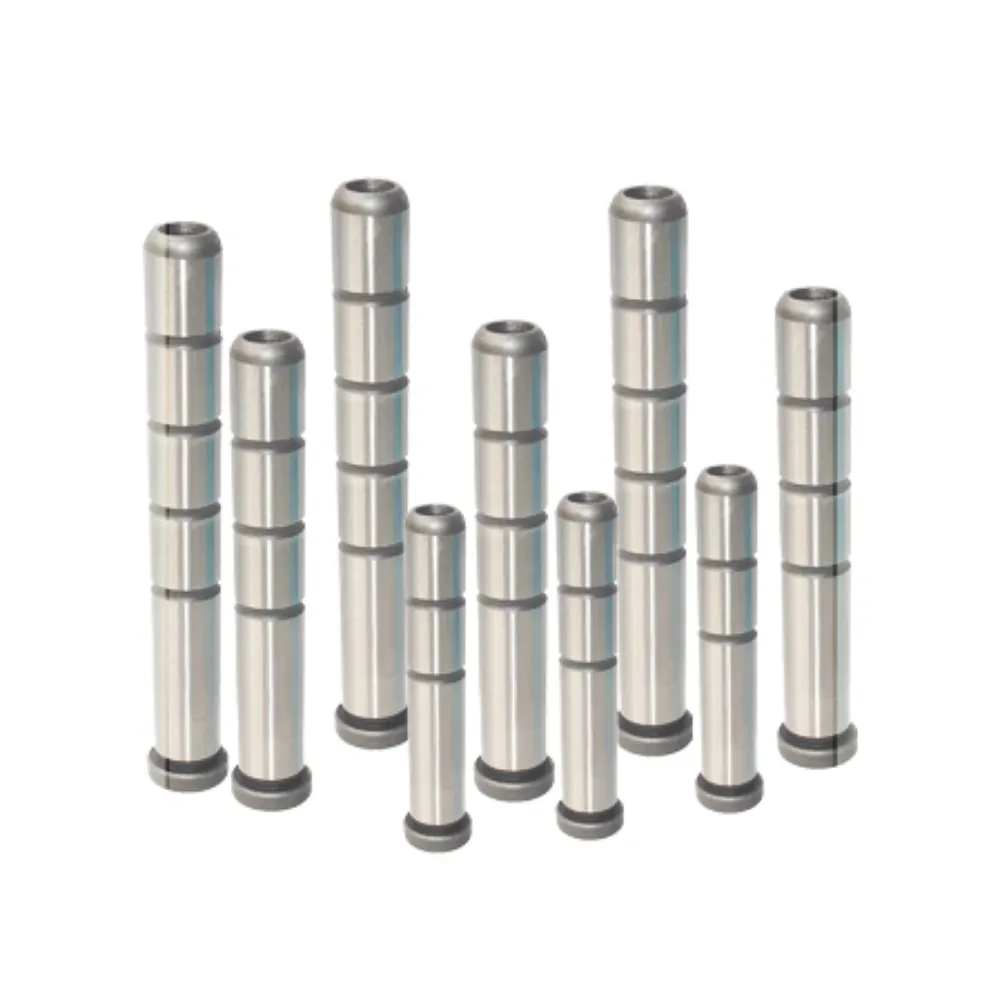

Small Gate Guide Pillar
The small gate guide pillar is used in precision mold systems to support accurate alignment in fine gate and micro runner structures. It helps maintain stable positioning between mold components during repeated injection molding cycles, ensuring smooth and controlled operation. Made from hardened steel, it provides reliable strength and consistent performance. Its precision-machined surface reduces friction and improves guiding efficiency, making it suitable for high-accuracy manufacturing environments requiring stable and repeatable mold behavior.
- Precise Gate Alignment Stability Control: Maintains accurate positioning in molds
- High Speed Cycle Operation Reliability: Ensures stable performance during fast cycles
- Enhanced Structural Wear Resistance Capability: Reduces long term surface damage
- Consistent Micro Mold Performance Output: Delivers stable results in production
Product Description
Introduction
The small gate guide pillar is a precision mold component designed for fine gate and micro runner injection molding systems. It ensures accurate alignment between mold plates in applications where small gate structures require extremely stable and precise guiding. Its role is to maintain consistent positioning during mold opening and closing cycles, supporting smooth operation in high-precision production environments.
Manufactured from hardened alloy steel with precision grinding, the small gate guide pillar offers excellent wear resistance, rigidity, and dimensional stability. The finely finished surface reduces friction between moving components, helping to maintain smooth guiding performance even under continuous production conditions. This contributes to improved mold efficiency and consistent product quality in micro and precision molding applications.
The small gate guide pillar can be customized in diameter, length, and tolerance to meet specific mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM drawings. Widely used in electronic components, medical devices, precision plastic parts, and micro injection molds, it provides reliable alignment and long-term stability in modern manufacturing systems requiring fine gate control.
Specifications
| Item | Description |
|---|---|
| Product Name | Small Gate Guide Pillar |
| Type | Fine Gate / Micro Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 50 mm – 500 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Micro Gate Position Accuracy
Provides extremely precise alignment for fine gate structures, ensuring consistent mold positioning in high precision micro injection molding processes.
Optimized Flow Channel Stability Control
Maintains stable guiding performance in small runner systems, reducing deviation and improving molding consistency for delicate plastic components.
Improved High Frequency Cycle Durability
Designed for rapid production cycles, offering reliable wear resistance and maintaining performance stability under continuous molding operations.
Reduced Friction Contact Interface Loss
Precision surface finishing minimizes contact resistance between components, reducing wear and ensuring smoother movement in fine gate mold systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a small gate guide pillar used for?
It is used in fine gate and micro runner molds to ensure precise alignment and stable guiding performance.
Q2: What materials are commonly used?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6 for high strength and wear resistance.
Q3: Can it be customized?
Yes, diameter, length, and tolerance can be customized according to specific mold design requirements.
Q4: Is it suitable for high-speed production?
Yes, it is designed for stable performance under high-frequency and continuous injection molding cycles.
Q5: Where is it commonly used?
It is widely used in electronic products, medical devices, and precision plastic injection molding applications.
