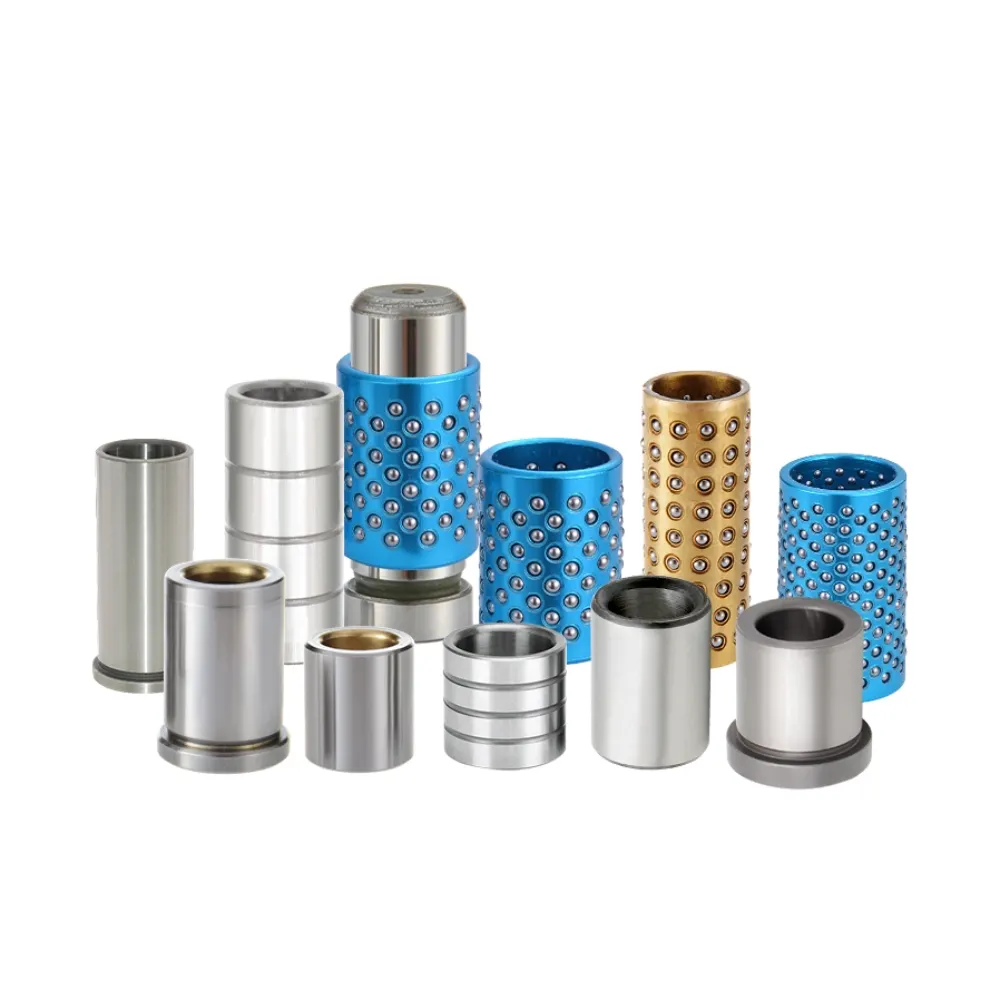

Stamping Die Guide Bushing
Stamping Die Guide Bushing is designed to support precise guiding performance in high-speed stamping die systems. It ensures stable coordination between guide pillars and die structures during continuous pressing operations, helping maintain consistent alignment and smooth mechanical movement. With reliable structural integrity and controlled guiding characteristics, it contributes to improved forming efficiency. This component is suitable for industrial environments requiring durable performance, accurate positioning, and long-term operational stability under heavy-duty stamping conditions.
- Stable Punch Alignment Control: ensures precise positioning
- Lower Structural Deformation Risk: maintains rigidity under load
- Improved Die Operation Consistency: enhances production stability
- Reliable Continuous Press Performance: supports long cycle use
Product Description
Introduction

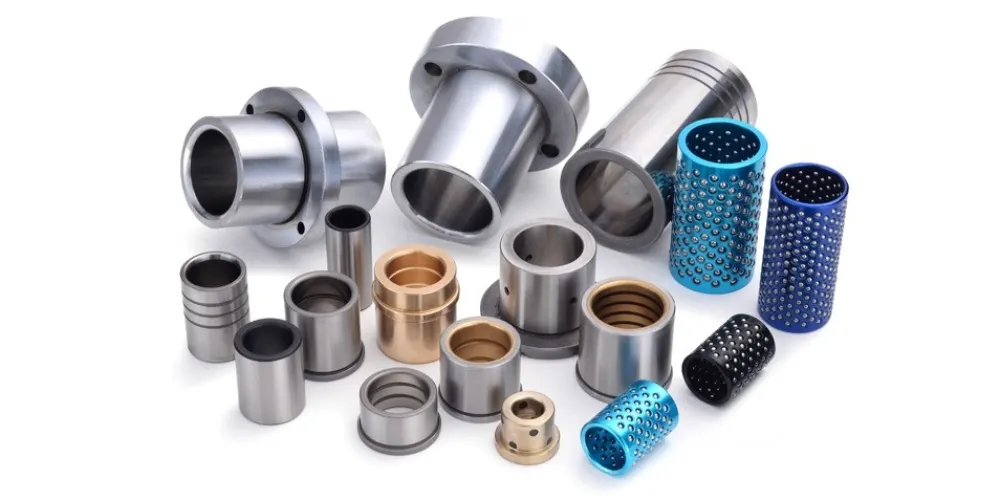

Stamping Die Guide Bushing is a precision-engineered component used in stamping die systems to ensure accurate alignment between guide pillars and die structures. It provides stable guiding performance during high-speed pressing operations, helping maintain correct positioning and reducing deviation throughout continuous production cycles. This contributes to improved forming accuracy and overall die stability in industrial manufacturing environments.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and processed through advanced heat treatment and precision grinding. These processes ensure excellent hardness, strong wear resistance, and stable dimensional accuracy under repeated impact loads. The finely finished inner bore allows smooth sliding contact with guide pillars, reducing friction and ensuring consistent guiding behavior even in high-frequency stamping operations.
Stamping Die Guide Bushing is widely used in metal stamping dies, progressive die systems, automotive body panel manufacturing, electrical component stamping, appliance production lines, and industrial metal forming equipment. It is especially suitable for high-speed and high-load stamping applications requiring reliable alignment and long-term durability. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a dependable solution for improving die accuracy, reducing maintenance needs, and ensuring stable performance in modern stamping production systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Stamping Die Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Die Alignment & Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Impact Load Resistance
Heat-treated structure withstands repeated stamping forces, maintaining stable performance under high-pressure forming conditions in continuous production environments.
Improved Die Alignment Stability
Ensures consistent positioning of guide pillars within stamping dies, reducing misalignment during high-speed pressing cycles and improving forming accuracy.
Reduced Friction Contact Wear
Precision-ground inner surface minimizes sliding resistance, lowering wear rate between components and extending operational lifespan in demanding applications.
Enhanced High Speed Adaptability
Designed for rapid stamping operations, maintaining reliable guiding performance and stability during frequent and continuous press machine cycles.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Stamping Die Guide Bushing used for?
It is used in stamping die systems to ensure accurate alignment and smooth guidance of die components during pressing operations.
2. What is its main function?
Its main function is to maintain stable positioning between guide pillars and die structures, reducing misalignment during high-speed stamping.
3. Where is it commonly applied?
It is widely used in metal stamping dies, automotive parts production, appliance manufacturing, and industrial forming systems.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for durability and accuracy.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, structure, and material based on customer requirements.
