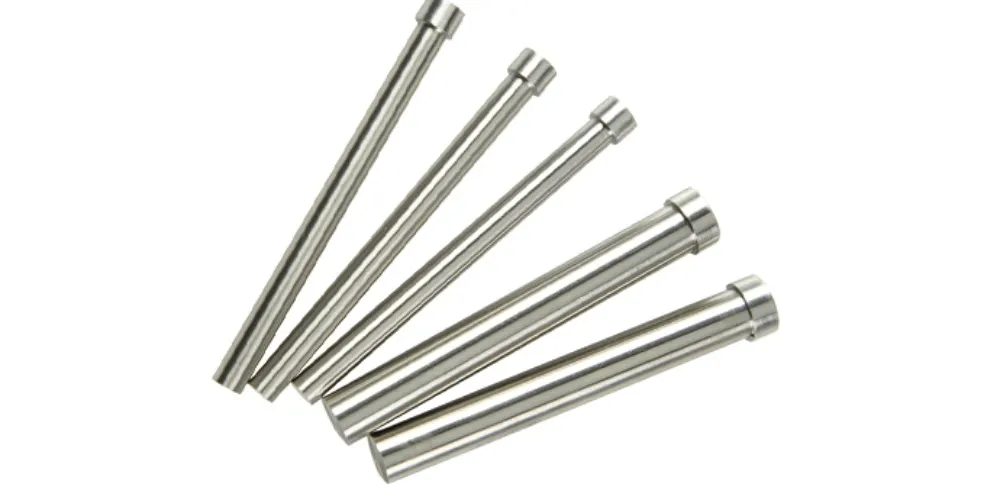

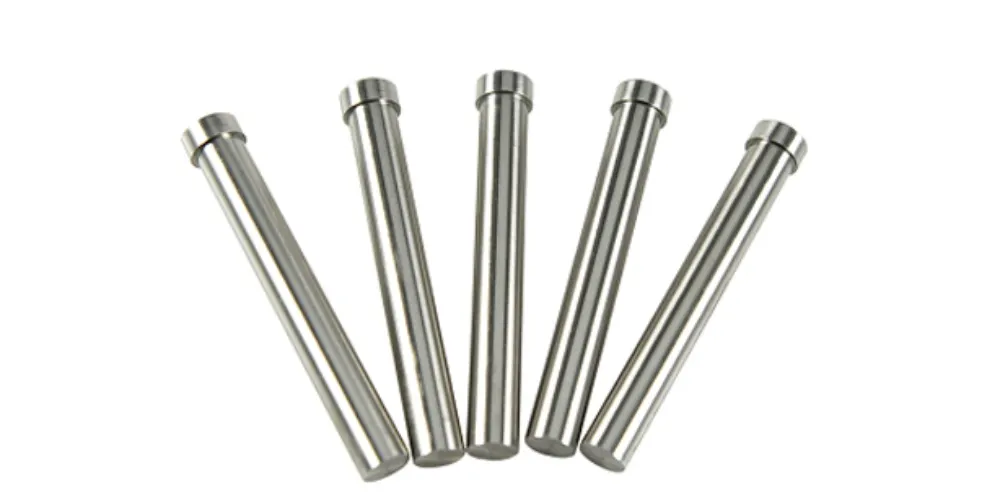

Standard Punch

Standard Punch is a versatile tooling component designed for precision stamping operations. Built to standardized specifications, it enables quick installation and reliable replacement in die systems. High-quality materials and precision manufacturing ensure dependable performance under repeated use. Ideal for industrial production, it helps improve operational efficiency, maintain accuracy, and support consistent manufacturing output across various applications.

Easy Replacement: Standardized sizes simplify maintenance and installation.
Production Efficiency: Supports uninterrupted high-volume stamping operations.
Structural Reliability: Maintains performance under repeated impact loads.
Cost Effectiveness: Reduces tooling replacement and operating costs.

Introduction

Standard Punch is a precision-engineered die component widely used in metal stamping, punching, and forming applications. Designed according to industry-standard dimensions, it offers excellent interchangeability and compatibility with various die systems. Manufactured from high-quality tool steel, high speed steel, or carbide materials, Standard Punches provide reliable performance, accurate hole formation, and consistent results in industrial production environments.

Produced through advanced CNC machining, precision grinding, and controlled heat treatment processes, Standard Punches achieve tight dimensional tolerances up to ±0.002 mm. Their optimized structure ensures excellent hardness, wear resistance, and impact strength, helping maintain stable punching accuracy during continuous operation. The precision-finished surface also reduces friction and contributes to smoother stamping performance.

Standard Punches are widely used in automotive manufacturing, electronics, connectors, terminals, household appliances, and precision hardware industries. They are suitable for punching, piercing, and forming operations in progressive dies and stamping molds. Custom options including diameter, length, head design, material grade, and surface coatings such as TiN or TiCN are available to meet specific production requirements. With dependable quality and broad application versatility, Standard Punches remain an essential solution for modern tooling and high-volume manufacturing processes.

Technical Specifications

Item	Description
Product Name	Standard Punch
Material	SKH51 / SKH9 / DC53 / ASP / Carbide
Hardness	HRC 58–68
Tolerance	±0.002 mm
Diameter Range	Customized
Length Range	Customized
Surface Finish	Precision Ground
Heat Treatment	Vacuum Heat Treatment
Manufacturing Process	CNC Machining + Grinding
Customization	OEM / ODM Available

Three Key Customization Aspects, Tailored to Your Needs

Matching different customization methods to meet various requirements.

Size Customization

Standard sizes are available in stock, while non-standard sizes can be customized to meet your specific requirements.

Material Customization

We offer free material selection advice, helping you choose the most suitable materials for mold components.

Mold Pairing Customization

Punching pins and molds are matched and formed in one step, saving on mold change costs.

Precision Manufacturing, Excellent Quality

High Interchangeability

Standard Punches are manufactured to standardized dimensions, ensuring easy replacement and compatibility with a wide range of stamping dies and tooling systems.

Consistent Punching Accuracy

Precision machining and grinding processes provide stable dimensional control, helping maintain uniform hole quality and reliable production results throughout long manufacturing cycles.

Excellent Durability

Premium tool materials and optimized heat treatment improve wear resistance and impact strength, extending service life in demanding stamping applications.

Broad Application Flexibility

Suitable for punching, piercing, and forming operations across multiple industries, Standard Punches support various production requirements and die configurations.

Refined Service, Shortened Delivery Time

From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.

Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up

Our Advantages

Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
