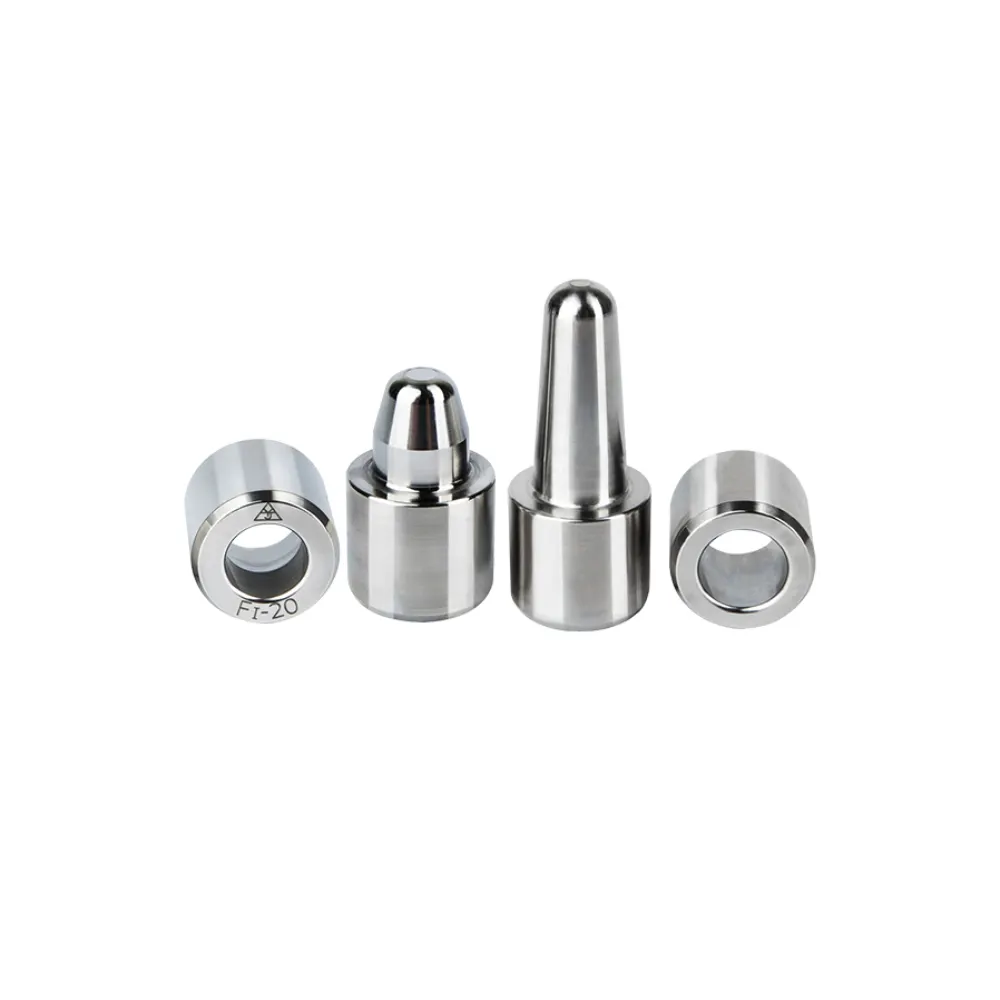

Tapered Guide Bushing
Tapered Guide Bushing is a precision mold component designed for stable alignment and smooth guiding in die systems. Its conical structure improves fitting accuracy and reduces setup deviation. Built with durable materials, it performs reliably in industrial production environments. Suitable for various tooling applications, it helps maintain consistent operation, improve efficiency, and support long-term manufacturing stability.
- Alignment Efficiency: Speeds up mold setup process
- Load Bearing Ability: Handles continuous production pressure
- Smooth Engagement: Ensures stable component contact
- Wear Resistance: Extends operational lifespan effectively
Product Description
Introduction
Tapered Guide Bushing is a precision-engineered mold guiding component designed with a conical structure to ensure accurate alignment between guide pillars and bushings in stamping dies and injection mold systems. Its tapered geometry improves self-centering performance, reduces installation deviation, and enhances overall mold positioning stability during operation. It is widely used in high-precision industrial applications where consistent alignment is critical.
Manufactured from high-quality hardened steel, bronze, or self-lubricating composite materials, Tapered Guide Bushing offers excellent wear resistance, structural strength, and long service life. Through advanced CNC machining, internal grinding, and precise heat treatment processes, it achieves tight dimensional tolerances up to ±0.002 mm. The smooth guiding surface ensures reduced friction and stable movement, even under high-speed and high-load production conditions.
Tapered Guide Bushing is widely applied in automotive mold systems, electronics manufacturing, progressive die setups, household appliances, and precision hardware production. It is especially suitable for complex mold assemblies requiring reliable self-alignment and stable operation. Custom options such as inner diameter, outer diameter, taper angle, length, lubrication grooves, and material selection are available to meet specific engineering requirements. This flexibility makes it a reliable solution for OEM tooling, non-standard molds, and high-precision guiding systems across various industrial sectors.
Specifications
| Item | Description |
|---|---|
| Product Name | Tapered Guide Bushing |
| Shape Type | Tapered / Conical |
| Material | Hardened Steel / Bronze / Self-lubricating Alloy |
| Hardness | HRC 58–62 (steel type) |
| Tolerance | ±0.002 mm |
| Inner Diameter | Customized |
| Outer Diameter | Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication | Oil groove / Self-lubricating optional |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Self-Centering Design
The tapered structure helps automatically correct alignment during installation, reducing positioning errors and improving assembly efficiency in mold and die systems for more stable operation.
High Structural Strength
Manufactured from hardened steel or bronze materials, it provides strong resistance to deformation and supports reliable performance under continuous high-load working conditions.
Reduced Installation Error
Conical geometry simplifies fitting between components, minimizing assembly deviation and ensuring accurate positioning in stamping and injection molding applications.
Long Service Performance
Precision machining and heat treatment enhance durability, allowing the guide bushing to maintain stable performance and extend service life in demanding industrial environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
