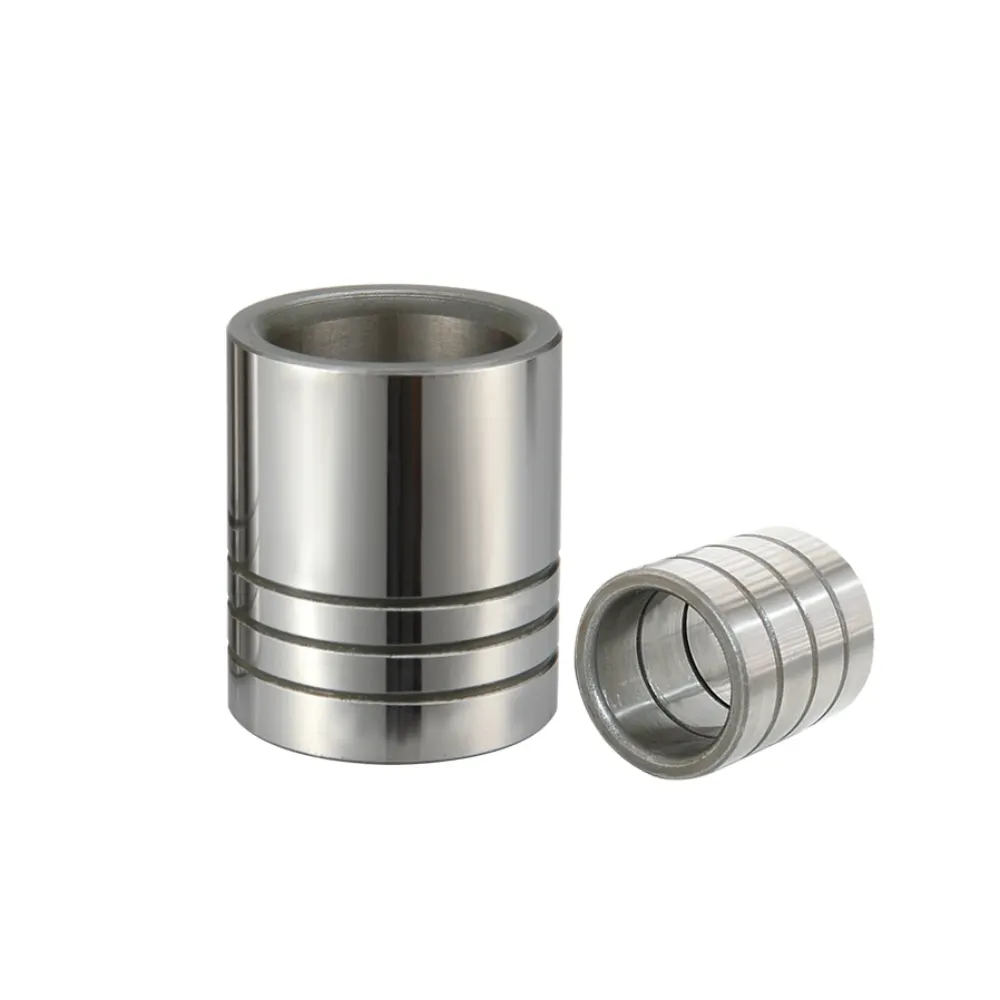

Shoulderless Guide Bushing
Shoulderless Guide Bushing is a compact mold alignment component designed to support precise movement and stable guiding in tooling systems. Its flange-free structure allows flexible installation in limited spaces. It helps maintain consistent mold operation, reduces alignment errors, and performs reliably in stamping and injection molding applications requiring high precision and efficient space utilization.
- Space Optimization: Fits confined mold structures
- Fast Installation: Simplifies assembly process
- Stable Operation: Maintains consistent performance
- Low Maintenance: Reduces service frequency
Product Description
Introduction

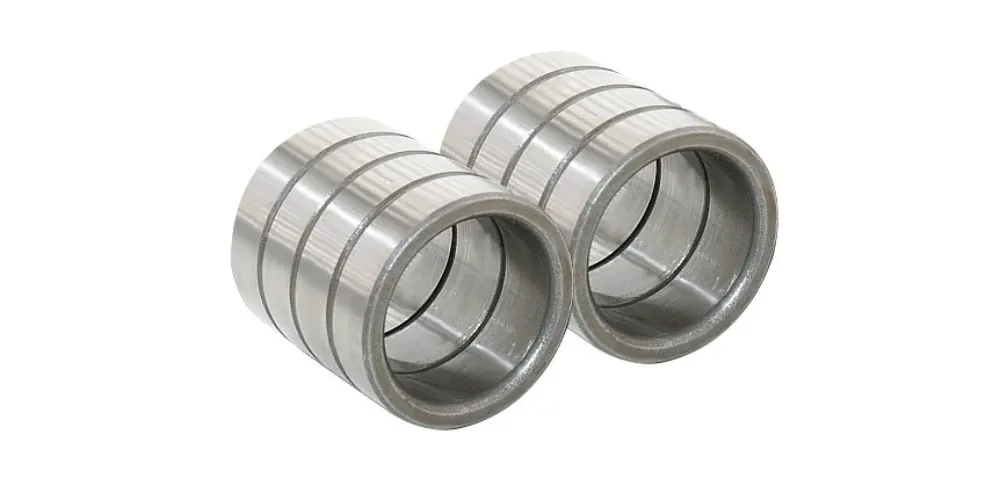

Shoulderless Guide Bushing is a precision-engineered mold component designed without a flange structure to provide flexible installation and accurate alignment in stamping dies, injection molds, and industrial tooling systems. It works together with guide pillars to maintain stable linear motion, ensuring consistent positioning of mold components during punching and forming operations. Its compact design makes it especially suitable for applications with limited installation space.
Manufactured from high-quality bearing steel or hardened tool steel, Shoulderless Guide Bushing delivers excellent wear resistance, high mechanical strength, and long service life. Advanced CNC machining, precision internal grinding, and controlled heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface reduces friction between guiding components, enabling smooth and stable motion even under high-speed and continuous production conditions.
Shoulderless Guide Bushing is widely used in precision mold systems across automotive manufacturing, electronics production, household appliance tooling, progressive die systems, and precision hardware industries. It supports both standard and customized mold structures, offering flexible options in inner diameter, outer diameter, length, lubrication grooves, and material selection. This adaptability ensures reliable performance, improved efficiency, and long-term stability in demanding industrial environments where compact design and high precision are required.
Specifications
| Item | Description |
|---|---|
| Product Name | Shoulderless Guide Bushing |
| Structure Type | Flangeless / Straight Type |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Compact Installation Design
Shoulderless Guide Bushing eliminates the flange structure, allowing easier installation in tight mold spaces. It helps optimize layout efficiency while maintaining precise alignment in stamping and injection mold systems.
High Alignment Precision
It ensures accurate cooperation with guide pillars, maintaining stable positioning of mold components and reducing deviation during high-speed forming and continuous production cycles.
Excellent Wear Resistance
Manufactured from hardened steel materials, it provides strong resistance to abrasion and deformation, ensuring long-term durability and stable performance under heavy industrial load conditions.
Smooth Guiding Performance
Precision internal grinding reduces friction between moving parts, enabling smooth linear motion and improving overall operational stability in mold guiding systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Shoulderless Guide Bushing used for?
It is used in mold systems to provide precise alignment and smooth linear guiding without a flange structure.
2. What is the advantage of a shoulderless design?
The flange-free design allows easier installation in compact mold structures with limited space.
3. What materials are used for Shoulderless Guide Bushing?
It is typically made from hardened steel, bearing steel, or other wear-resistant industrial alloys.
4. Where is Shoulderless Guide Bushing commonly applied?
It is widely used in stamping dies, injection molds, automotive parts, electronics, and precision tooling systems.
5. Can Shoulderless Guide Bushing be customized?
Yes, it can be customized in size, tolerance, material, and lubrication requirements based on application needs.
