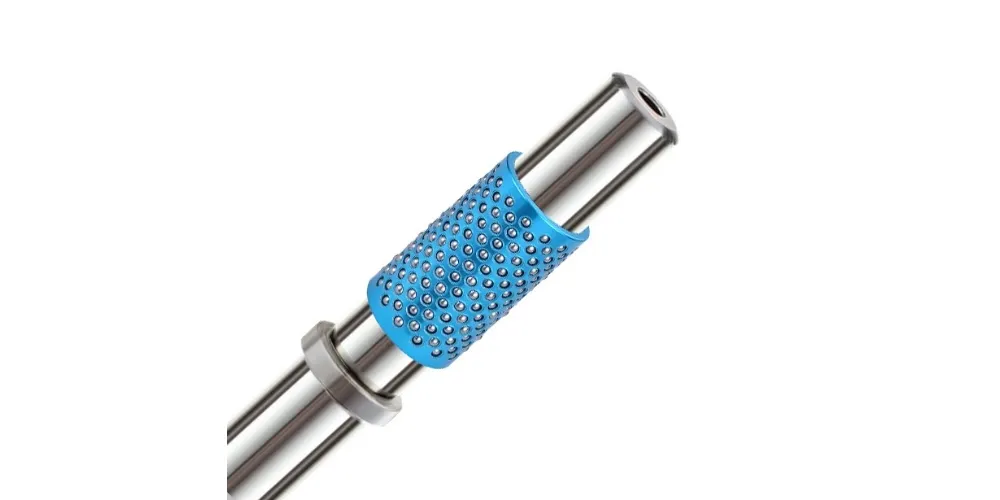

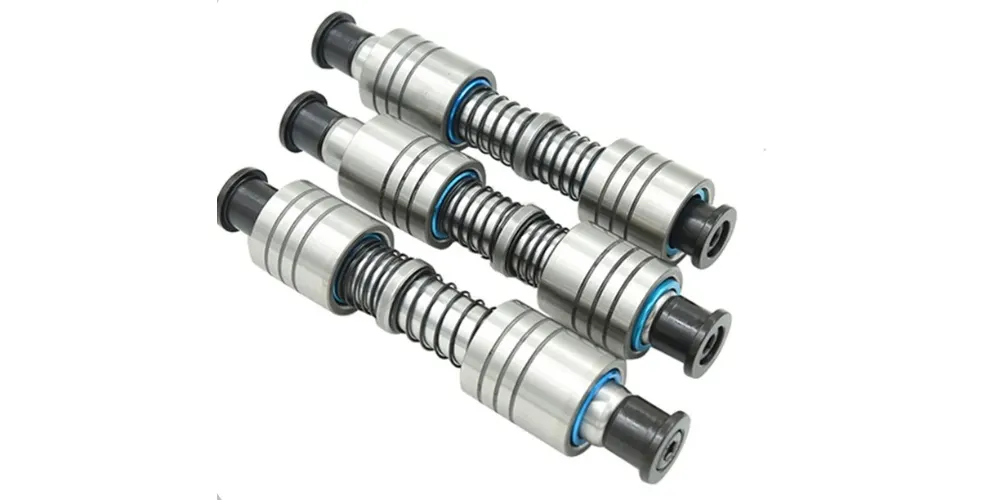

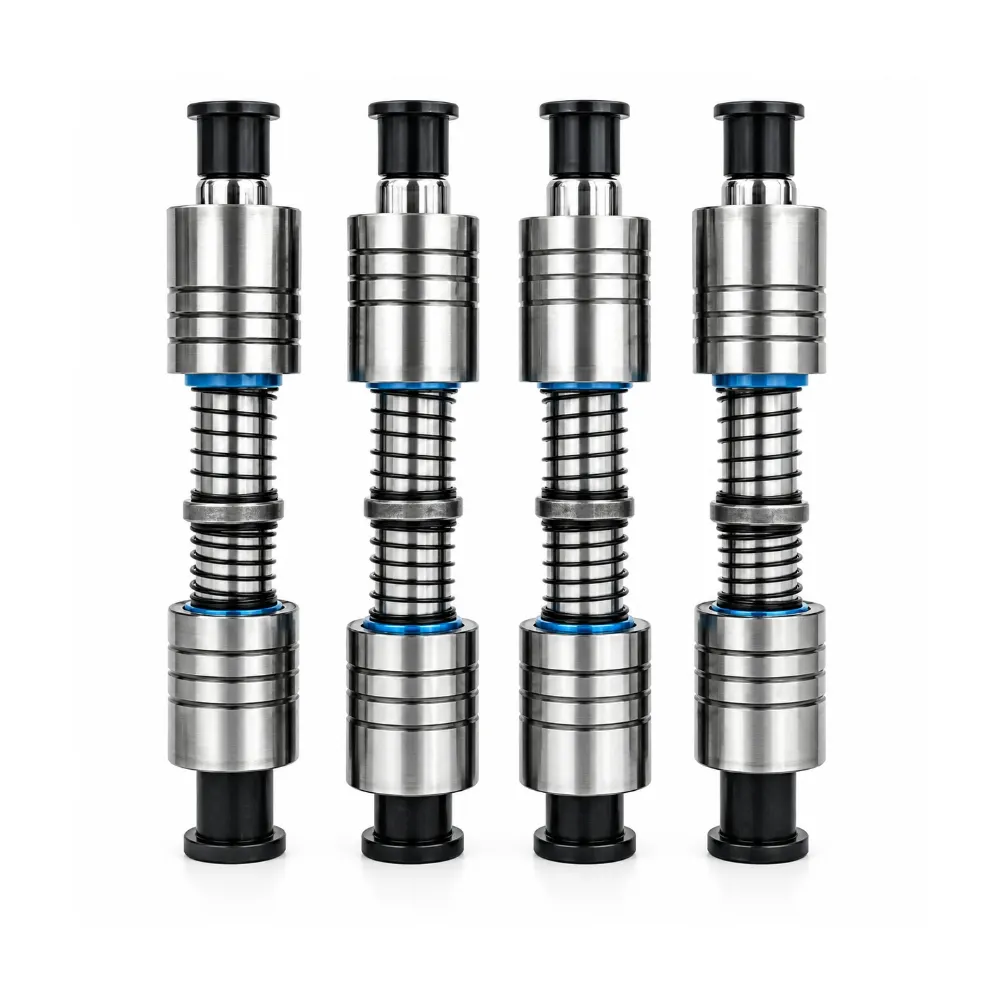

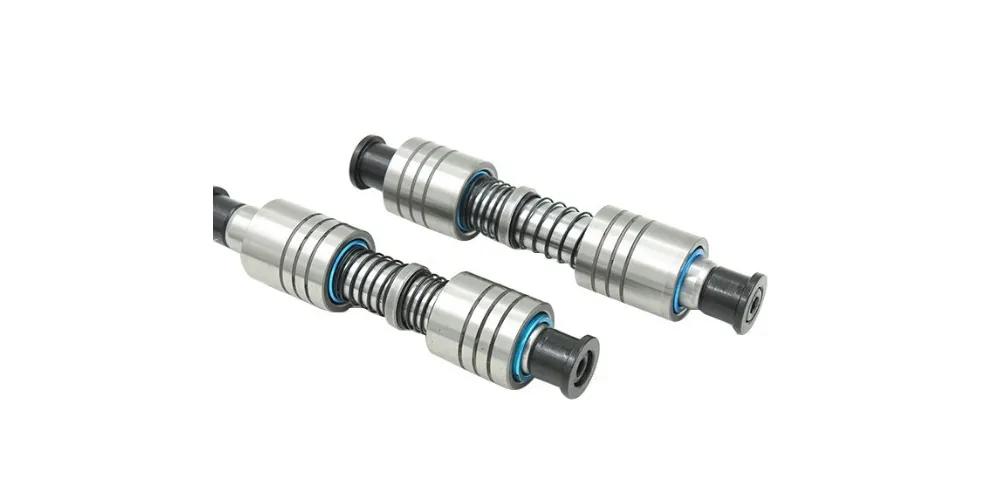

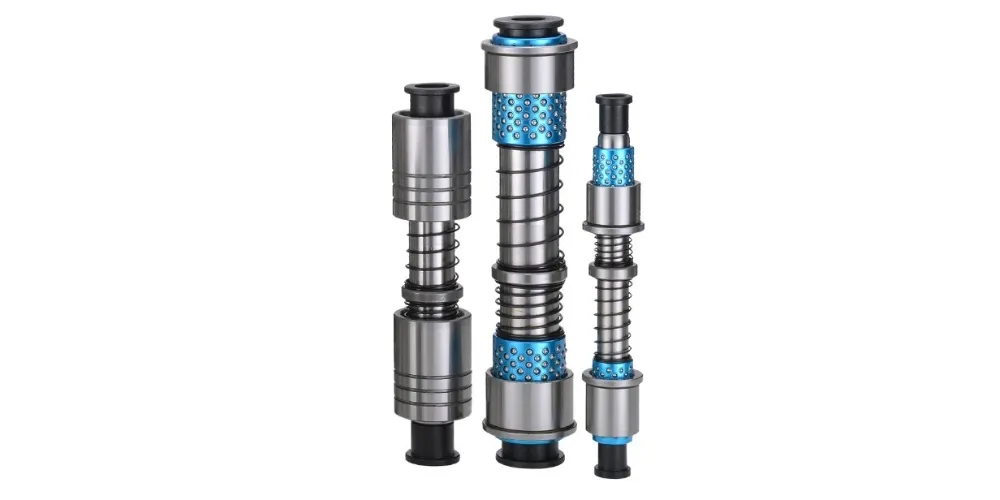

Terminal Die Guide Pillar
Terminal Die Guide Pillar is a precision guiding element developed for terminal stamping and connector mold systems that require stable alignment and high production accuracy. Manufactured from hardened bearing steel with precision grinding technology, it provides excellent rigidity, wear resistance, and dimensional consistency. The finely finished guiding surface ensures smooth die movement while maintaining accurate positioning under continuous high-speed operation. Widely used in connector manufacturing, automotive terminals, and electronic component tooling, it supports efficient and reliable mass production performance.
- Ensures Stable Terminal Alignment: Maintains consistent positioning during stamping.
- Improves Connector Forming Quality: Reduces variation in finished components.
- Handles Continuous Production Loads: Performs reliably in long operating cycles.
- Minimizes Die Wear Damage: Reduces stress on tooling surfaces.
Product Description
Introduction
Terminal Die Guide Pillar is a precision mold guiding component designed specifically for terminal stamping dies, connector molds, and high-accuracy electrical component tooling systems. It ensures stable alignment between upper and lower die sets during high-speed stamping operations, helping improve forming precision, reduce misalignment, and maintain consistent production quality in connector manufacturing.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Terminal Die Guide Pillar is processed through precision turning, heat treatment, cylindrical grinding, and polishing. These advanced manufacturing processes provide excellent hardness, dimensional stability, wear resistance, and fatigue strength. The finely ground surface ensures smooth guiding performance and reliable operation under continuous high-load stamping conditions.
Terminal Die Guide Pillars are widely used in electrical connector molds, terminal stamping dies, progressive dies, automotive wiring harness component molds, precision electronic parts tooling, and industrial high-speed production systems. Available in multiple diameters, lengths, and precision grades, they can meet both standard mold requirements and custom engineering specifications. OEM and ODM services are available based on customer drawings and technical requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Terminal Die Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Precision Mold Alignment |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision / Ultra Precision |
| Operating Condition | High-Speed Continuous Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Connector Stamping Accuracy
Designed to maintain precise alignment in terminal and connector die systems, ensuring consistent forming quality during high-speed stamping production.
Enhances Electrical Component Reliability
Stable guiding performance helps reduce dimensional deviation, improving the consistency and reliability of electrical terminal components.
Supports Continuous High-Speed Operation
Engineered for long-term use in high-frequency stamping environments, maintaining smooth performance under continuous industrial workloads.
Reduces Tooling Wear And Damage
Improved alignment control minimizes uneven stress on die components, helping extend tooling life and reduce maintenance frequency.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Terminal Die Guide Pillar?
A Terminal Die Guide Pillar is a precision guiding component used in terminal and connector stamping dies to ensure accurate alignment and stable die movement.
What is the function of a Terminal Die Guide Pillar?
Its function is to maintain precise positioning between die components, reduce misalignment, improve forming accuracy, and support stable high-speed production.
What materials are used for Terminal Die Guide Pillars?
Terminal Die Guide Pillars are typically made from SUJ2 or GCr15 bearing steel, offering high hardness, wear resistance, and long service life.
Can Terminal Die Guide Pillars be customized?
Yes. They can be customized in diameter, length, tolerance, surface treatment, and installation type according to customer drawings and technical requirements.
Where are Terminal Die Guide Pillars commonly used?
They are widely used in electrical connector molds, terminal stamping dies, progressive dies, automotive wiring harness production, and precision electronic component manufacturing.
