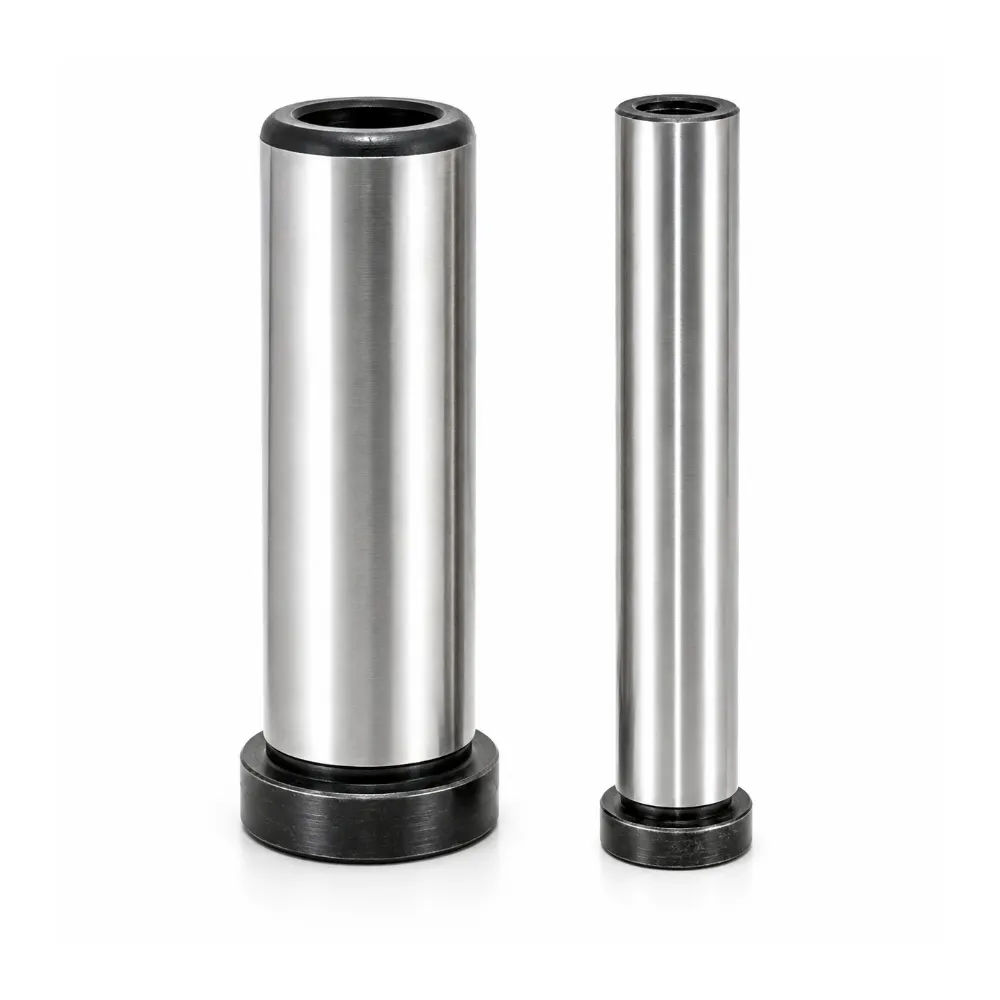

Tie Rod Guide Pillar
Tie Rod Guide Pillar is engineered for industrial systems that require both accurate guidance and enhanced structural reinforcement. By combining a guiding element with a tie rod configuration, it helps improve alignment control while increasing assembly strength. Manufactured from hardened bearing steel and processed with precision grinding technology, it offers excellent durability, dimensional stability, and resistance to wear.
- Combines Alignment With Structural Reinforcement: Provides guidance and support simultaneously.
- Performs Well In Extended Travel Applications: Maintains accuracy across long movement distances.
- Strengthens Overall Assembly Rigidity Effectively: Helps reduce flexing under operational loads.
- Fits Diverse Industrial Equipment Configurations: Adapts to various machinery and tooling.
Product Description
Introduction
Tie Rod Guide Pillar is a precision guiding component designed for mold bases, heavy-duty tooling systems, industrial machinery, and alignment assemblies requiring enhanced structural support. Combining guiding and tie-rod functions, it helps maintain accurate positioning, improve assembly rigidity, and ensure smooth movement between connected components. This integrated design is particularly suitable for applications where stability, load-bearing capacity, and alignment accuracy are essential.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Tie Rod Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes. These advanced manufacturing methods provide excellent hardness, dimensional stability, wear resistance, and fatigue strength. The precision-ground surface allows smooth interaction with guide bushings while maintaining reliable guidance under continuous industrial operation.
Tie Rod Guide Pillars are widely used in injection molds, stamping dies, mold bases, industrial automation equipment, mechanical guiding systems, and customized tooling assemblies. Available in various diameters, lengths, and mounting configurations, they can meet both standard industrial requirements and custom engineering projects. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Tie Rod Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø16 mm – Ø150 mm |
| Length Range | 100 mm – 1800 mm |
| Guiding Type | Tie Rod Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Threaded / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Combines Guidance And Structural Support
Integrates alignment and reinforcement functions into one component, helping simplify assembly design while improving overall system stability.
Suitable For Long Stroke Applications
Designed for equipment requiring extended travel distances, maintaining reliable guidance and positioning accuracy throughout movement.
Increases Assembly Rigidity Effectively
Provides additional structural strength to connected systems, helping reduce deflection and improve operational consistency under load.
Adaptable To Industrial Equipment Designs
Compatible with various machinery and tooling configurations, offering flexibility for custom engineering and specialized manufacturing applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Tie Rod Guide Pillar?
A Tie Rod Guide Pillar is a precision component that combines guiding and structural support functions to maintain alignment and stability in tooling and machinery systems.
What is the function of a Tie Rod Guide Pillar?
Its primary function is to provide accurate guidance, improve assembly rigidity, support load-bearing structures, and ensure stable component movement.
What materials are commonly used for Tie Rod Guide Pillars?
Tie Rod Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, excellent wear resistance, and long service life.
Can Tie Rod Guide Pillars be customized?
Yes. Custom diameters, lengths, thread designs, mounting methods, surface treatments, and special specifications can be manufactured according to customer drawings.
Where are Tie Rod Guide Pillars commonly used?
They are widely used in mold bases, injection molds, stamping dies, automation equipment, industrial machinery, heavy-duty tooling systems, and precision alignment assemblies.
