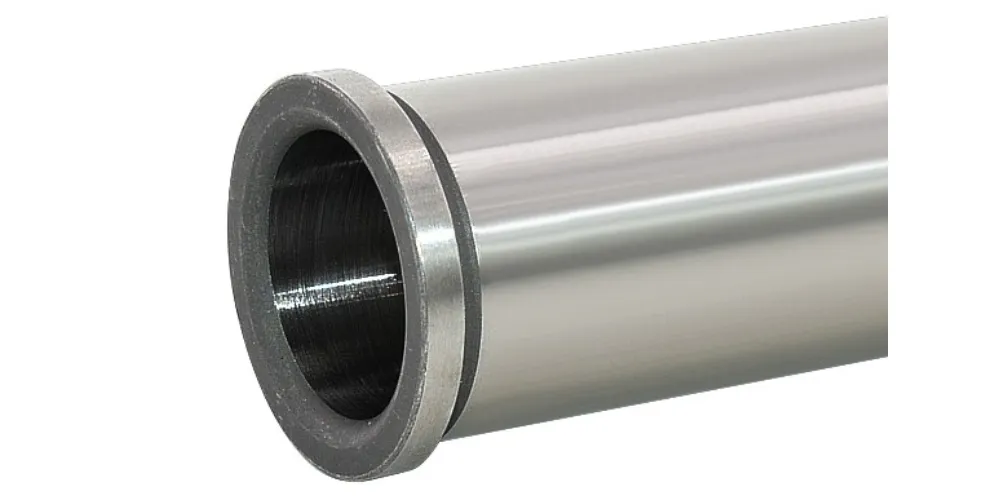

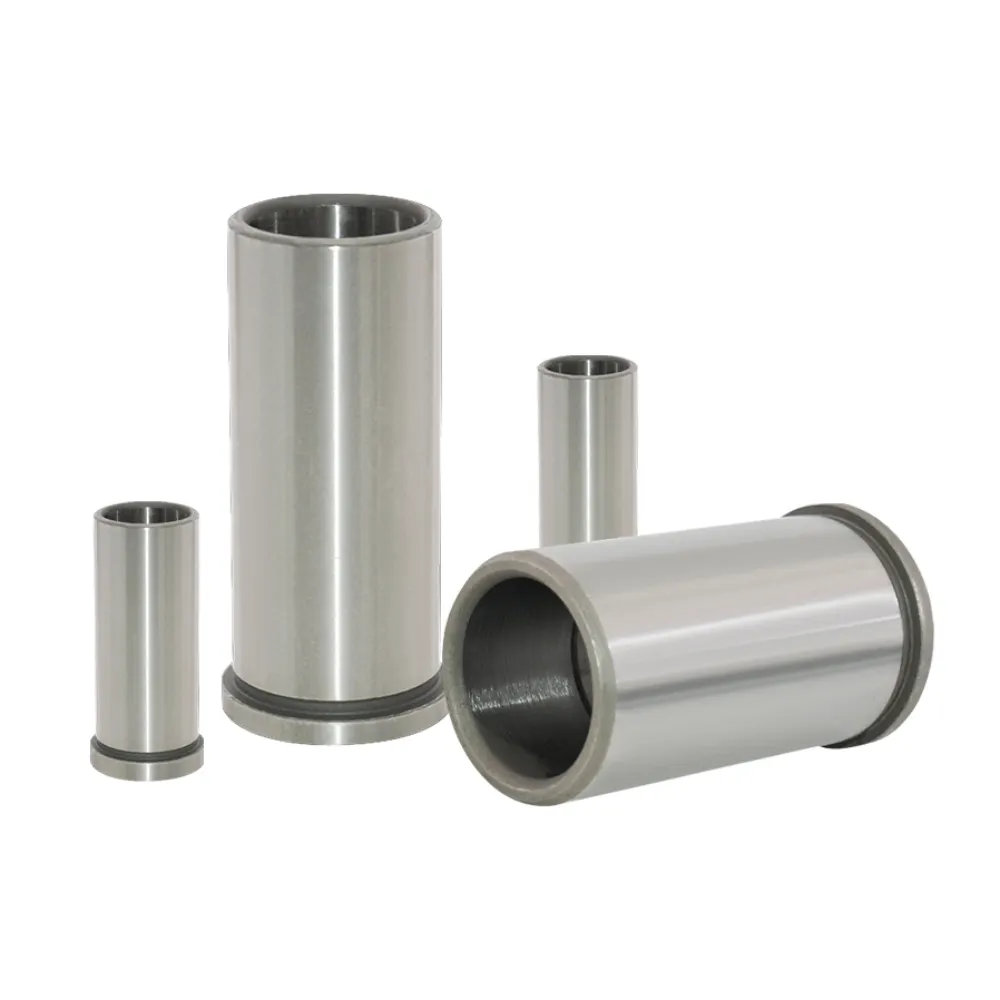

Type A Guide Bushing
Type A Guide Bushing is a standardized mold component designed to deliver reliable guiding and alignment performance in various mold base systems. It provides stable support for guide pillars, ensuring controlled movement and consistent positioning during repeated mold operations. With its practical structure and dependable functionality, it helps improve assembly efficiency and operational stability. This component is suitable for industrial applications that require standardized installation, consistent guiding accuracy, and long-term durability under continuous production conditions.
- Consistent Mold Assembly Alignment: ensures precise positioning fit
- Improved Guide Column Support Strength: enhances structural stability
- Simplified Component Replacement Process: reduces maintenance time
- Stable Long Term Operation: supports continuous industrial use
Product Description
Introduction
Type A Guide Bushing is a standard precision mold component designed to provide stable and accurate guiding for mold pillar systems. It ensures smooth alignment between guide pillars and mold bases, helping reduce friction, improve positioning accuracy, and maintain reliable performance during repeated mold opening and closing cycles. This makes it an essential part for ensuring stable operation in injection molds and stamping die systems.
Manufactured from high-quality bearing steel, alloy steel, or hardened tool steel, the Type A Guide Bushing is processed through heat treatment and precision grinding. These manufacturing processes ensure excellent hardness, strong wear resistance, and stable dimensional accuracy. The straight structure design provides reliable guiding support and consistent performance in high-cycle production environments.
Compared with non-standard bushings, Type A Guide Bushing follows standardized mold component design, making it easy to install, replace, and maintain in various mold systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Type A Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Type A (Straight Standard Type) |
| Surface Finish | Precision Ground |
| Function Type | Mold Guide Support |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Standardized Installation Compatibility
Type A design follows common mold standards, ensuring easy installation, interchangeability, and reliable fitting across different mold base systems.
Enhanced Guide Pillar Stability
Provides steady support for guide pillars, maintaining consistent alignment accuracy during repeated mold opening and closing operations in production cycles.
Reduced Maintenance Replacement Cost
Standard structure simplifies replacement process, minimizing downtime and lowering maintenance costs in long-term industrial mold usage.
Improved Structural Wear Resistance
Heat-treated material enhances surface hardness, reducing wear and ensuring stable guiding performance under continuous working conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Type A Guide Bushing used for?
It is used in mold systems to guide and support pillars, ensuring stable alignment and smooth operation during molding cycles.
2. What makes Type A different from other types?
Type A follows a standardized straight structure, making it widely compatible and easy to install in most mold bases.
3. Where is it commonly applied?
It is widely used in injection molds, stamping dies, die casting molds, and general industrial mold systems.
4. What materials are used?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for durability.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, and material according to customer requirements.
