Heat Treatment for Mold Parts: Hardness, Wear Resistance, and Tool Life

Heat treatment for mold parts improves hardness, wear resistance, and tool life by changing the steel structure and stabilizing high-friction surfaces. Processes like quenching, tempering, and nitriding help ejector pins, punches, guide posts, and sleeves resist wear, cracking, and deformation. The right treatment depends on the mold component, cycle volume, operating stress, and dimensional tolerance requirements.

Mold components fail faster when heat treatment doesn't match the material or production environment. A punch may crack because it's too hard. A guide bushing may lose alignment because it distorted during quenching. Choosing the right process helps reduce maintenance, improve cycle consistency, and extend mold life without increasing unnecessary tooling costs.

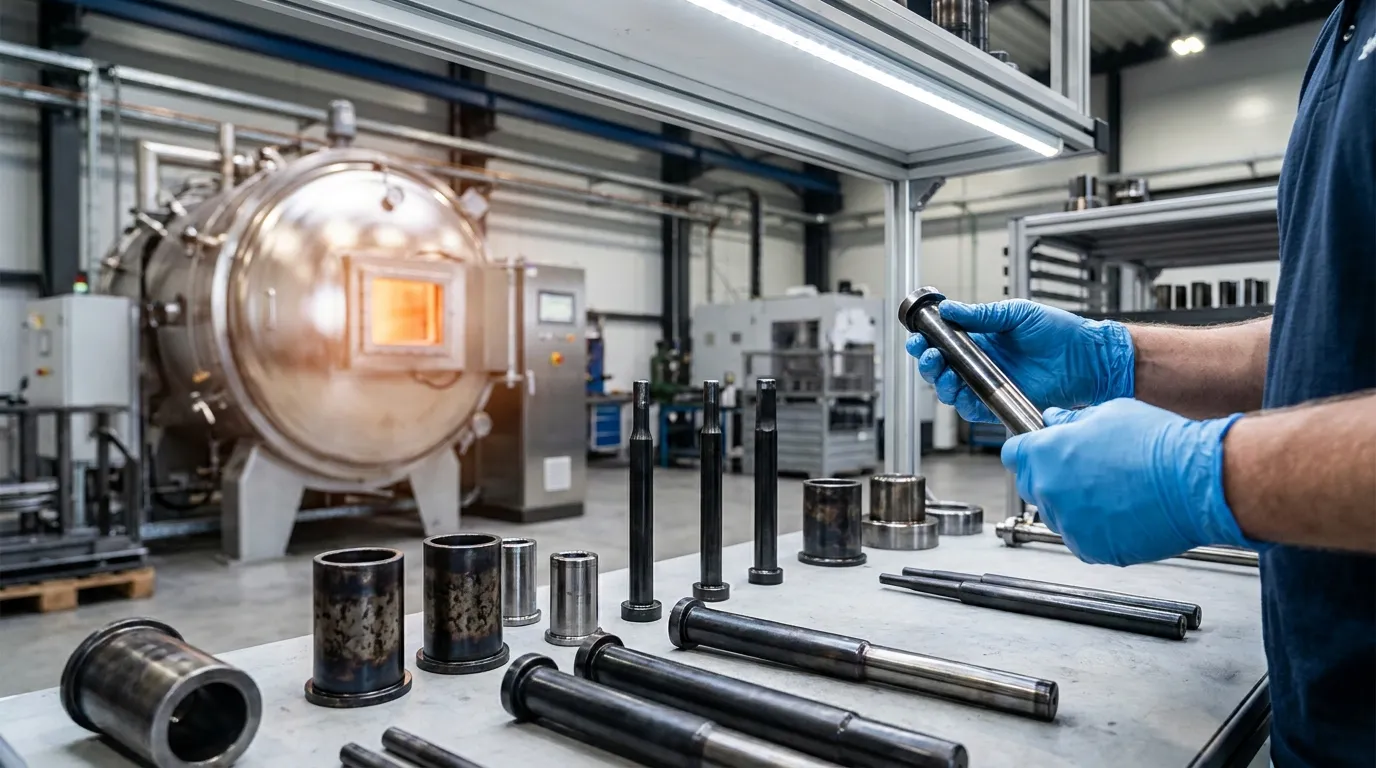

What does heat treatment do for mold parts?

Heat treatment for mold parts improves hardness, wear resistance, and dimensional stability by changing the steel microstructure. Proper treatment extends mold life and reduces maintenance, but excessive hardness can increase cracking risk.

Heat treatment controls how mold steel responds to stress, friction, and repeated production cycles. During processes such as quenching and tempering, the steel is heated and cooled under controlled conditions. This changes the internal grain structure and improves the part's mechanical properties.

In injection molds, high-contact components experience constant pressure and sliding movement. Ejector pins push parts out thousands of times per day. Guide posts absorb alignment stress during every cycle. Without proper heat treatment, these surfaces wear quickly and lose dimensional accuracy.

According to vacuum heat treatment guidance, stress relief and controlled heating help reduce internal defects and improve stability. That matters because even small dimensional changes can affect mold alignment and surface quality.

Higher hardness is not always better. Some mold parts fail earlier because they become too brittle after aggressive hardening. In many production environments, balanced toughness and wear resistance perform better than maximum hardness alone.

Heat Treatment Goal	Production Benefit
Increase hardness	Better wear resistance
Improve toughness	Lower cracking risk
Reduce stress	Better dimensional stability
Harden surfaces	Longer component life
Stabilize structure	Consistent production accuracy

For a broader look at complete injection mold components, it's important to understand how each part handles different loads and wear conditions.

Which mold components benefit most from heat treatment?

High-friction mold components such as ejector pins, punches, guide posts, and sleeves benefit most from heat treatment because they face repeated wear, pressure, and alignment stress during high-cycle production.

Not every mold part requires the same treatment level. Structural plates may only need moderate hardness, while moving components often need stronger surface protection. The highest wear usually appears where metal-to-metal contact repeats continuously.

A high-cycle automotive mold is a good example. If ejector pins are too soft, the pin heads wear unevenly and start sticking inside the mold. That creates ejection problems, longer cycle times, and more maintenance shutdowns.

Mold Component	Main Stress Type	Recommended Focus
Ejector pins	Sliding wear	Surface hardness
Punches	Impact and pressure	Toughness + hardness
Guide bushings	Alignment friction	Wear resistance
Sleeves	Repeated motion	Surface stability
Mold cores	Heat and pressure	Dimensional stability

Guide parts deserve special attention because alignment problems spread across the entire mold system. A distorted guide bushing can shift cavity positioning and increase flash defects. This is one reason heat treatment is closely tied to the overall mold production process.

Medical molding applications often use nitrided sleeves because the process creates a hard outer layer without causing large dimensional changes. That helps maintain polished surfaces and consistent cavity performance over long production runs.

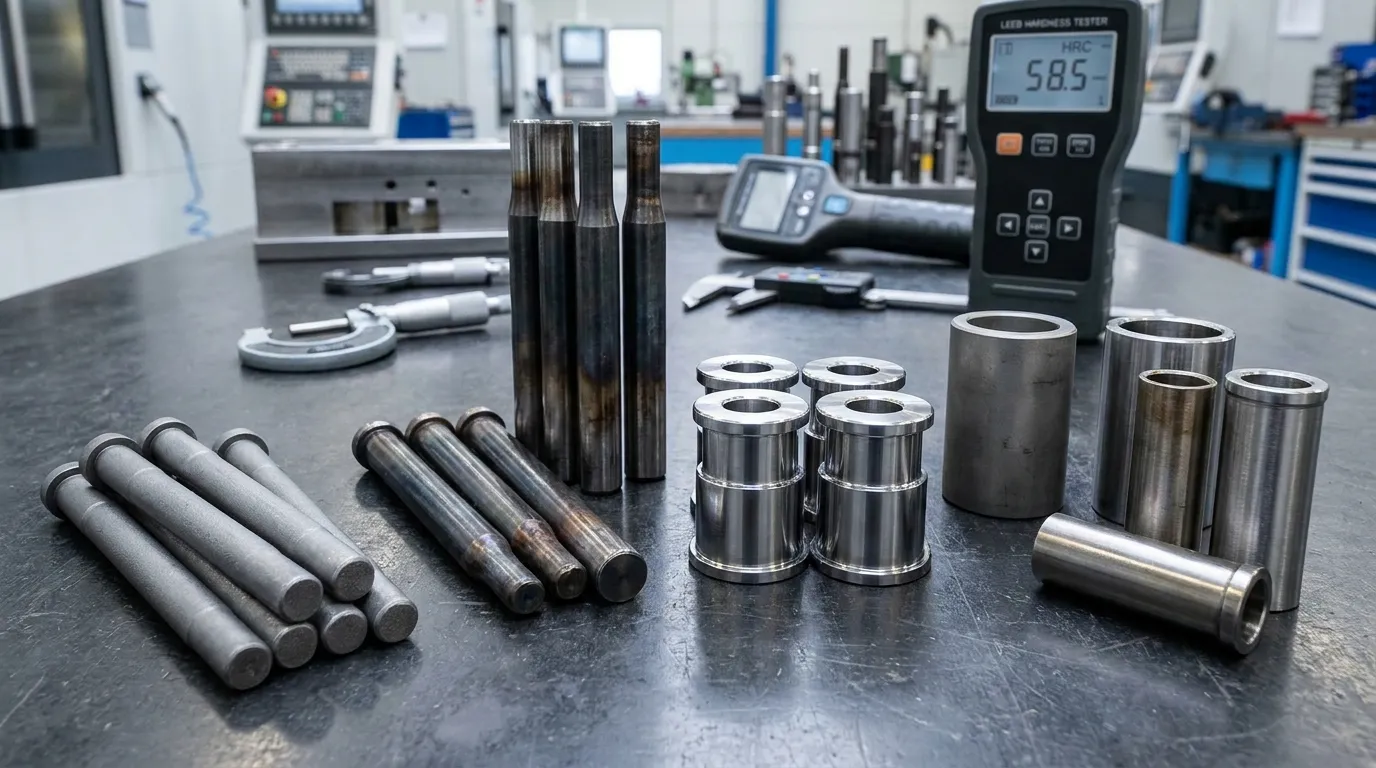

What hardness range is best for different mold parts?

The best hardness level depends on the component function. High-wear parts often require higher hardness, while alignment and structural parts need more toughness to avoid cracking or deformation.

Many buyers assume harder mold parts automatically last longer. That isn't always true. A punch with excessive hardness may crack under repeated impact, especially in fast-cycle production. A slightly lower hardness range can improve toughness and extend usable service life.

The right balance depends on friction, impact load, thermal stress, and dimensional requirements. High-wear surfaces usually benefit from harder outer layers, while structural parts often need flexibility to absorb stress safely.

Mold Component Heat Treatment Decision Table

Component	Recommended Hardness	Preferred Treatment	Main Failure Risk	Best Application
Ejector pin	HRC 58-62	Nitriding	Surface wear	High-cycle molds
Punch	HRC 56-60	Quench + temper	Cracking	Repeated impact
Guide bushing	HRC 50-56	Through hardening	Distortion	Alignment systems
Sleeve	HRC 58-60	Nitriding	Galling	Precision molds
Mold core	HRC 48-54	Vacuum heat treatment	Thermal fatigue	Complex cavities

According to vacuum heat treatment process guidance, controlled cooling improves dimensional stability and reduces distortion risk. That's especially important for precision molds with tight tolerances.

A guide bushing that warps during quenching may still appear usable, but slight alignment changes can create uneven wear across the mold. Over time, that increases maintenance costs and reduces production consistency.

When should you use nitriding instead of through hardening?

Nitriding is often preferred for mold components that need high surface wear resistance with minimal distortion. Through hardening works better when uniform hardness is needed throughout the part.

The main difference is where the hardness is created. Through hardening affects the full thickness of the steel, while nitriding mainly hardens the outer surface. That makes nitriding useful for precision parts that must keep tight dimensional tolerances.

Nitriding also produces less deformation because it operates at lower temperatures than many quenching processes. In molds with polished sleeves or precision ejector systems, reduced distortion can improve long-term performance.

Benefits of nitriding for ejector pins

Ejector pins slide constantly during production. Nitriding creates a hard wear-resistant surface that reduces friction and slows surface damage. This helps prevent sticking and uneven wear patterns in high-cycle molds.

A nitrided sleeve used in medical molding may maintain surface quality much longer than a conventionally hardened sleeve. That matters when cavity finish directly affects cosmetic appearance or sealing performance.

When through hardening is safer

Through hardening works better when the entire component must resist heavy mechanical load. Large punches and structural mold parts often need consistent hardness across the full section to avoid internal weakness.

Nitriding is not always the best choice. It works well for surface wear, but deeper impact loads may still damage softer internal material. In those cases, through hardening provides more reliable structural support.

Choosing between these methods should align with the mold's operating conditions and overall mold design guidelines. A process that performs well for guide sleeves may not work for impact-heavy punches.

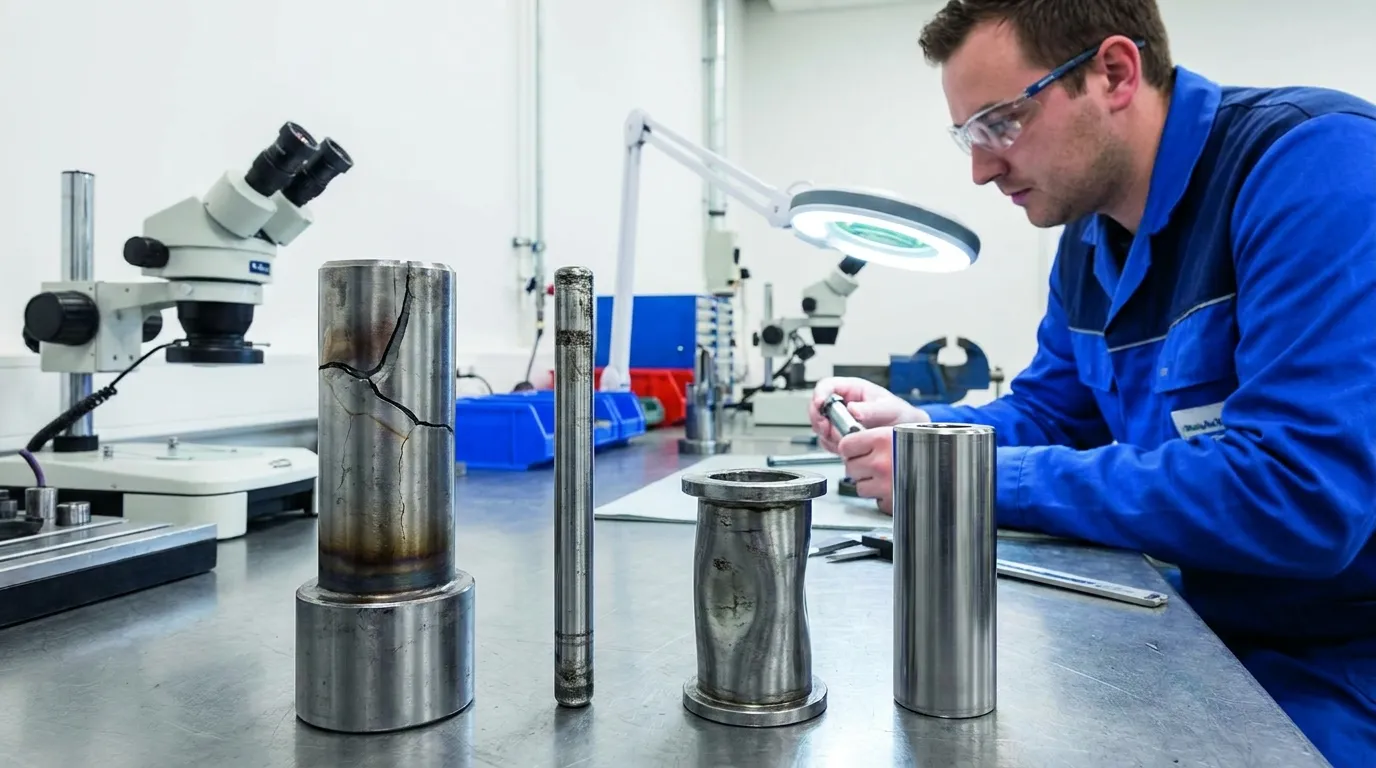

How does poor heat treatment shorten mold life?

Poor heat treatment can shorten mold life by causing internal stress, cracking, distortion, and unstable hardness. Many failures happen because the treatment process does not match the mold steel or operating conditions.

Heat treatment problems often appear slowly at first. A component may pass inspection but fail early during production because the internal structure isn't stable. Uneven cooling, excessive hardness, or poor stress relief are common causes.

One common failure involves over-hardened punches. In repeated stamping or molding cycles, the punch becomes brittle and develops surface cracks near high-stress corners. Once cracking starts, replacement usually becomes unavoidable.

Common signs of heat treatment failure

• Surface cracking around edges or corners
• Uneven wear patterns on moving parts
• Distortion affecting mold alignment
• Reduced polishing stability
• Premature galling or sticking

According to heat treatment process guidance, cold treatment and stress reduction can help improve dimensional stability. Preventing distortion is especially important for guide systems and precision cavities.

Many mold failures blamed on poor steel quality are actually caused by incorrect cooling or uncontrolled heat treatment parameters. A guide bushing that loses alignment after quenching can create flash defects across the entire mold system, increasing long-term mold replacement costs.

Heat Treatment Failure Checklist

Symptom	Likely Cause	Recommended Fix	Production Impact
Surface cracking	Excessive hardness	Lower hardness target	Unexpected downtime
Distortion	Uneven cooling	Controlled quenching	Alignment issues
Rapid wear	Low surface hardness	Surface hardening	Frequent maintenance
Galling	Poor surface finish	Nitriding or polishing	Ejection problems
Soft spots	Inconsistent heating	Process control review	Reduced tool life

How does heat treatment affect surface finish and maintenance?

Heat treatment directly affects friction, polishing stability, and long-term maintenance intervals. Poorly treated surfaces wear unevenly, lose polish quality faster, and create more production interruptions.

Mold surfaces with stable hardness usually maintain finish quality longer during high-cycle production. That becomes important in cosmetic molding applications where surface scratches or wear marks transfer directly onto the plastic part.

A properly nitrided sleeve may require fewer polishing cycles because the hardened surface resists abrasion better. Untreated or unstable surfaces often lose smoothness faster and increase drag during ejection.

Heat treatment also affects maintenance planning. Components with balanced hardness and toughness generally last longer between inspections, especially in molds running abrasive resins or continuous production schedules.

For molds where appearance matters, surface durability should align with the required mold surface quality. Heat treatment and polishing performance work together, especially in precision molding environments.

What should buyers ask before ordering heat-treated mold components?

Buyers should verify hardness range, steel grade, heat treatment method, and dimensional tolerance before ordering mold components. These details directly affect wear resistance, maintenance frequency, and production stability.

Many sourcing problems start because the treatment process isn't clearly specified. Two components may use the same steel grade but perform very differently depending on how they were hardened and tempered.

Before approving production, buyers should confirm:

• Target hardness range
• Heat treatment method used
• Surface treatment depth
• Dimensional tolerance after treatment
• Hardness inspection or certification availability

A supplier should also explain whether the component uses nitriding, through hardening, vacuum treatment, or another process. That information matters because different methods affect distortion risk and maintenance intervals differently.

For example, a high-cycle ejector system may need nitrided pins with controlled surface hardness, while a large structural punch may require deeper through hardening for impact resistance. Matching the process to the real production load helps prevent early failures and replacement costs.

Getting the Next Step Right

Heat treatment for mold parts affects much more than hardness. It influences wear resistance, alignment stability, maintenance frequency, and long-term production consistency. A component that looks acceptable on paper may still fail early if the treatment process doesn't match the operating conditions.

The safest approach is to evaluate each mold component separately. Ejector pins, guide bushings, punches, and sleeves all handle stress differently. Choosing the right heat treatment for mold applications helps reduce downtime, extend tool life, and maintain stable molding performance over high production volumes.

Frequently Asked Questions

What is heat treatment in mold manufacturing?

Heat treatment changes the mechanical properties of mold steel through controlled heating and cooling. It improves hardness, wear resistance, and dimensional stability so mold parts can handle repeated production cycles with less wear.

Does higher hardness always improve mold life?

Higher hardness does not always mean longer mold life. Excessive hardness can make mold components brittle and more likely to crack under impact or thermal stress during production.

What is nitriding in mold manufacturing?

Nitriding creates a hard wear-resistant surface layer by adding nitrogen to the steel surface. It's commonly used when mold parts need better wear resistance with minimal dimensional distortion.

Which mold parts usually require heat treatment?

High-wear mold components usually require heat treatment. Ejector pins, punches, guide posts, sleeves, and wear surfaces face repeated friction and pressure during molding cycles.

What causes mold cracking after heat treatment?

Improper heat treatment can create internal stress that leads to cracking. Excessive hardness, uneven cooling, poor material selection, and uncontrolled quenching are common causes.

How does heat treatment affect mold maintenance?

Correct heat treatment reduces maintenance requirements by improving wear resistance and dimensional stability. Mold components stay functional longer and need fewer replacements during high-cycle production.
