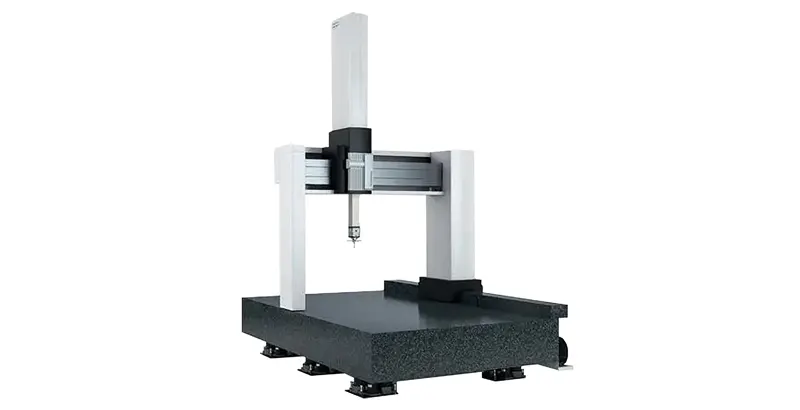

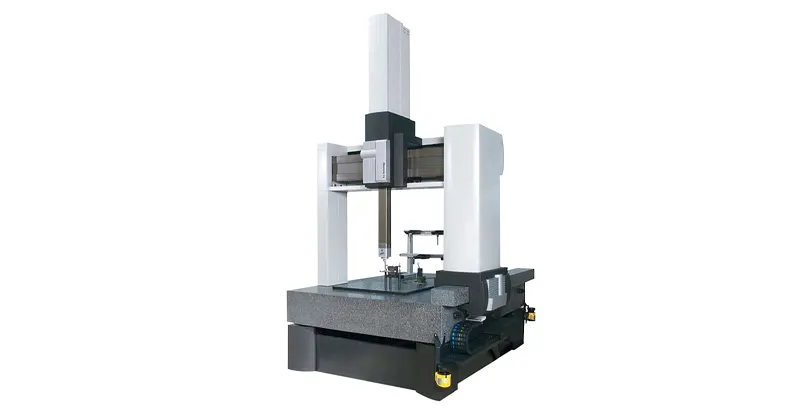

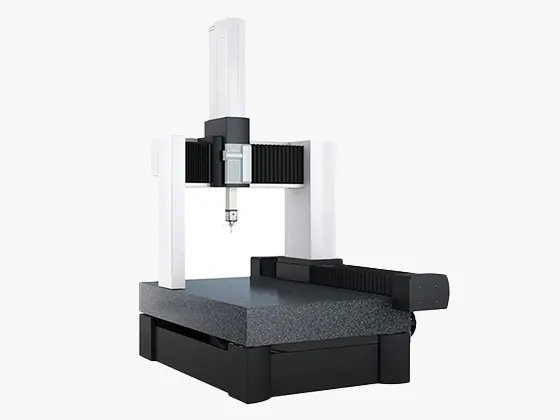

Bridge Type CMM Machine
Designed for high-precision industrial inspection, our advanced bridge type CMM machine delivers exceptional accuracy and stable performance for complex part measurement. Equipped with optional touch probe and laser scanning technology, it enables detailed 3D dimensional analysis with high repeatability. Ideal for automotive components and precision engineering applications, this system helps improve quality control efficiency, reduce errors, and streamline manufacturing workflows. Get a quote today!
- Length: E0
- Starting From: 1.2+L/350 μm
- Features: Stable Performance / Fast Transmission / Automatic Calibration / Accurate Measurement / Rapid Response / Real-time Monitoring
Product Description
Bridge Type CMM Machine
Our high-precision bridge type CMM machine is designed for modern manufacturing environments, delivering micron-level accuracy, stable performance, and efficient automated inspection. Built with a rigid bridge structure, it ensures excellent repeatability and reliable 3D dimensional measurement of complex parts. Widely used in automotive, aerospace, and precision engineering industries, this system enhances quality control efficiency and helps manufacturers maintain consistent production standards and a strong competitive advantage.
Key Features
- Stable Performance and Flexible Options: Featuring a modular design, it supports multiple probes to handle diverse measurement scenarios with ease.
- Lighter Weight, Faster Speed: The steel and aluminum construction provides excellent rigidity, while reducing weight for faster operation.
- Precise Measurement, Convenient Maintenance: Thoughtful design ensures accurate measurements and easy maintenance, making it highly reliable for consistent performance.
Measurement Range (in mm)
| X | Y | Z | |
| 09/12/8 | 900 | 1200 | 800 |
| 9/16/08 | 900 | 1600 | 800 |
| 12/18/08 | 1200 | 1800 | 800 |
| 12/24/08 | 1200 | 2400 | 800 |
| 12/18/10 | 1200 | 1800 | 1000 |
| 12/24/10 | 1200 | 2400 | 1000 |
| 12/30/10 | 1200 | 3000 | 1000 |
| 12/42/11 | 1200 | 4200 | 1000 |
| 16/24/10 | 1600 | 2400 | 1000 |
| 16/30/10 | 1600 | 3000 | 1000 |
| 16/42/10 | 1600 | 4200 | 1000 |
| 16/24/15 | 1600 | 2400 | 1500 |
| 16/30/15 | 1600 | 3000 | 1500 |
| 16/42/15 | 1600 | 4200 | 1500 |
| 20/24/10 | 2000 | 2400 | 1000 |
| 20/30/10 | 2000 | 3000 | 1000 |
| 20/42/10 | 2000 | 4200 | 1000 |
| 20/24/15 | 2000 | 2400 | 1500 |
| 20/30/15 | 2000 | 3000 | 1500 |
| 20/42/15 | 2000 | 4200 | 1500 |
Flexible Options & Design
The modular design allows the system to adapt to future measurement needs. ACCURA comes with pre-installed cables for contact and optical probes, as well as scanning modules for immediate multi-probe operation. The cable tray is made of steel and aluminum, combining rigidity with reduced weight, and the CARAT coating ensures stability in varying temperature conditions.
Temperature Range & Easy Maintenance
With advanced foam insulation technology, the system ensures excellent insulation performance, allowing operation in measurement labs within a temperature range of 20-26°C. The panels on the cable tray are easy to remove or reinstall, reducing downtime and improving machine uptime.
VAST Navigator & High Dynamics Package
VAST navigator technology enhances scanning measurement and calibration speed, improving overall measurement accuracy. The High Dynamics Package transforms the CMM into a high-speed measuring machine, with movement speeds of up to 800 mm/s. Safety measures, including a laser scanner, monitor the protected area to ensure safe operation by automatically halting the machine if personnel enter the zone.
