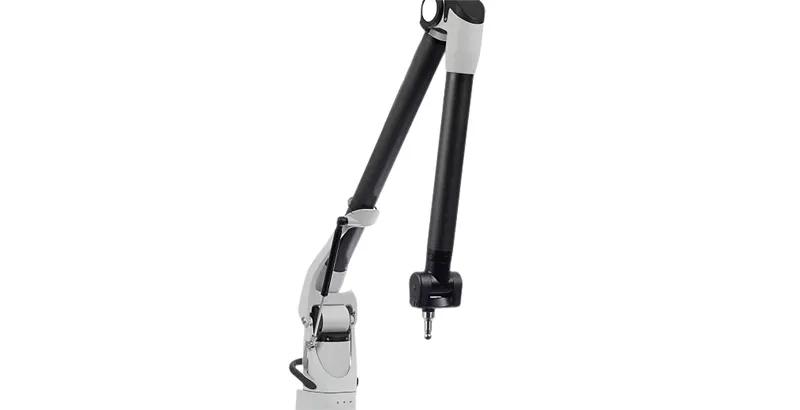

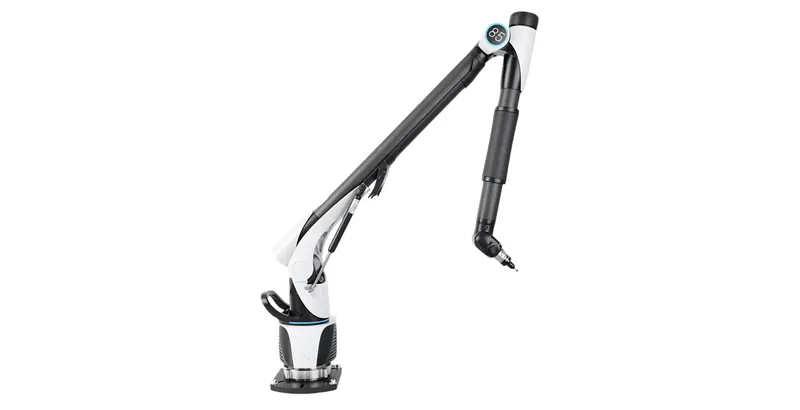

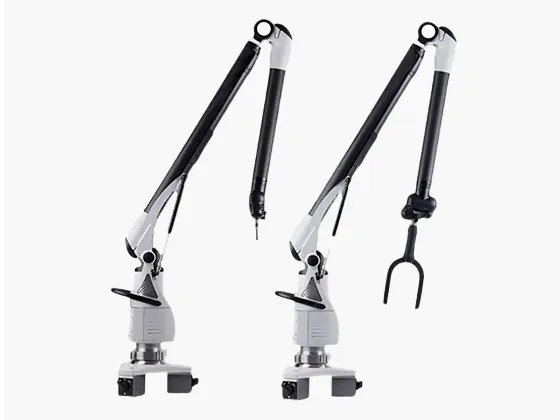

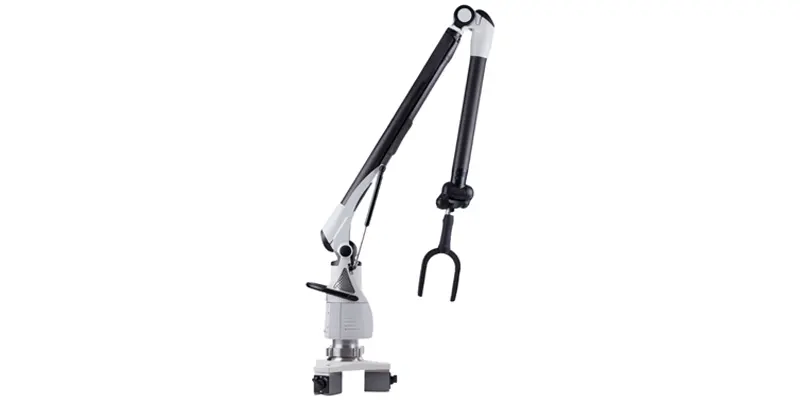

Coordinate Measuring Machine Portable
A portable coordinate measuring machine is a flexible 3D dimensional inspection device designed for on-site measurement of complex parts and assemblies. The portable coordinate measuring machine combines high-precision probing technology with lightweight structural design, allowing users to perform accurate dimensional analysis directly in production environments or field locations. This portable coordinate measuring machine is ideal for applications requiring fast deployment and reliable measurement without relying on fixed inspection rooms.
- Resolution: 0.02mm
- Transmission: USB 3.0
Product Description
The portable coordinate measuring machine significantly improves inspection efficiency by enabling real-time quality control outside traditional lab environments. Compared with fixed CMM systems, it reduces setup time, increases measurement flexibility, and supports rapid decision-making in manufacturing workflows. This system is widely used in aerospace maintenance, automotive assembly, heavy equipment manufacturing, and tooling inspection where mobility, speed, and high accuracy are critical for maintaining product quality standards.
Typical Applications
Our CMM solution is widely used across various industries for precise inspection, including:
- Gearboxes and Engine Components
- Turbine Blades and Vanes
- Complex Molds and Dies
- Cams and Precision Parts
Why Choose Our CMM
- High Accuracy for dimensional and geometric tolerance verification
- Portable Design brings the lab to the shop floor for on-site measurement
- Ideal for Reverse Engineering and quality control applications
Bring precision measurement directly to your workpiece with our advanced portable CMM solution. Contact us for more details or a customized quotation.
ABSOLUTE ARM 6-Axis Accuracy and Size Specification
| Model | E UNI 1 | P SIZE 2 | L DLA 3 | P FORM 4 | Weight | Max.reach | |
| 83 Series | 8312-6 | 0.024 mm | 0.010 mm | 0.021 mm | 0.018mm | 12.0kg | 1.49m |
| 8320-6 | 0.040 mm | 0.013 mm | 0.042 mm | 0.026 mm | 78kg | 2.23m | |
| 8325-6 | 0.046mm | 0.020 mm | 0.053 mm | 0.038 mm | 8.1 kg | 2.73 m | |
| 8330-6 | 0.067 mm | 0.029 mm | 0.071 mm | 0.054 mm | 8.4kg | 3.23m | |
| 8335-6 | 0.085 mm | 0.038 mm | 0.090 mm | 0.063 mm | 8.7 kg | 3.73 m | |
| 8340-6 | 0.100 mm | 0.046mm | 0.105 mm | 0.077 mm | 9.0kg | 4.23 m | |
| 8345-6 | 0.120 mm | 0.052 mm | 0.110 mm | 0.086 mm | 9.3 kg | 4.73m | |
| 85 Series | 8512-6 | 0.019 mm | 0.006 mm | 0.016 mm | 0.012 mm | 12.2kg | 1.49m |
| 8520-6 | 0.023 mm | 0.008 mm | 0.030 mm | 0.017 mm | 8.0kg | 2.23 m | |
| 8525-6 | 0.028 mm | 0.010 mm | 0.035 mm | 0.020 mm | 8.3kg | 2.73m | |
| 8530-6 | 0.042 mm | 0.015 mm | 0.053 mm | 0.030 mm | 8.6kg | 3.23 m | |
| 8535-6 | 0.055 mm | 0.020 mm | 0.069 mm | 0.040 mm | 8.9 kg | 3.73 m | |
| 8540-6 | 0.067 mm | 0.024 mm | 0.085 mm | 0.045 mm | 9.2kg | 4.23m | |
| 8545-6 | 0.080 mm | 0.028 mm | 0.102 mm | 0.050 mm | 9.5kg | 4.73 m | |
| 87 Series | 8725-6 | 0.026 mm | 0.009 mm | 0.032 mm | 0.018 mm | 8.3 kg | 2.73m |
| 8730-6 | 0.039 mm | 0.014 mm | 0.048 mm | 0.028 mm | 8.6kg | 3.23 m | |
| 8735-6 | 0.052 mm | 0.018 mm | 0.064 mm | 0.037 mm | 8.9 kg | 3.73 m | |
| 8740-6 | 0.063 mm | 0.022 mm | 0.079 mm | 0.041 mm | 9.2kg | 4.23m | |
| 8745-6 | 0.074 mm | 0.026 mm | 0.094 mm | 0.046 mm | 9.5kg | 4.73m |
Multi-Axis Measurement
Operates across X, Y, Z, and additional rotational axes, enabling the capture of intricate geometric shapes, lengths, and angular dimensions with precision.
Advanced Data Acquisition
Integrates multi-sensor technology for reliable and accurate data collection and processing, ensuring consistent results across complex measurements.
Superior Flexibility & Intelligent Sensing
The articulated arm design offers exceptional maneuverability for measuring hard-to-reach features on large or complex workpieces. Built-in temperature sensors compensate for measurement errors caused by temperature fluctuations, ensuring optimal testing performance in varied environments.
