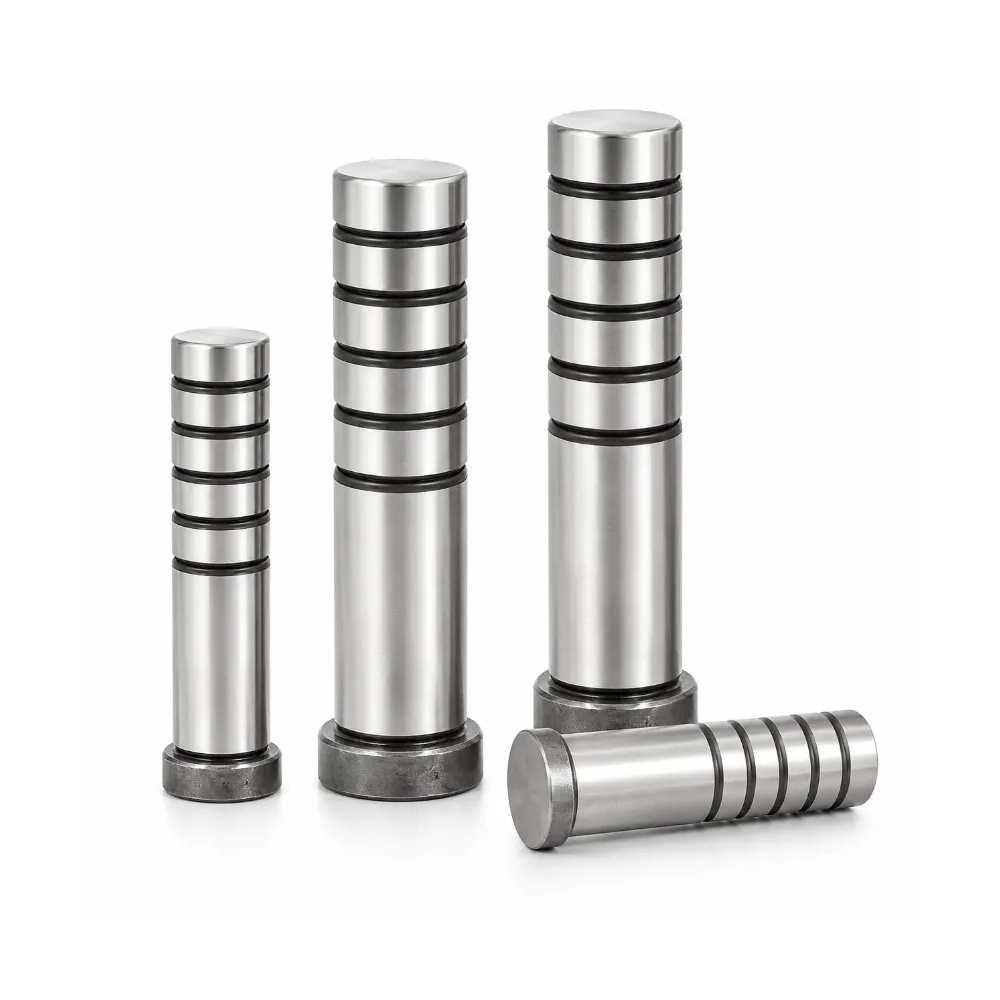

Cold Stamping Die Guide Pillar
- Withstands Continuous High Impact Loads: Performs reliably during repeated stamping cycles.
- Improves Precision In Punching Processes: Supports accurate die positioning and cutting.
- Optimizes Progressive Tooling System Performance: Enhances coordination across multi-stage operations.
- Built For Demanding Industrial Applications: Suitable for heavy-duty metal forming environments.
Product Description
Introduction
Cold Stamping Die Guide Pillar is a precision guiding component designed for cold stamping dies, progressive dies, punch tooling, and metal forming equipment. It plays a critical role in maintaining accurate alignment between upper and lower die sections during stamping operations. Precise guidance helps reduce die wear, improve punching accuracy, and ensure stable production of high-quality metal components.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Cold Stamping Die Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes. These manufacturing methods provide exceptional hardness, dimensional stability, wear resistance, and fatigue strength. The precision-ground surface allows smooth interaction with guide bushings, minimizing friction while maintaining reliable guiding performance during continuous stamping cycles.
Cold Stamping Die Guide Pillars are widely used in automotive stamping dies, metal sheet processing equipment, progressive die systems, hardware manufacturing, electronic component stamping molds, and industrial press tooling. Available in various diameters, lengths, and tolerance grades, they can satisfy both standard die set requirements and customized tooling projects. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Cold Stamping Die Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø12 mm – Ø120 mm |
| Length Range | 80 mm – 1500 mm |
| Guiding Type | Stamping Die Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Stamping Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Handles Repetitive Stamping Loads
Engineered to withstand continuous impact and pressure generated during stamping processes, ensuring dependable guidance throughout extended production runs.
Supports High Precision Punching Operations
Maintains accurate die alignment, helping achieve cleaner punching results, improved dimensional consistency, and reduced material waste.
Enhances Progressive Die Performance
Provides stable guidance for progressive die systems, supporting synchronized movement between tooling sections and improving production efficiency.
Suitable For Heavy Industrial Tooling
Designed for demanding metal forming applications where strength, durability, and reliable guiding performance are essential for long-term operation.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Cold Stamping Die Guide Pillar?
A Cold Stamping Die Guide Pillar is a precision guiding component used in stamping dies to maintain accurate alignment between upper and lower die sections.
What is the function of a Cold Stamping Die Guide Pillar?
Its primary function is to ensure precise die guidance, reduce alignment errors, improve punching accuracy, and support stable stamping operations.
What materials are commonly used for Cold Stamping Die Guide Pillars?
Cold Stamping Die Guide Pillars are commonly manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, wear resistance, and long service life.
Can Cold Stamping Die Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and installation configurations can be produced according to customer drawings and specifications.
Where are Cold Stamping Die Guide Pillars commonly used?
They are widely used in progressive dies, punch tooling systems, automotive stamping dies, metal forming equipment, hardware manufacturing, and industrial press applications.
