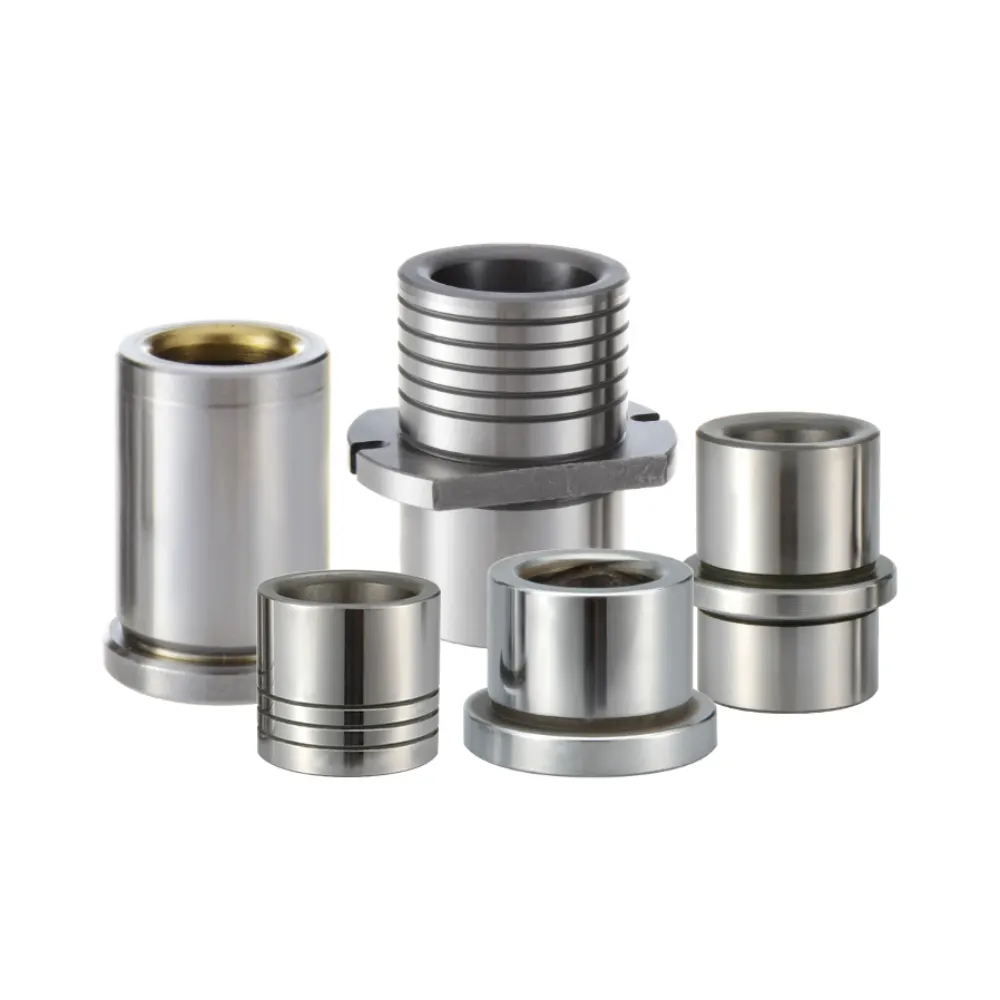

High Accuracy Guide Bush
High Accuracy Guide Bush is designed for precision mold systems requiring stable and repeatable alignment performance. It ensures controlled guiding between components during continuous mechanical operation, helping maintain consistent positioning accuracy. With refined manufacturing processes and reliable structural characteristics, it supports efficient mold function in demanding production environments. This component is widely applied where precision control, operational stability, and long-term durability are essential for maintaining high-quality industrial manufacturing performance.
Product Description
Introduction
High Accuracy Guide Bush is a precision-engineered component used in mold systems to ensure highly stable and accurate alignment between guide pillars and mold bases. It plays a key role in maintaining consistent positioning during repeated opening and closing cycles, helping reduce deviation and improve overall molding precision. This makes it suitable for applications where tight tolerance control and reliable guiding performance are essential.
The product is manufactured from high-quality bearing steel or alloy steel and undergoes advanced heat treatment combined with precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional control under continuous operating conditions. The finely machined inner surface ensures smooth contact and minimal friction variation, supporting consistent guiding behavior even in high-frequency production environments.
High Accuracy Guide Bush is widely used in precision injection molds, high-precision stamping dies, electronic component molds, semiconductor tooling systems, automotive molds, medical device equipment, and industrial automation machinery. It is particularly suitable for applications requiring strict dimensional accuracy and long-term operational stability. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific engineering requirements, making it a reliable solution for improving accuracy, reducing wear, and ensuring stable performance in modern manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | High Accuracy Guide Bush |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Tolerance Level | High Accuracy Standard |
| Lubrication | Oil groove / Self-lubricating optional |
| Size Range | Standard and Customized |
| Service Life | Long Cycle High Precision Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Tight Tolerance Control Performance
Advanced machining ensures extremely precise dimensional control, supporting accurate alignment in mold systems with minimal deviation during repeated operations.
Enhanced Dimensional Stability Integrity
Heat-treated structure maintains consistent geometry under continuous load, reducing deformation risk and ensuring reliable long-term guiding accuracy.
Optimized Surface Contact Quality
Precision grinding creates smooth inner surfaces, improving contact consistency and reducing irregular friction during high-frequency mold cycling.
Improved Assembly Fit Reliability
Engineered for stable installation, ensuring secure engagement with guide pillars and maintaining consistent positioning throughout operational cycles.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a High Accuracy Guide Bush used for?
It is used in mold systems to ensure precise alignment and stable guiding between moving components.
2. What makes it “high accuracy”?
It is manufactured with tight tolerances, precision grinding, and strict dimensional control standards.
3. Where is it commonly applied?
It is widely used in injection molds, stamping dies, electronic molds, and precision industrial equipment.
4. What materials are used?
Common materials include bearing steel, alloy steel, and hardened tool steel with heat treatment.
5. Can it be customized?
Yes, OEM customization is available for size, tolerance, structure, and material based on requirements.
