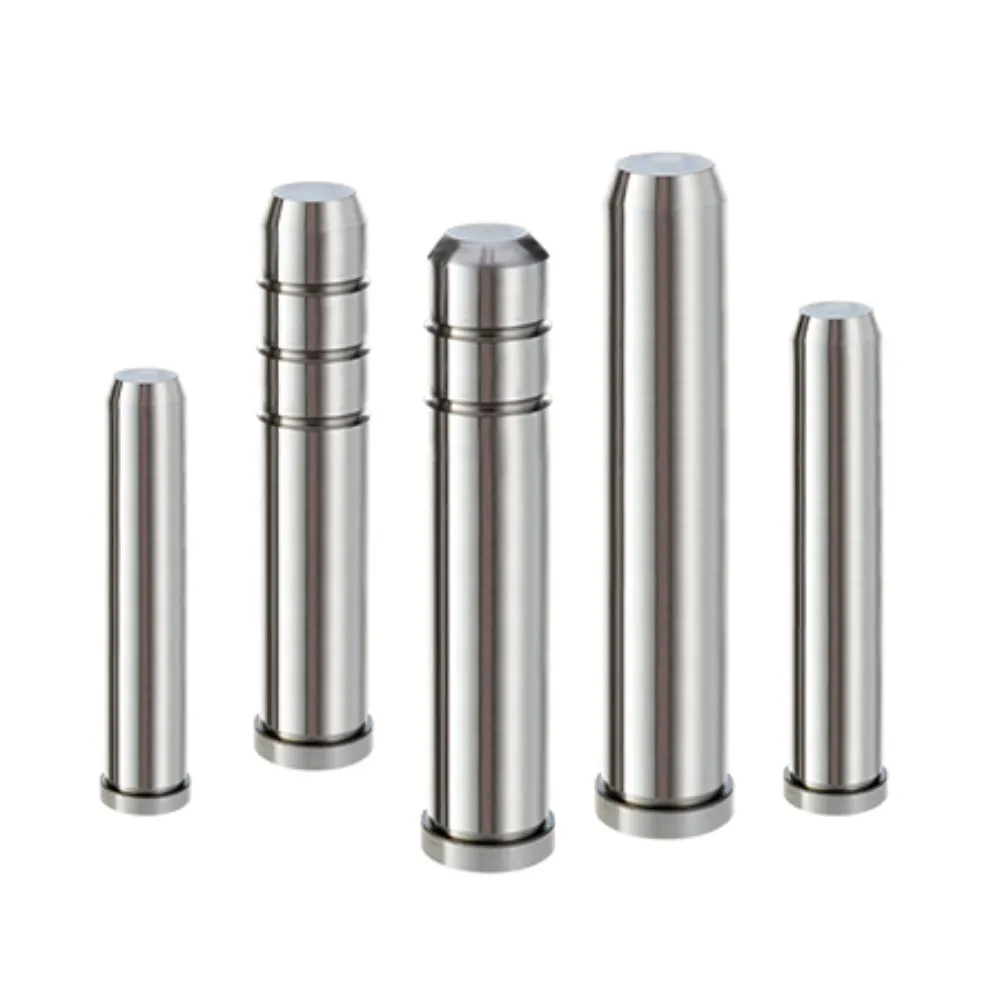

Injection Machine Guide Pillar
Injection Machine Guide Pillar is engineered to support stable alignment within injection molding machine structures, ensuring controlled movement and accurate positioning of key components. It enhances coordination between mechanical parts during operation, contributing to smoother workflow and consistent performance. With robust construction and dependable guiding capability, it is suitable for demanding industrial environments where precision, durability, and continuous operation are essential for maintaining efficient and reliable production processes.
- Accurate Machine Frame Alignment: ensures precise structural positioning
- Enhanced Operational Load Handling: supports heavy duty use
- Reduced Component Friction Resistance: improves motion efficiency
- Consistent Production Performance Output: maintains stable operation
Product Description
Introduction
Injection Machine Guide Pillar is a precision structural component used in injection molding machines to ensure accurate alignment and stable guiding between machine moving parts. It plays an important role in maintaining consistent positioning during mold opening and closing operations, helping improve overall machine coordination and reducing mechanical deviation. This results in smoother operation and higher production reliability in industrial molding environments.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel, and processed through heat treatment and precision grinding. These advanced manufacturing processes provide excellent surface hardness, strong wear resistance, and stable dimensional accuracy. The finely finished surface ensures smooth interaction with guide bushings and related components, reducing friction and supporting long-term stable performance under continuous operation and high-cycle working conditions.
Injection Machine Guide Pillar is widely used in injection molding machines, plastic processing equipment, automotive manufacturing systems, electronic product production lines, household appliance molds, and industrial automation systems. It is especially suitable for applications requiring high structural stability and precise alignment in machine-level operations. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements. With reliable performance and durable construction, it helps improve machine efficiency, extend service life, and ensure stable operation in modern industrial production systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Machine Guide Pillar |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight Machine Guide Type |
| Surface Finish | Precision Ground |
| Function Type | Machine Alignment Support |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Strong Machine Level Stability
Provides rigid structural support for injection molding machines, maintaining consistent alignment accuracy during long-term heavy-duty industrial operation cycles.
Improved Mechanical Motion Control
Ensures precise guiding between moving machine components, reducing vibration and maintaining smooth operational performance during continuous production.
High Wear Resistance Performance
Heat-treated steel material delivers excellent hardness, reducing surface wear and maintaining durability under repeated high-load working conditions.
Extended Service Life Reliability
Designed for long-term industrial use, ensuring stable performance and reducing maintenance frequency in injection molding machine systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an Injection Machine Guide Pillar used for?
It is used to ensure precise alignment and stable guidance of moving components within injection molding machines.
2. What is its main function?
Its main function is to maintain structural alignment and support smooth mechanical motion during machine operation cycles.
3. Where is it commonly applied?
It is widely used in injection molding machines, plastic processing equipment, automotive manufacturing systems, and industrial production lines.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for strength and durability.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, and material according to customer requirements.
