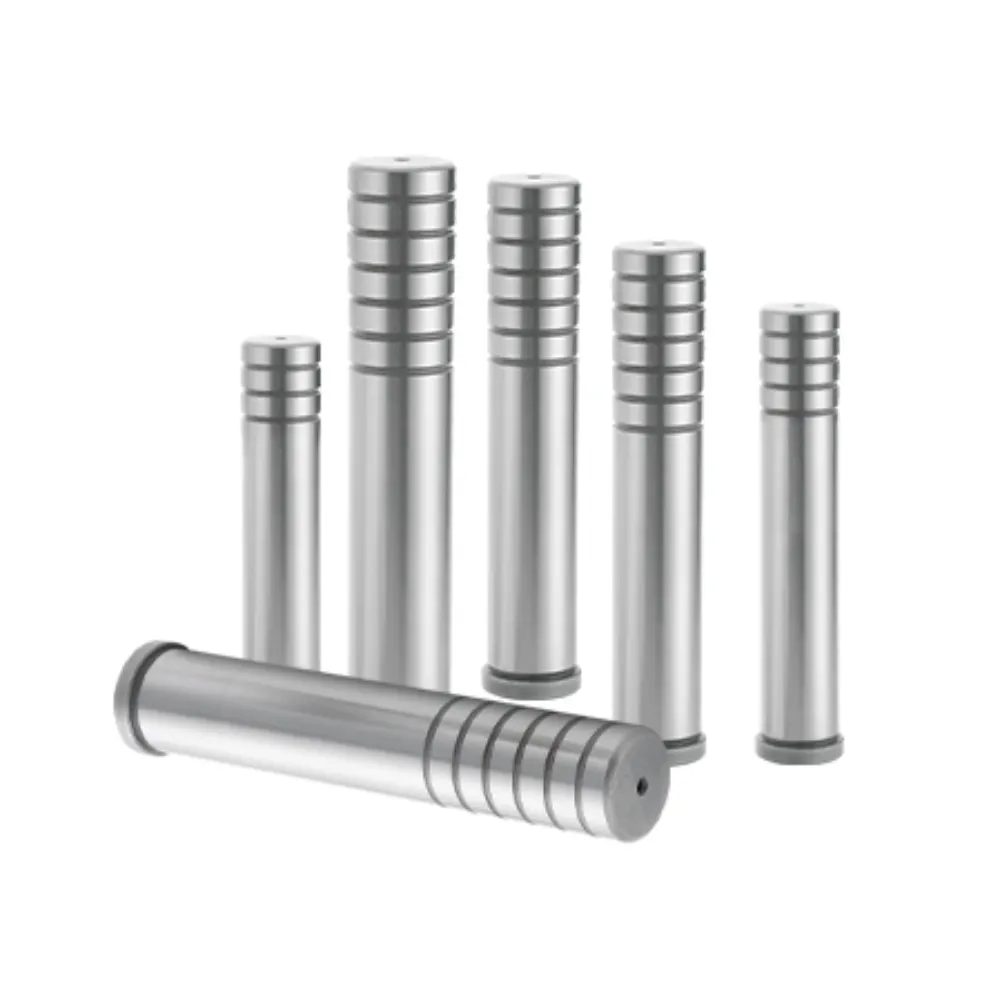

Lower Guide Pillar
The lower guide pillar is used in mold base assemblies to support precise alignment between moving mold sections. It plays an important role in ensuring stable guidance during injection molding cycles, helping maintain consistent positioning and smooth mechanical operation. Made from heat-treated steel, it offers reliable strength and resistance to deformation. Its finely machined surface reduces friction and supports steady performance, making it suitable for continuous industrial production environments requiring accurate mold movement control.
- Precision Base Alignment Accuracy Control: Maintains exact mold positioning stability
- High Load Bearing Structural Strength: Supports heavy mold operational pressure
- Optimized Sliding Contact Performance: Reduces friction during movement cycles
- Consistent Production Cycle Reliability: Ensures stable operation in long runs
Product Description
Introduction
The lower guide pillar is a precision component used in mold base systems to ensure accurate alignment between upper and lower mold halves. It is installed on the lower mold plate and works as part of the guiding system during injection molding operations. Its main function is to maintain stable positioning and smooth motion throughout repeated opening and closing cycles, helping improve overall mold accuracy and operational consistency.
Manufactured from high-quality hardened alloy steel with precision grinding, the lower guide pillar provides excellent strength, wear resistance, and dimensional stability. The finely finished surface reduces friction between moving components, ensuring smooth guiding performance even under continuous high-load production conditions. This enhances the reliability of mold operation and helps extend the service life of the entire tooling system.
The lower guide pillar can be customized in diameter, length, and tolerance to meet specific mold design requirements. It is compatible with international standards such as ISO, DIN, and JIS, and can also be produced according to OEM specifications. Widely used in automotive molds, plastic injection systems, and industrial tooling equipment, it delivers consistent alignment performance and dependable durability in modern manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Lower Guide Pillar |
| Type | Bottom / Lower Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Concentricity | ≤ 0.01 mm |
| Length Range | 100 mm – 1000 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM drawing |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Stable Mold Base Positioning
Ensures secure positioning of lower mold structure, maintaining consistent alignment accuracy during repeated opening and closing cycles in injection molding operations.
Enhanced Structural Load Support
Provides strong support for mold base components, distributing mechanical force evenly and reducing stress concentration during high-pressure production processes.
Improved Wear Resistance Performance
Hardened surface treatment minimizes abrasion, maintaining smooth guiding contact and extending service life under continuous industrial operating conditions.
Reliable Long Term Operation Stability
Maintains consistent guiding accuracy over extended production periods, ensuring dependable performance and reducing maintenance frequency in mold systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a lower guide pillar used for?
It is used in mold base systems to ensure precise alignment between upper and lower mold components during operation.
Q2: What materials are commonly used?
It is typically made from hardened steel such as GCr15, SUJ2, or 100Cr6, offering strength and wear resistance.
Q3: Can it be customized?
Yes, diameter, length, and tolerance can be customized according to different mold design requirements.
Q4: Is it compatible with standard mold systems?
Yes, it is compatible with ISO, DIN, and JIS standards and fits most injection mold base systems.
Q5: Where is it commonly used?
It is widely used in automotive molds, plastic injection molds, and industrial tooling systems requiring accurate alignment.
