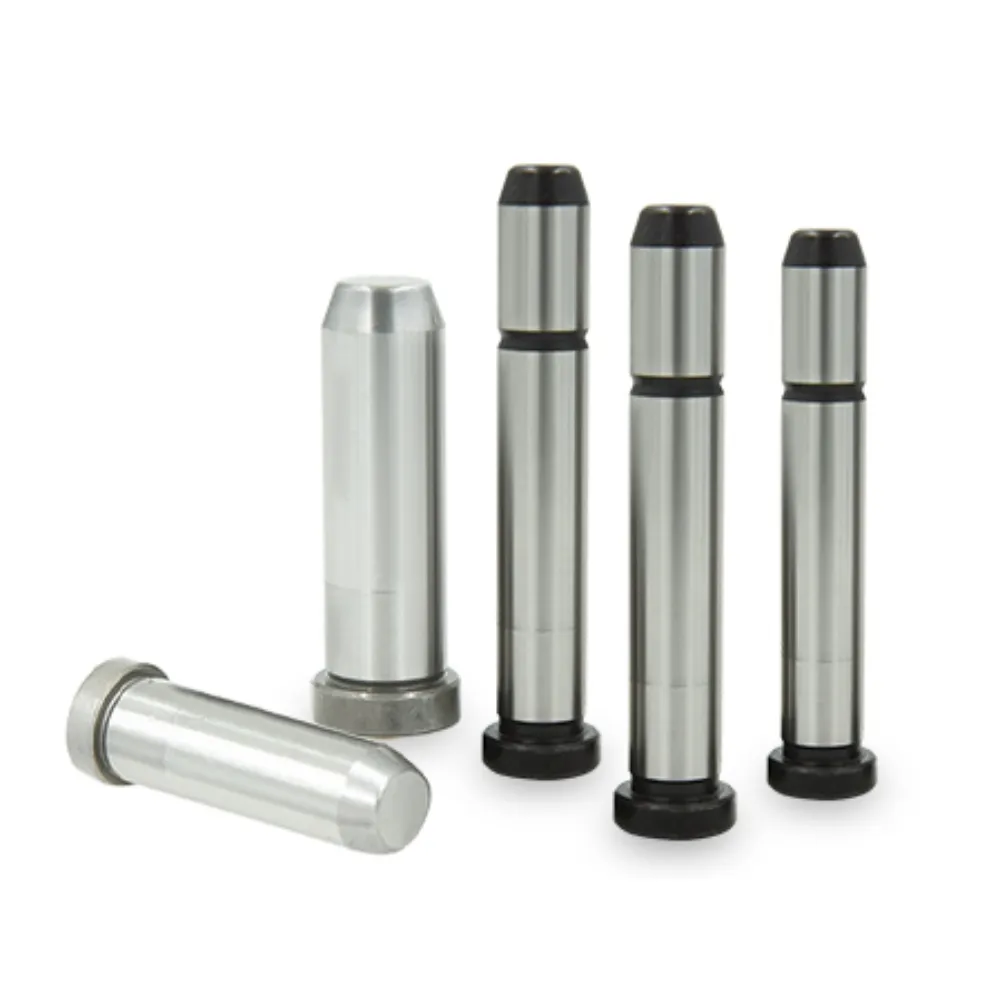

Mold Inclined Guide Pillar
Mold Inclined Guide Pillar is designed to provide controlled directional guidance for inclined and side-action movements in mold systems. It ensures that sliding components follow accurate motion paths during operation, supporting smooth coordination between mold parts. The structure helps maintain consistent mechanical behavior and stable performance throughout repeated cycles. With durable construction and precise guiding capability, it is suitable for applications requiring reliable angular movement control, operational consistency, and long-term mold system stability.
- Reliable Angle Movement Guidance: ensures controlled directional travel
- Improved Component Engagement Precision: enhances fitting accuracy
- Lower Mechanical Contact Stress: reduces surface wear
- Stable Multi Cycle Performance: supports continuous operation stability
Product Description
Introduction
Mold Inclined Guide Pillar is a specialized mold component designed to guide and control inclined movement within complex mold systems. It is commonly used in side-core pulling mechanisms and sliding mold structures where directional motion is required. By providing accurate angular guidance, it helps mold components move along predetermined paths, ensuring smooth operation and precise positioning throughout the molding cycle.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and processed through advanced heat treatment and precision grinding. These manufacturing processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy. The precisely machined inclined surface allows smooth interaction with corresponding sliding components, reducing friction and ensuring reliable movement control under continuous production conditions.
Mold Inclined Guide Pillar is widely used in injection molds, automotive component molds, electronic product housings, household appliance molds, packaging molds, and industrial tooling systems. It is particularly suitable for applications requiring side-action movement and coordinated mechanical guidance. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be manufactured according to custom drawings and technical specifications. With its ability to improve movement accuracy, reduce operational wear, and support stable long-term performance, Mold Inclined Guide Pillar provides an efficient solution for modern mold designs requiring precise angular motion control and dependable side-core pulling functionality.
Specifications
| Item | Description |
|---|---|
| Product Name | Mold Inclined Guide Pillar |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Inclined / Angular Guide Type |
| Surface Finish | Precision Ground |
| Function Type | Side Action Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Accurate Inclined Motion Control
Ensures precise guiding along angled paths, maintaining consistent movement direction for side-core mechanisms in complex mold structures during repeated operations.
Enhanced Side Core Stability
Provides reliable support for sliding components, reducing vibration and improving stability during mold opening and closing cycles in production.
Reduced Friction Contact Impact
Precision-ground surfaces minimize resistance between moving parts, ensuring smoother motion and lowering wear in long-term continuous operation environments.
Improved Structural Coordination Efficiency
Supports synchronized movement between mold components, enhancing overall operational coordination and improving efficiency in multi-action mold systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Mold Inclined Guide Pillar used for?
It is used in mold systems to guide inclined or angled movements, especially in side-core pulling and sliding mechanisms.
2. What is its main function?
Its main function is to ensure precise directional control of moving mold components along an inclined path.
3. Where is it commonly applied?
It is widely used in injection molds, automotive parts molds, electronic housings, and industrial tooling systems.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for strength and durability.
5. Can it be customized?
Yes, OEM customization is available, including angle design, size, tolerance, and material based on customer requirements.
