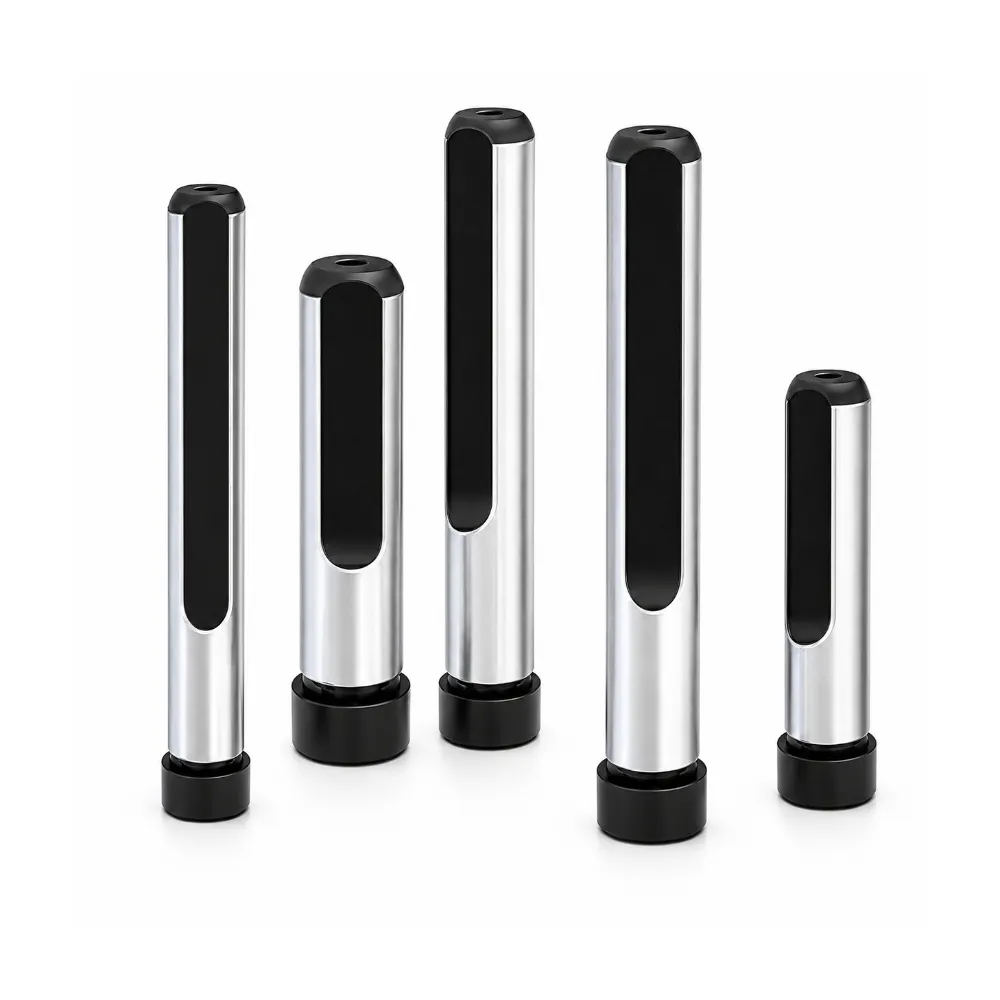

Mold Slide Angle Pin
Mold Slide Angle Pin is engineered for mold slider mechanisms that require precise angled motion and dependable side-core operation. It transfers mold opening force into lateral slider movement, enabling the formation of complex product features that cannot be achieved through straight mold action. Produced from heat-treated bearing steel and precision-finished for smooth performance, it delivers excellent durability and wear resistance. This component is commonly used in automotive, electronic, medical, and industrial injection molds requiring accurate slider guidance.
- Controls Precise Slider Travel Paths: Ensures accurate movement throughout mold cycles.
- Facilitates Smooth Undercut Part Release: Assists removal of complex molded products.
- Withstands Repeated Impact And Friction: Maintains durability under demanding operating conditions.
- Supports Customized Angle Configurations Easily: Adapts to unique mold design requirements.
Product Description
Introduction
Mold Slide Angle Pin is a precision mold component specifically designed for slide core systems, side-action mechanisms, and complex injection mold structures. It converts the vertical opening movement of the mold into controlled horizontal slide motion, enabling the formation of undercuts, side holes, grooves, and other intricate product features. Accurate slide guidance helps improve molding precision, enhance component coordination, and ensure reliable mold performance during continuous production.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Mold Slide Angle Pin undergoes precision machining, heat treatment, grinding, and polishing processes. These manufacturing procedures provide excellent hardness, dimensional stability, wear resistance, and mechanical strength. The precision-ground surface helps reduce friction between moving mold components while maintaining smooth and accurate slide travel under demanding operating conditions.
Mold Slide Angle Pins are widely used in automotive plastic molds, consumer electronics molds, medical device molds, packaging molds, household appliance molds, and industrial injection tooling systems. Available in various diameters, lengths, and angle configurations, they are suitable for both standard mold structures and custom engineering projects. OEM and ODM services are available according to customer drawings and technical requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Mold Slide Angle Pin |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø60 mm |
| Length Range | 80 mm – 1000 mm |
| Working Angle | 10°–35° Standard |
| Guiding Type | Slide Core Guidance |
| Surface Treatment | Hard Chrome Optional |
| Straightness | ≤0.005 mm/100 mm |
| Installation Type | Mold Mounted |
| Precision Grade | High Precision |
| Operating Condition | Continuous Mold Operation |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Accurate Slider Travel Control
Guides the slider along a controlled path, helping reduce motion errors and ensuring stable side-core action during mold operation.
Better Undercut Release Performance
Supports smooth withdrawal of slide cores, making it easier to release molded parts with side holes, grooves, and undercut structures.
Strong Resistance To Impact
Hardened steel construction helps withstand repeated contact, pressure, and sliding force in demanding injection mold production environments.
Custom Angle Design Available
Different angles, lengths, diameters, and mounting styles can be produced according to mold drawings and specific tooling requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Mold Slide Angle Pin?
A Mold Slide Angle Pin is a precision mold component used to drive and guide slider mechanisms in injection molds through angled movement.
What is the function of a Mold Slide Angle Pin?
Its main function is to convert mold opening motion into lateral slider movement, allowing side cores to form undercuts and complex product features.
What materials are commonly used for Mold Slide Angle Pins?
Mold Slide Angle Pins are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, wear resistance, and long service life.
Can Mold Slide Angle Pins be customized?
Yes. Custom diameters, lengths, working angles, surface treatments, and special specifications can be manufactured according to customer drawings.
Where are Mold Slide Angle Pins commonly used?
They are widely used in automotive plastic molds, consumer electronics molds, medical device molds, packaging molds, household appliance molds, and industrial injection molding systems.
