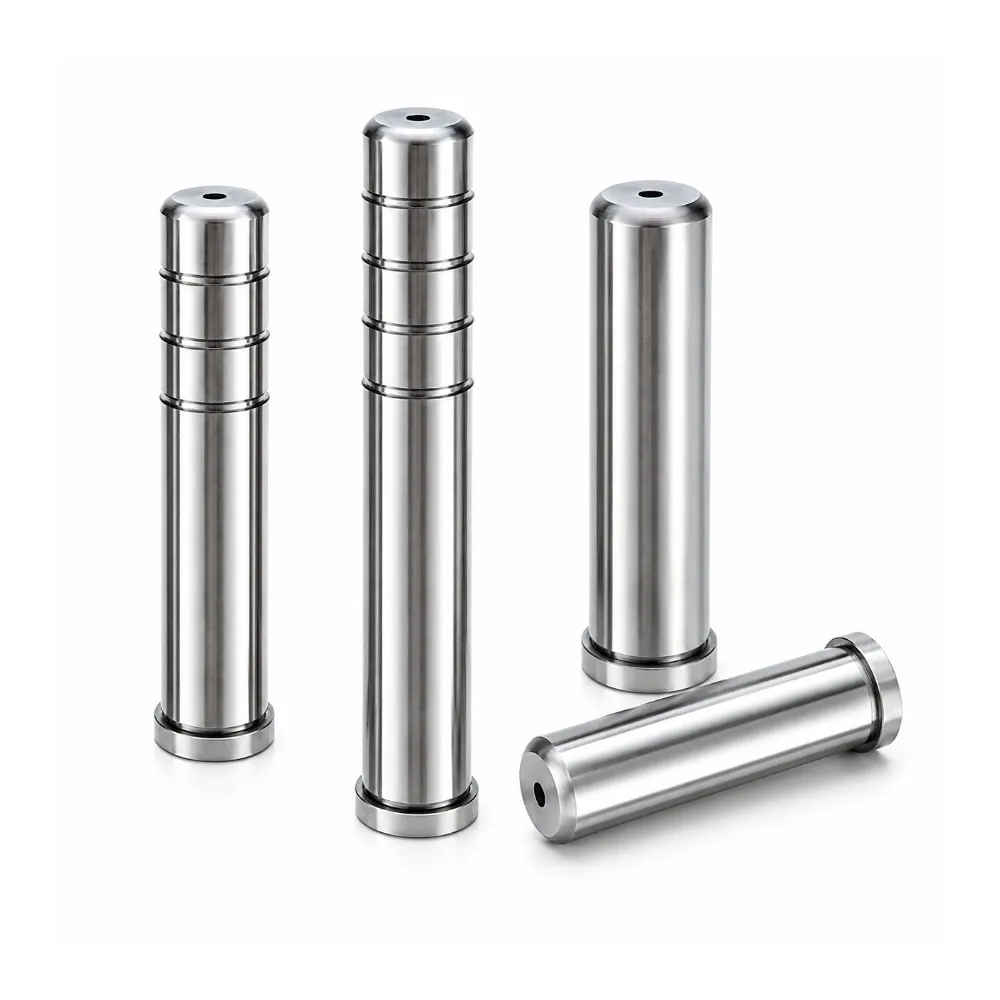

Precision Guide Pillar
Precision Guide Pillar is designed for applications that demand exceptional guiding accuracy and repeatable positioning performance. Produced through advanced machining and fine grinding processes, it delivers outstanding dimensional consistency and smooth movement characteristics. The hardened bearing steel construction provides excellent durability, rigidity, and resistance to wear under continuous operation.
- Delivers Micron Level Positioning Accuracy: Supports highly precise alignment requirements.
- Designed For Advanced Industrial Equipment: Suitable for sophisticated manufacturing systems.
- Minimizes Motion Errors During Operation: Improves repeatability and movement consistency.
- Promotes Stable Product Quality Output: Helps maintain uniform manufacturing results.
Product Description
Introduction
Precision Guide Pillar is a high-accuracy guiding component engineered for molds, dies, automation equipment, precision machinery, and industrial tooling systems. It is designed to provide superior alignment and smooth linear guidance between moving components, ensuring consistent positioning accuracy throughout production processes. High-precision guidance helps improve product quality, reduce mechanical wear, and enhance equipment performance in demanding applications.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Precision Guide Pillar undergoes precision machining, vacuum heat treatment, fine grinding, and polishing processes. These advanced manufacturing methods ensure exceptional dimensional accuracy, hardness, wear resistance, and long-term stability. The precision-ground surface works seamlessly with matching guide bushings to deliver smooth movement and highly reliable guiding performance.
Precision Guide Pillars are widely used in injection molds, stamping dies, medical equipment, semiconductor machinery, automation systems, electronic manufacturing equipment, and high-precision industrial tooling. Available in multiple diameters, lengths, and tolerance grades, they can meet the requirements of both standard applications and customized engineering projects. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Precision Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø120 mm |
| Length Range | 50 mm – 1500 mm |
| Guiding Type | Precision Linear Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | Ultra High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Achieves Micron-Level Alignment Accuracy
Manufactured with strict tolerance control, helping deliver exceptional positioning precision for applications requiring highly accurate component movement and alignment.
Ideal For Advanced Manufacturing Systems
Suitable for precision automation equipment, semiconductor machinery, and high-performance tooling where consistent guidance is critical to productivity.
Reduces Mechanical Deviation Effectively
Maintains controlled motion between moving assemblies, helping minimize alignment errors and improve operational repeatability during production.
Supports Consistent Quality Output
Reliable guiding performance contributes to stable manufacturing processes, helping maintain product uniformity and reduce process variation over time.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Precision Guide Pillar?
A Precision Guide Pillar is a high-accuracy guiding component designed to provide precise alignment and smooth movement in molds, machinery, and automation systems.
What are the advantages of a Precision Guide Pillar?
It offers superior positioning accuracy, reduced movement deviation, excellent wear resistance, smooth operation, and long-term dimensional stability.
What materials are commonly used for Precision Guide Pillars?
Precision Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, strength, and durability.
Can Precision Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, precision grades, and mounting configurations can be produced according to customer specifications.
Where are Precision Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, automation equipment, semiconductor machinery, medical devices, precision tooling systems, and industrial manufacturing equipment.
