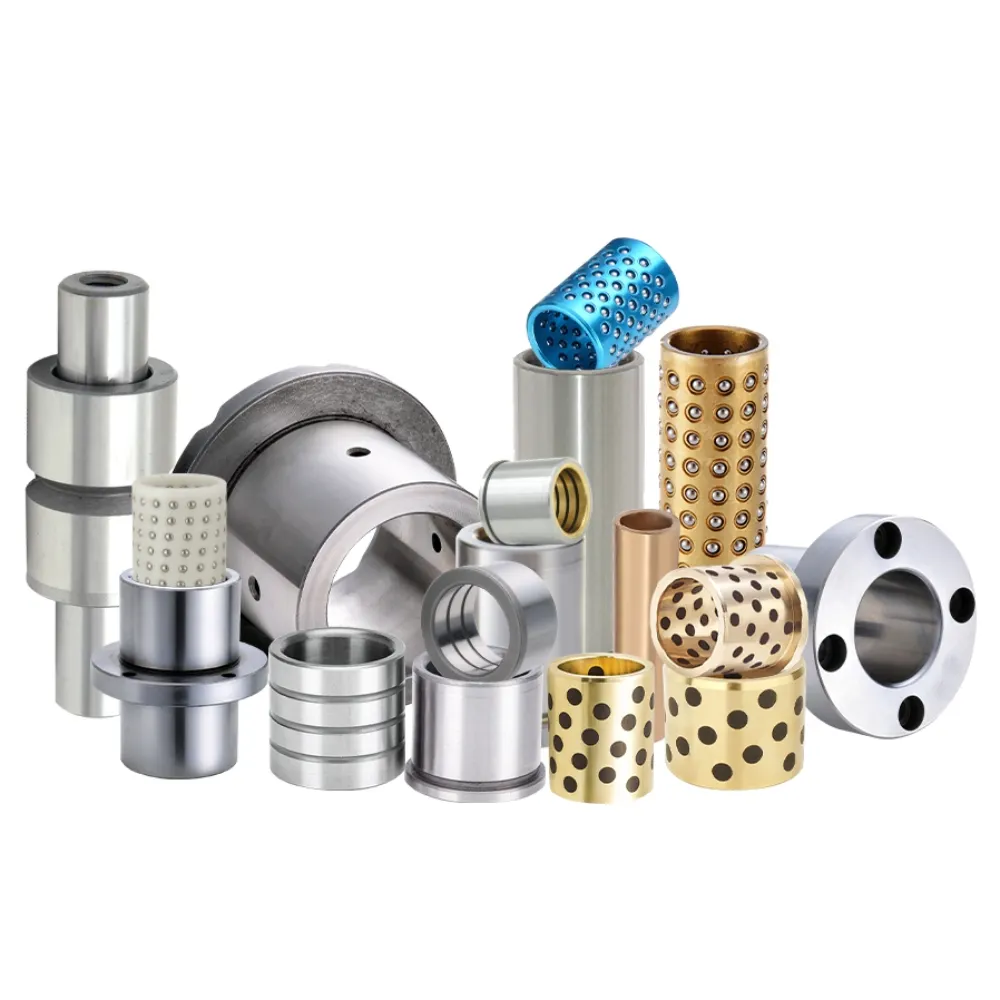

Punch Die Guide Bushing
Punch Die Guide Bushing is designed to provide stable and precise support for guiding components in punch die systems. It ensures controlled alignment during repeated high-speed punching cycles, helping maintain smooth operational movement and consistent forming accuracy. With reliable structural performance and durable guiding characteristics, it contributes to efficient production output. This component is suitable for industrial applications requiring stable performance, accurate alignment control, and long-term operational reliability under continuous metal processing conditions.
- Precise Die Position Control: ensures accurate alignment stability
- Improved Structural Impact Resistance: withstands heavy press load
- Lower Friction Surface Interaction: reduces wear generation
- Consistent Production Cycle Stability: supports continuous operation
Product Description
Introduction
Punch Die Guide Bushing is a precision component used in punch die systems to ensure accurate alignment and stable guiding of guide pillars during high-speed punching operations. It helps maintain correct die positioning, reduces mechanical deviation, and improves overall forming stability. This contributes to consistent performance and higher efficiency in continuous metal stamping and punching production environments.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and processed through heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under repeated impact loads. The finely finished inner bore ensures smooth sliding contact with guide pillars, reducing friction and maintaining reliable guiding performance during continuous high-frequency punching cycles.
Punch Die Guide Bushing is widely used in metal punching dies, progressive die systems, high-speed punch press equipment, automotive stamping components, electrical connector manufacturing, appliance metal forming, and industrial press machinery. It is especially suitable for applications requiring precise alignment, high durability, and stable long-term performance. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a reliable solution for improving die accuracy, reducing wear, and ensuring consistent operation in modern metal forming industries.
Specifications
| Item | Description |
|---|---|
| Product Name | Punch Die Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Die Alignment & Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Stable Punching Alignment Support
Maintains accurate positioning of guide pillars during punching operations, ensuring consistent die alignment under repetitive high-speed press cycles.
Enhanced Impact Load Durability
Heat-treated material structure withstands strong punching forces, improving resistance to deformation and maintaining stable performance in heavy-duty applications.
Reduced Sliding Resistance Behavior
Precision-ground inner surface minimizes contact friction, enabling smoother movement and improving overall operational efficiency in punch die systems.
Improved High Frequency Performance
Designed for continuous punching operations, ensuring stable guiding function and consistent accuracy during long production runs.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Punch Die Guide Bushing used for?
It is used in punch die systems to ensure accurate alignment and smooth guiding of die components during punching operations.
2. What is its main function?
Its main function is to maintain stable positioning between guide pillars and die structures, reducing misalignment and improving accuracy.
3. Where is it commonly applied?
It is widely used in metal punching dies, stamping systems, automotive parts manufacturing, and industrial press equipment.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for durability and strength.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, structure, and material based on customer requirements.
