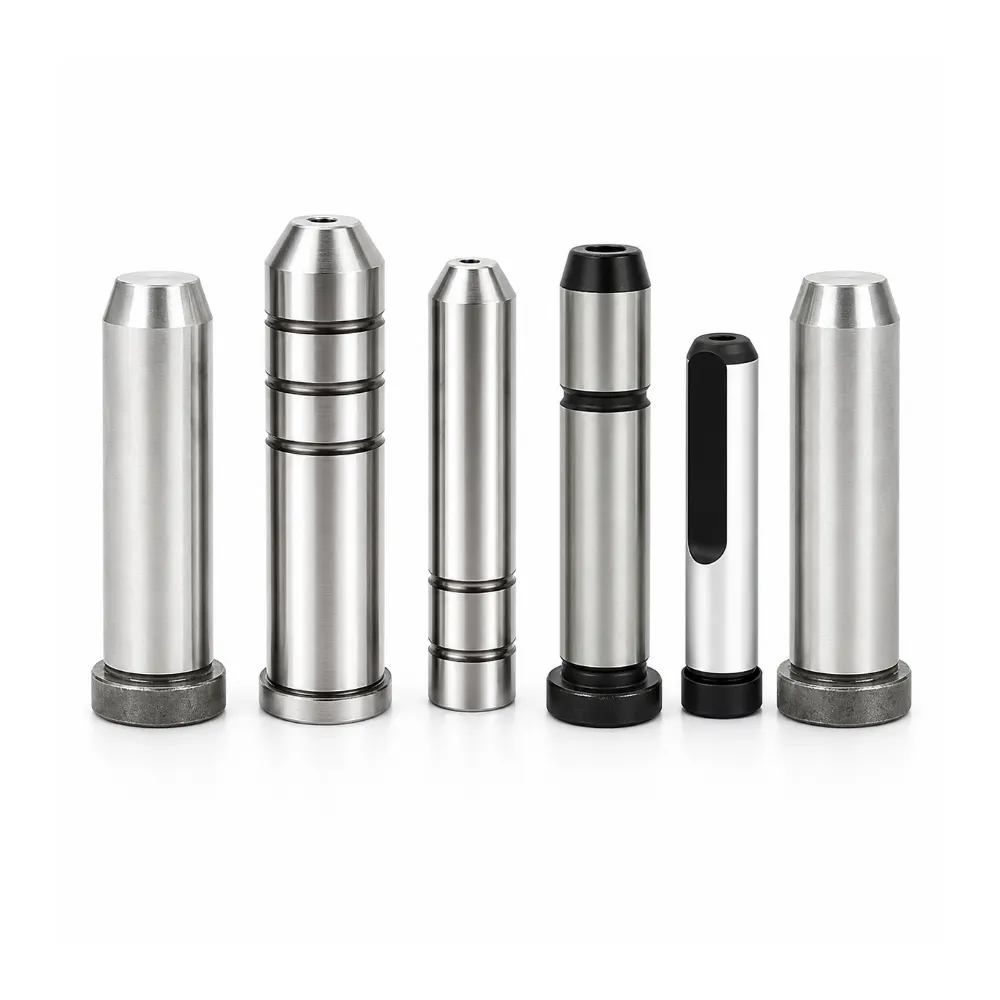

Slide Core Angle Pin
- Creates Complex Side Mold Features: Enables molding of intricate side details.
- Maintains Consistent Slider Movement Accuracy: Supports repeatable positioning throughout production.
- Minimizes Wear Between Moving Parts: Helps extend component service life.
- Suitable For Multi Cavity Mold Systems: Supports synchronized operation across mold cavities.
Product Description
Introduction
Slide Core Angle Pin is a precision mold component designed to drive and guide slider mechanisms in injection molds. It converts the opening movement of the mold into controlled lateral motion, allowing side cores and sliders to move accurately during the molding process. This function enables the production of complex plastic parts with undercuts, side holes, grooves, and other special structural features that cannot be formed through straight mold opening actions.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Slide Core Angle Pin undergoes precision machining, heat treatment, grinding, and polishing processes. These advanced manufacturing techniques provide excellent hardness, wear resistance, dimensional stability, and fatigue strength. The precision-ground surface minimizes friction and ensures smooth interaction between the angle pin and slider assembly, contributing to reliable and long-lasting mold performance.
Slide Core Angle Pins are widely used in automotive molds, consumer electronics molds, medical device molds, household appliance molds, packaging molds, and industrial injection tooling systems. Available in multiple diameters, lengths, and angle configurations, they are suitable for both standard mold structures and customized engineering solutions. OEM and ODM manufacturing services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Slide Core Angle Pin |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø60 mm |
| Length Range | 80 mm – 1000 mm |
| Working Angle | 10°–35° Standard |
| Guiding Type | Slide Core Drive Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Mold Mounted |
| Precision Grade | High Precision |
| Operating Condition | Continuous Mold Operation |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enables Complex Side Feature Molding
Allows molds to create side openings, clips, and undercut features that would otherwise require additional manufacturing operations.
Improves Slider Positioning Consistency
Provides dependable directional control for slider assemblies, helping maintain accurate movement paths throughout repeated molding cycles.
Reduces Wear On Mating Components
Smooth contact surfaces help minimize abrasion between moving parts, supporting longer service life and reduced maintenance frequency.
Suitable For Multi-Cavity Mold Designs
Performs effectively in complex mold systems where synchronized slider action is essential for maintaining product quality and efficiency.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Slide Core Angle Pin?
A Slide Core Angle Pin is a precision mold component used to drive slider mechanisms and side cores in injection molds through angled movement.
What is the function of a Slide Core Angle Pin?
Its primary function is to convert mold opening motion into lateral slider movement, enabling the molding of undercuts, side holes, and complex features.
What materials are commonly used for Slide Core Angle Pins?
Slide Core Angle Pins are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, excellent wear resistance, and long service life.
Can Slide Core Angle Pins be customized?
Yes. Custom diameters, lengths, working angles, surface treatments, and special specifications can be produced according to customer drawings and mold requirements.
Where are Slide Core Angle Pins commonly used?
They are widely used in automotive molds, consumer electronics molds, medical device molds, household appliance molds, packaging molds, and industrial injection molding systems.
