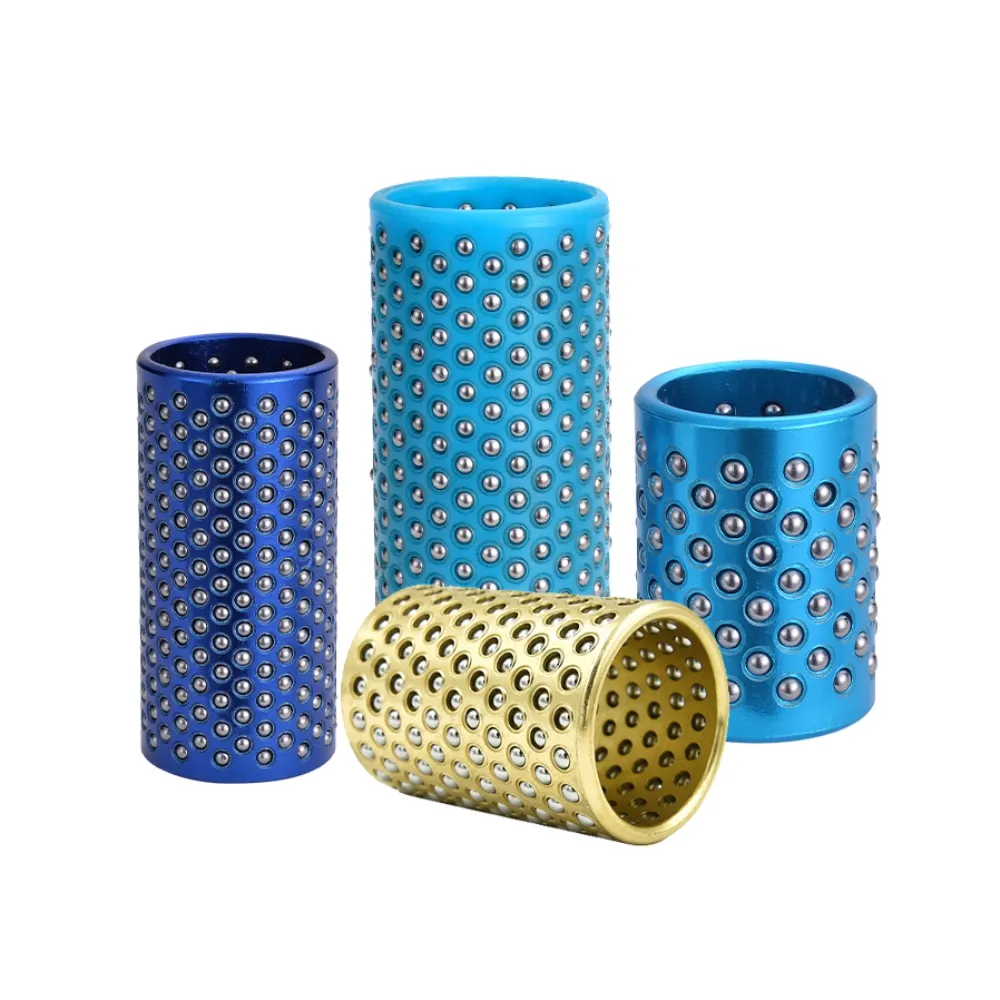

Steel Ball Guide Bushing
Steel Ball Guide Bushing is engineered for precision mold systems requiring smooth and efficient motion control. It utilizes a rolling steel ball mechanism to support accurate guiding between moving components, ensuring stable alignment during continuous operation cycles. This design improves motion responsiveness, reduces mechanical resistance, and enhances overall system efficiency. With reliable structural performance and consistent operation characteristics, it is suitable for high-precision industrial environments where stable guidance and long-term durability are essential.
Product Description
Introduction
Steel Ball Guide Bushing is a precision mold component designed to provide smooth, accurate, and low-resistance guidance between mold parts. It uses hardened steel balls arranged in a precision cage to replace traditional sliding contact, enabling rolling motion during mold operation. This structure ensures stable alignment and improved motion efficiency during repeated high-speed production cycles, helping maintain consistent positioning accuracy.
The product is manufactured from high-quality bearing steel and processed through advanced heat treatment and precision grinding techniques. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous operation. The internal ball circulation system ensures smooth rolling contact, reducing friction, heat buildup, and mechanical resistance, which enhances operational stability in demanding industrial environments.
Steel Ball Guide Bushing is widely used in precision injection molds, high-speed stamping dies, progressive die systems, automotive molds, electronic component molds, semiconductor equipment, and automated machinery. It is especially suitable for applications requiring high speed, low friction, and precise guiding performance. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific technical requirements. This makes it a reliable solution for improving production efficiency, reducing maintenance needs, and ensuring long-term operational accuracy.
Specifications
| Item | Description |
|---|---|
| Product Name | Steel Ball Guide Bushing |
| Material | SUJ2, GCr15, Bearing Steel |
| Structure Type | Ball Cage Type |
| Hardness | HRC 58–62 |
| Surface Finish | Precision Grinding |
| Motion Type | Rolling Contact System |
| Friction Level | Ultra Low |
| Accuracy Grade | High Precision Standard |
| Service Life | Long Cycle Operation |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhanced Rolling Motion Efficiency
Steel ball circulation system enables smoother movement, reducing resistance and improving operational efficiency during high-speed mold cycling conditions.
Superior Positioning Stability Control
Precision ball arrangement maintains consistent alignment paths, ensuring reliable guiding accuracy across repeated mechanical operation cycles.
Reduced Mechanical Contact Stress
Rolling contact design minimizes direct surface friction, decreasing wear intensity and improving component durability under continuous load environments.
Optimized High Speed Performance
Engineered for rapid movement systems, maintaining stable function and consistent guiding behavior in high-frequency industrial production applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Steel Ball Guide Bushing used for?
It is used in mold systems to provide high-precision, low-friction rolling guidance between moving components.
2. What is the main advantage of the steel ball design?
The rolling steel ball structure reduces friction and improves movement speed and accuracy.
3. Where is it commonly applied?
It is widely used in injection molds, stamping dies, progressive dies, and high-speed automation equipment.
4. What materials are used in production?
It is typically made from bearing steel with heat treatment and precision grinding for durability.
5. Can it be customized?
Yes, OEM customization is available, including size, structure, and material based on drawings or requirements.
