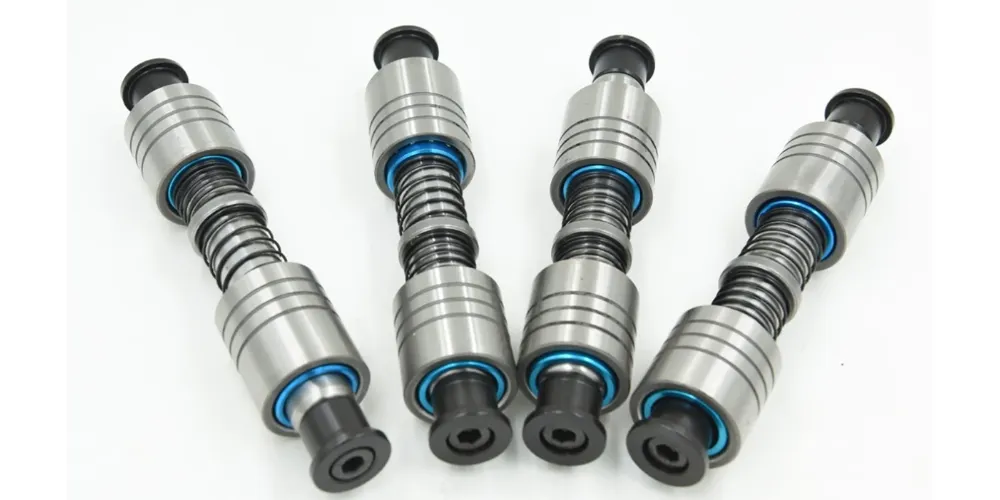

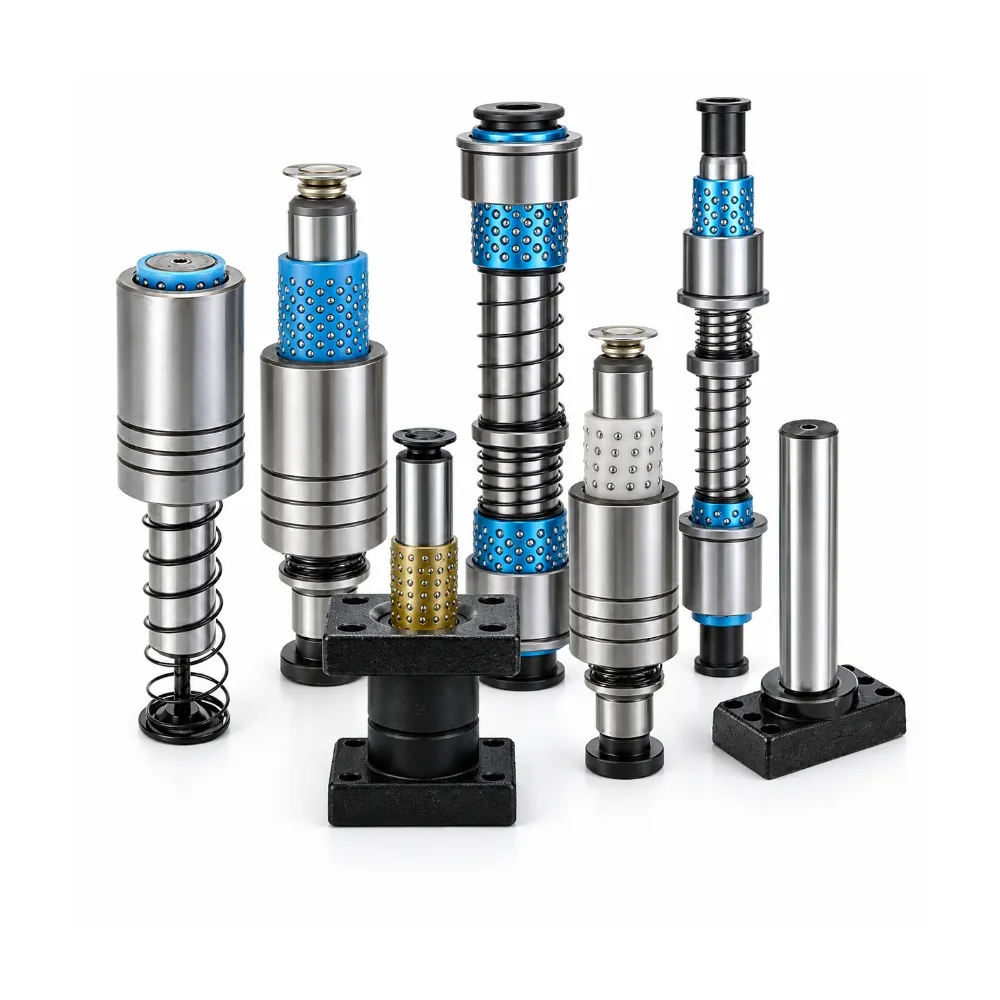

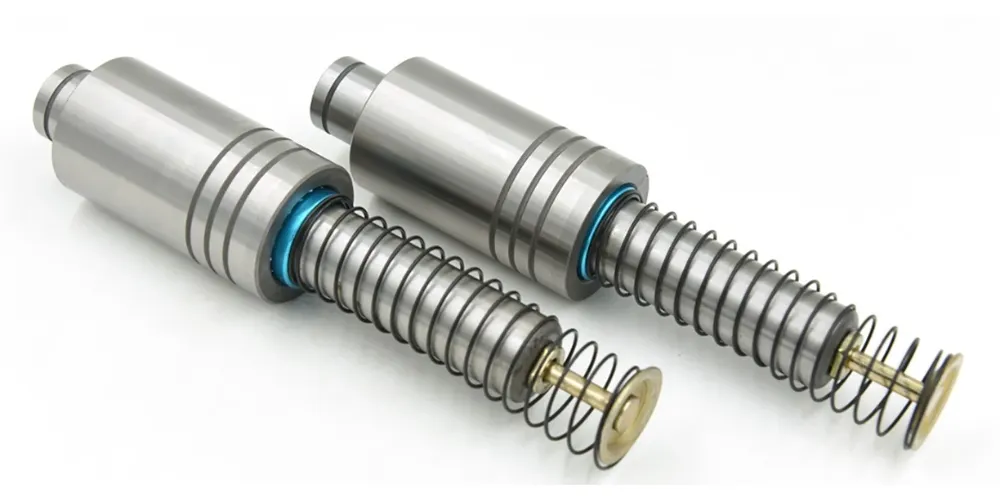

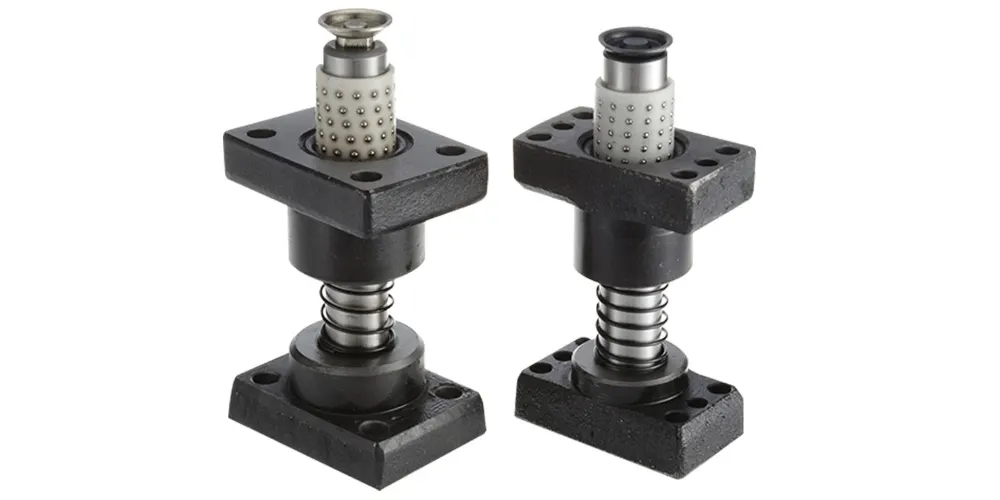

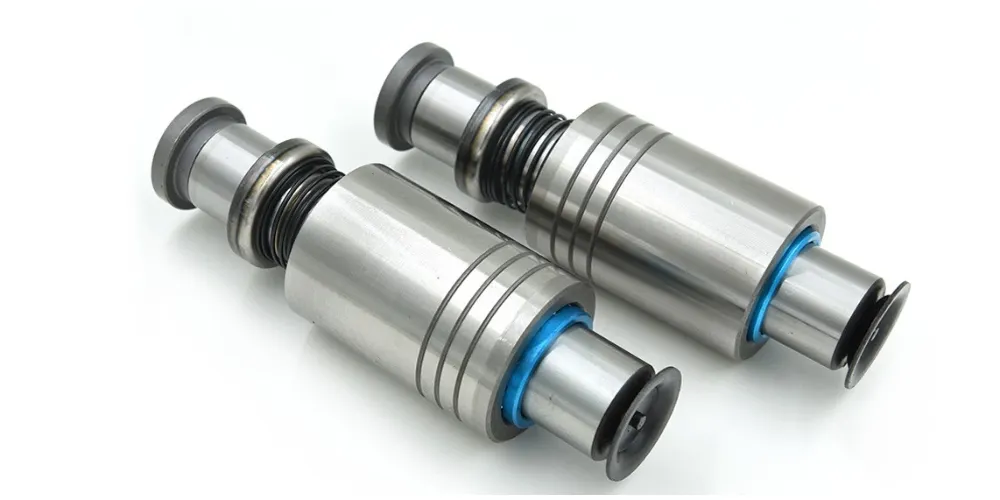

Ball Bearing Outer Guide Pillar
Ball Bearing Outer Guide Pillar is developed for external mold guiding systems requiring exceptional movement accuracy and low rolling resistance. Utilizing a ball-bearing mechanism, it enables precise guidance while reducing mechanical contact between moving parts. Manufactured from hardened bearing steel and finished through advanced precision grinding processes, it delivers excellent durability, stability, and operational reliability. This component is widely used in high-speed molds, progressive dies, automated production equipment, and precision tooling systems where smooth external guidance is essential.
- Enhances External Guidance Efficiency: Delivers smoother and more controlled movement.
- Supports High Speed Tooling Operations: Maintains accuracy during rapid production.
- Extends Component Service Life: Reduces wear through rolling contact.
- Improves Mold Motion Smoothness: Promotes stable opening and closing.
Product Description
Introduction
Ball Bearing Outer Guide Pillar is a high-precision mold guiding component designed for external guide systems in injection molds, stamping dies, progressive dies, and mold bases. Equipped with a rolling ball-bearing guidance mechanism, it provides exceptionally smooth movement, precise alignment, and stable operation throughout repeated production cycles. The rolling contact design significantly reduces friction compared with conventional sliding guide systems, helping improve mold accuracy and service life.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Ball Bearing Outer Guide Pillar undergoes precision turning, heat treatment, grinding, and polishing processes. These advanced manufacturing methods ensure superior hardness, dimensional stability, wear resistance, and fatigue strength. The precision-finished guiding surface works seamlessly with ball-bearing guide bushings to deliver highly accurate movement and long-term operational reliability.
Ball Bearing Outer Guide Pillars are widely used in high-speed stamping dies, automotive molds, precision injection molds, electronic component molds, progressive tooling systems, and industrial automation equipment. Available in various diameters, lengths, and precision grades, they can satisfy both standard mold base requirements and customized engineering projects. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Ball Bearing Outer Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø16 mm – Ø120 mm |
| Length Range | 100 mm – 1800 mm |
| Guiding Type | Ball Bearing Rolling Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | External Mold Mounting |
| Precision Grade | Ultra High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Maximizes External Guiding Efficiency
The rolling ball structure enables highly efficient guidance, reducing resistance and supporting smooth movement in demanding mold applications.
Performs Well In High-Speed Tooling
Designed for rapid production environments where accurate guiding and stable motion are required throughout continuous manufacturing cycles.
Extends Guide System Service Life
Reduced friction and balanced load distribution help minimize component deterioration and support longer maintenance intervals.
Improves Mold Opening And Closing Smoothness
Provides controlled external guidance that contributes to stable mold movement and enhanced operational consistency during production.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Ball Bearing Outer Guide Pillar?
A Ball Bearing Outer Guide Pillar is a precision external guiding component that uses rolling ball bearings to provide smooth movement and accurate mold alignment.
What are the advantages of a Ball Bearing Outer Guide Pillar?
It offers low friction, high positioning accuracy, smooth motion, reduced wear, and extended service life compared with conventional guide systems.
What materials are commonly used for Ball Bearing Outer Guide Pillars?
Ball Bearing Outer Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, durability, and wear resistance.
Can Ball Bearing Outer Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting configurations, and surface treatments can be produced according to customer drawings and technical requirements.
Where are Ball Bearing Outer Guide Pillars commonly used?
They are widely used in injection molds, high-speed stamping dies, progressive dies, automotive molds, electronic component molds, mold bases, and industrial automation equipment.
