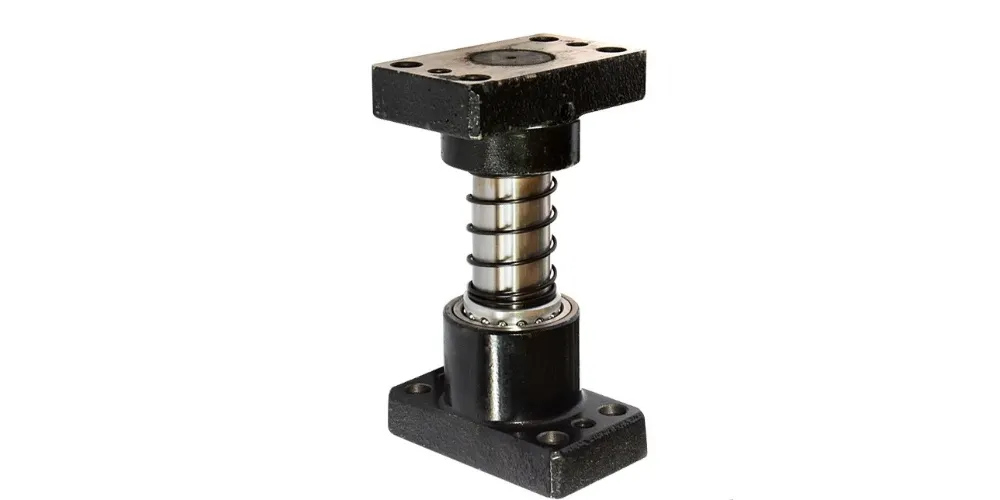

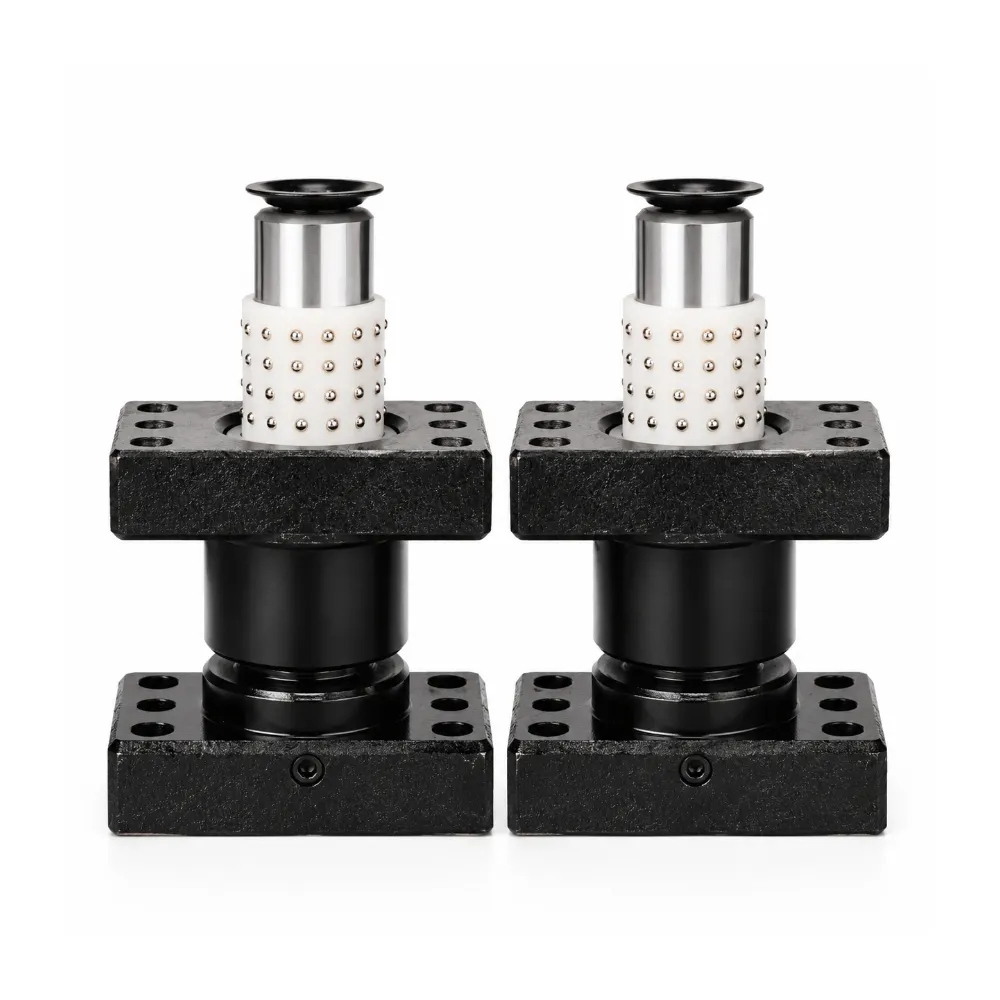

Independent Ball Guide Pillar
Independent Ball Guide Pillar is designed for precision mold systems requiring smooth motion control and reliable alignment accuracy. Its embedded ball-bearing mechanism enables consistent rolling movement with extremely low resistance, improving operational efficiency in high-cycle production environments. Manufactured from hardened bearing steel with precision grinding and heat treatment, it delivers strong wear resistance and dimensional stability. Commonly applied in injection molds, stamping dies, and automation equipment, it ensures stable guiding performance and long-term tooling reliability under demanding industrial conditions.
- Ensures Smooth Ball Motion: Maintains stable rolling guidance performance.
- Boosts High-Speed Operation Efficiency: Supports fast and stable cycling.
- Reduces Friction Energy Loss: Improves mechanical efficiency in use.
- Balances Applied Load Distribution: Enhances structural durability and stability.
Product Description
Introduction
Independent Ball Guide Pillar is a precision mold guiding component designed with an integrated ball-bearing structure to achieve ultra-smooth motion, low friction, and high positioning accuracy. It is widely used in injection molds, stamping dies, precision tooling systems, and automated machinery where stable alignment and repeatable performance are essential. The independent ball design ensures reduced sliding resistance and improved guiding efficiency during continuous operation.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Independent Ball Guide Pillar undergoes precision machining, vacuum heat treatment, cylindrical grinding, and super-finishing processes. These advanced manufacturing techniques provide excellent hardness, wear resistance, dimensional stability, and fatigue strength. The embedded ball system ensures consistent rolling contact, minimizing surface wear and maintaining long-term guiding precision even under high-load working conditions.
Independent Ball Guide Pillars are widely used in progressive dies, high-speed stamping tools, injection mold systems, automotive component molds, electronic connector molds, and precision industrial equipment. Available in various diameters, lengths, and tolerance grades, they can meet both standard mold requirements and customized engineering designs. OEM and ODM manufacturing services are available based on customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Independent Ball Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Independent Ball Bearing Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision / Ultra Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality

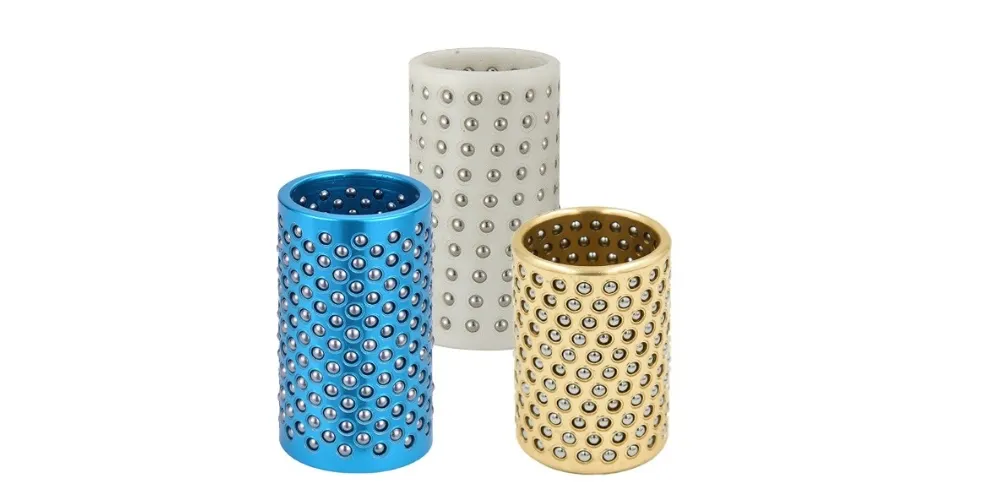

Optimized Ball Recirculation Performance
The independent ball structure ensures consistent rolling contact, improving motion stability and reducing resistance fluctuations during continuous mold operation cycles.
Enhances High-Speed Movement Efficiency
Designed for fast-cycle tooling systems, it maintains smooth guiding behavior even under rapid motion conditions, supporting efficient production output.
Reduces Energy Loss During Operation
Low-friction rolling contact minimizes energy consumption and improves mechanical efficiency across long-term industrial use.
Improves Structural Load Distribution
Ball-based guidance evenly distributes force across contact surfaces, reducing localized stress and enhancing overall component durability.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is an Independent Ball Guide Pillar?
An Independent Ball Guide Pillar is a precision mold guiding component that uses a built-in ball bearing system to provide smooth, low-friction, and accurate alignment in tooling applications.
What are the advantages of an Independent Ball Guide Pillar?
It offers extremely low friction, stable rolling movement, high positioning accuracy, reduced wear, and improved efficiency in high-speed mold operations.
What materials are used for Independent Ball Guide Pillars?
They are typically made from SUJ2 or GCr15 bearing steel, providing high hardness, excellent wear resistance, and long service life.
Can Independent Ball Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting methods, surface treatments, and precision grades can be produced according to customer requirements.
Where are Independent Ball Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, progressive tooling systems, high-speed automation equipment, automotive molds, and precision electronic manufacturing systems.
